Product Details

Compatibility

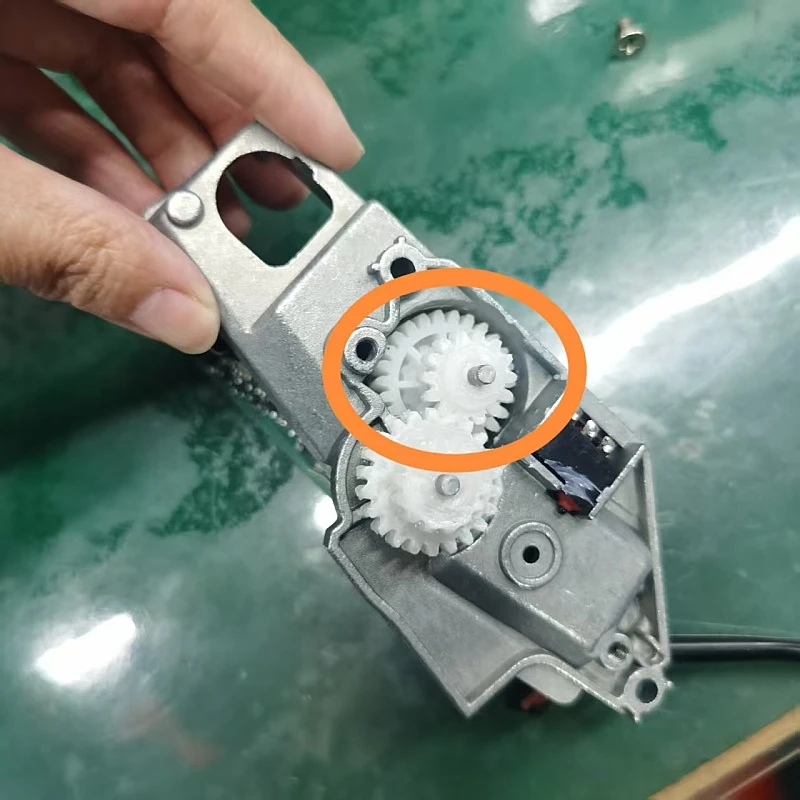

Compatible with all Volkswagen Group vehicles equipped with factory-installed flip-type reversing camera systems. Directly replaces worn or damaged gears in OEM camera housings.

Key Features & Benefits

01.

1:1 OEM Precision

Exact replication of original gear dimensions, tooth profile, and mounting interfaces
Seamless integration with existing camera motor assemblies
Eliminates operational mismatches in gear meshing and torque transmission

02.

High-Performance POM Material

Polyoxymethylene (POM) construction ensures superior wear resistance and low friction
Enhanced dimensional stability under temperature fluctuations (-30°C to +85°C)
Anti-static properties reduce debris adhesion for consistent performance

03.

Quick-Replacement Design

Pre-lubricated bushings for tool-free installation in existing gear trains
Color-coded alignment markers for precise positional matching
Compatible with standard VW/Audi trim removal tools

04.

Customization Capabilities

Optional reinforced POM+GF30 composite for high-stress applications
Custom tooth counts available to match regional vehicle specifications
Surface treatments (e.g., PTFE coating) upon request for extreme environments

Technical Specifications

Material	Premium-grade POM
Tooth Profile	Involute 20° pressure angle
Operating Load	≤15N·m (continuous duty)
Temperature Tolerance	-30°C to +90°C
