Product Details
|

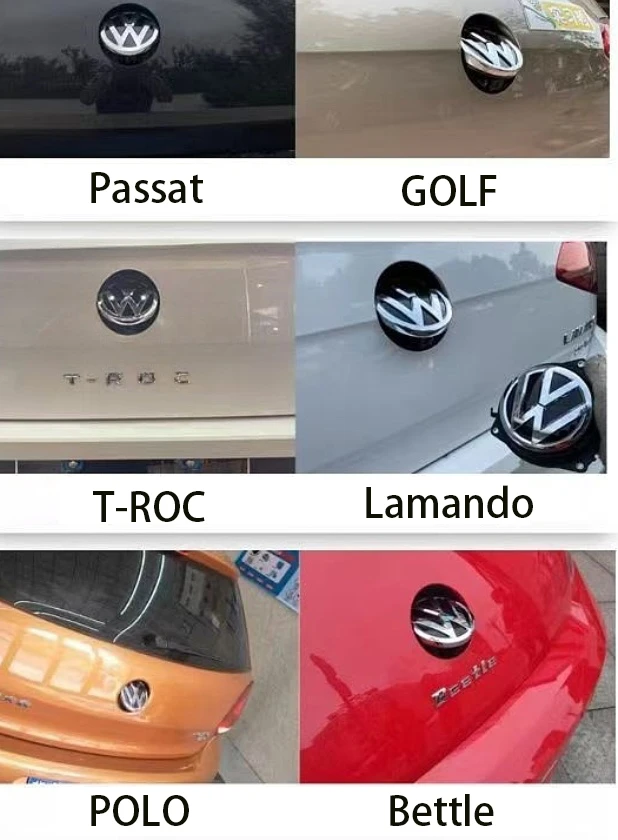

Compatible Vehicles |
|
| Volkswagen Group Models | |
|
Golf 6/R/GTI/Spurtsvan |
Golf 7/7.5 All Series |
|
Golf Mk7/7.5/GTI/R |
Golf 8 All Series |
|
Passat B6/B7/B8 (2021+) |
Variant B6/B7/B8 |
|
CC/Arteon B6/B7/B8 (2021+) |
Lamando & Lamando 2021 |
|
Eos/Beetle/T-Roc/Beetle 2021/T-Roc 2021 |
POLO 2019/2019+ |
Key Features
✅ Dual-Mode Flexibility: Switch between AHD 1080P (25fps) and CVBS 960H formats for compatibility with most aftermarket Android head units.
✅ 170° Ultra-Wide View: True distortion-free coverage with a calibrated 152°±2° effective angle (edge distortion <5%).
✅ Zinc Alloy Gearset: Precision-engineered for 50,000+ flip cycles, ensuring long-term reliability.
✅ Extreme Cold Resistance: Guaranteed operation in temperatures as low as -40℃.
Technical Specifications
|
Parameter |
Specification |
|
Video Format |
AHD 1080P (25fps) / CVBS 960H (selectable) |
|
Sensor |
1/2.7" OmniVision OS05C (Starlight™ Night Vision) |
|
Lens Structure |
6-glass lens + 2 IR filters |
|
Field of View |
170° diagonal (152°±2° post-calibration) |
|
Dynamic Range |
True WDR 120dB (hardware-based processing) |
|
Flip Response Time |
0.8 seconds (CAN bus wake-up optimized) |
|
Connector Type |
FAKRA Z (VW OEM-grade) + RCA composite output |
Installation Advantages
Plug-and-Play Protocol Recognition
AHD Mode
Auto-detects and pairs with universal Android head units for instant setup.
CVBS Mode
Direct compatibility with standard aftermarket multimedia systems.
Why This Camera Stands Out
The JDFB-001 redefines aftermarket rearview solutions with its zero-distortion 170° lens and dual-format video output, catering to both high-resolution AHD systems and legacy CVBS interfaces. The zinc alloy gear mechanism ensures smooth, silent flips even after years of use, while the Starlight™-enabled sensor captures crisp night-time footage. Its FAKRA Z connector guarantees OEM-grade signal stability for Volkswagen vehicles, and the RCA output extends compatibility to universal head units.
Ideal for Drivers Who Need
- A factory-like upgrade without cutting wires or altering dashboards.
- Reliable performance in extreme winter conditions.
- Minimal blind spots for safer parking and reversing.
