Product Details

Key Points

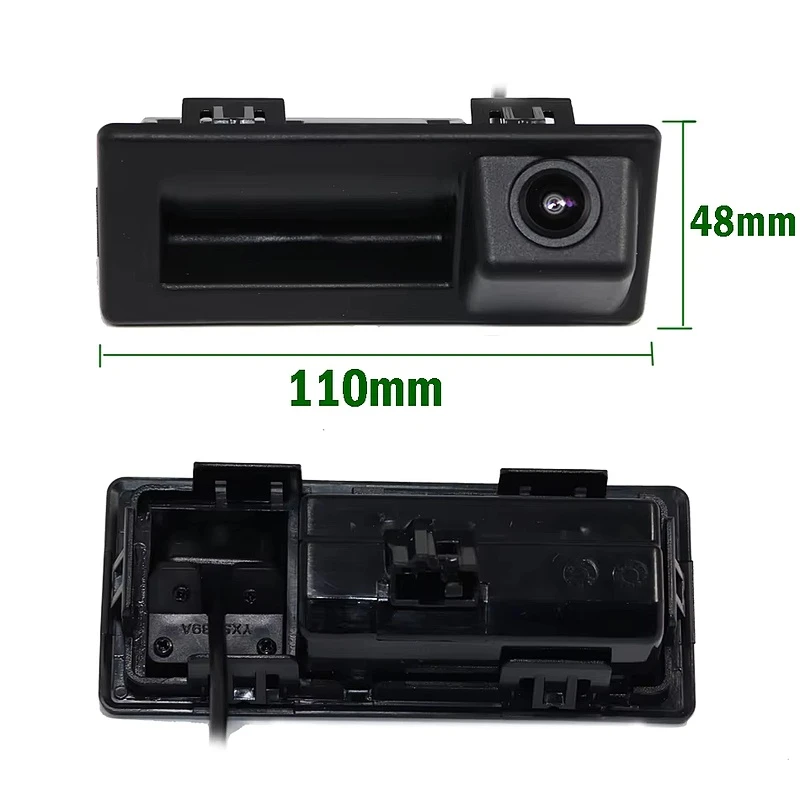

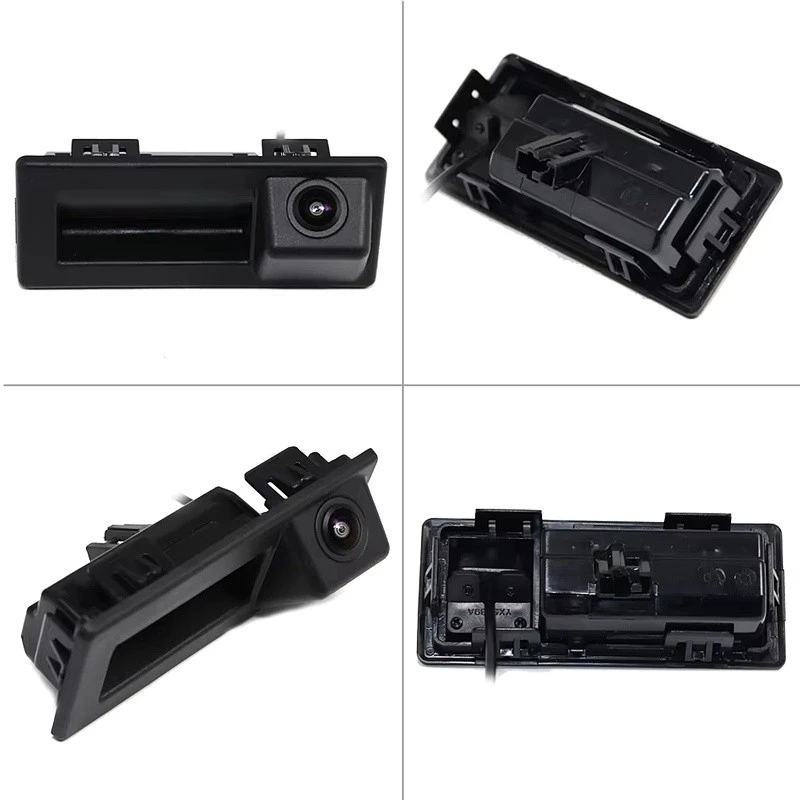

1. OEM-Identical Large Handle Design

Precision-molded to match the curvature and bolt holes (±0.1mm tolerance) of original Volkswagen Touareg, Audi Q7/A8L large handles.

2. Dual-Signal Flexibility

o CVBS 650TVL: Backward compatibility with legacy analog hosts.
o AHD 1080P@30fps: Digital output for modern vehicle platforms.

3. Night Vision Dominance

6-layer all-glass lens (F1.6 ultra-wide aperture) paired with Sony IMX307 sensor enables 0.001Lux visibility, auto-optimized for rain/snow conditions.

4. Extreme Environment Durability

IP69K-rated waterproof/dustproof housing + dual-shielded anti-interference cabling. Operational stability guaranteed from -40℃ to 105℃.

5. Premium Cable Build

6-meter dual-shielded TPU cable with gold-plated connectors for corrosion resistance.

Technical Specifications

Parameter	Specification
Compatibility	Volkswagen: Touareg/Teramont/Magotan (large handle variants) Audi: Q7/A8L/A6L (large handle variants, 2012-2023)
Installation	Direct bolt-on replacement for OEM large handle stud holes (no cutting/drilling required)
Resolution	AHD 1080P@30fps / CVBS 650TVL
Lens Configuration	6-layer glass lens (F1.6 aperture)
Signal Protocol	AHD-TVI / CVBS
Water & Dust Proof	IP69K (withstands 100Bar high-pressure wash)

Vehicle Compatibility List

Audi

A4L (2017-2024) / Q7 (2016-2023) / A8L (2012-2023) / A6L (2012-2023) / A3 (2018-2020)

Volkswagen

Touran L (2016-2021) / Tiguan L (2017-2024) / Teramont/Teramont X (2017-2020) / C-Trek (2017) / Lavida Plus (2018-2024) / Sagitar (2018) / Phideon (2019, 2021)

Škoda

Superb (2017-2020) / Octavia/Octavia Combi (2017-2020) / Kamiq (2017-2023)
