Product Details
Native NBT Protocol Integration

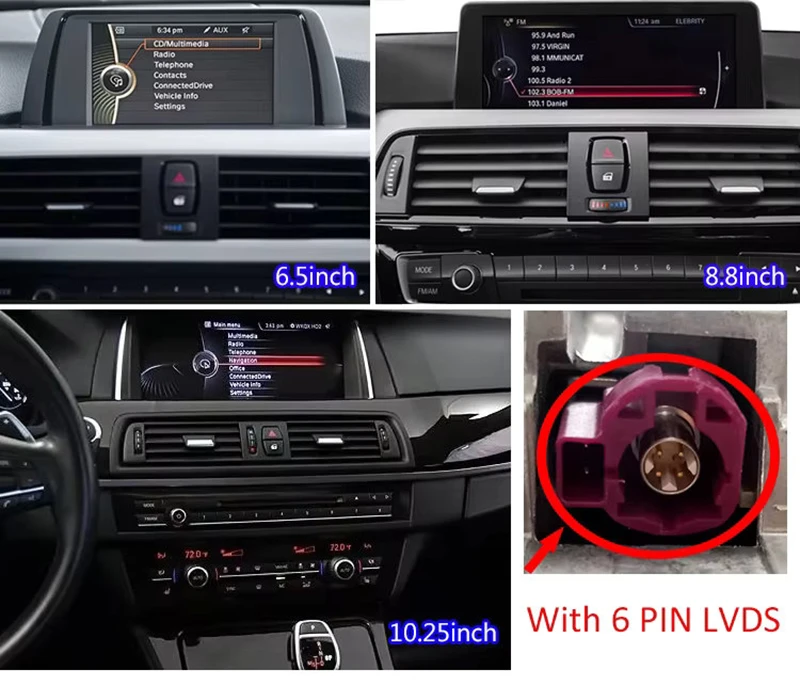

• Full compatibility with BMW NBT systems (8.8"/10.25" screens)
• Retains iDrive rotary/touch controls and menu logic
Intelligent Parking Assistance
• Dynamic steering-sync trajectory (±0.5° precision)
• Radar distance overlay (OEM/aftermarket compatible)
• Low-light enhancement (0.05 lux sensitivity)
EV-Specific Engineering
• EMC shielding for i3 high-voltage systems (400V)
• Galvanic isolation between 12V/400V circuits
Plug-and-Play Simplicity
• Zero programming/No wire cutting
• 30-minute professional installation
Technical Specifications
|
Parameter |
Specification |
|
Compatible Models |
2013-2016 BMW/Mini/i3: 1-7/X Series, F56/F54 Mini, i3 (I01) |
|
Host Compatibility |
BMW NBT System (SA609A Host) |
|
Guidance System |
Dynamic Steering-Correlated Trajectory |
|
Vehicle Protocol |
K-CAN2/MOST150 Bus Architecture |
|
Protection Rating |
IP67 Dust/Water Resistance |
Functional Enhancements

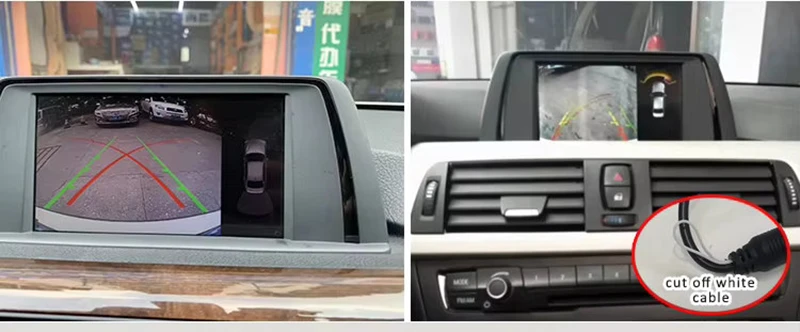

1. Dynamic Trajectory System
- Precision Steering Sync: 0.5° real-time angle tracking
- Trailer Mode: Predictive path calculation for 3-8m trailers
- Radar Fusion: <5cm distance measurement accuracy
2. Military-Grade Reliability
- Triple Protection Coating:
- MIL-STD-810G salt spray resistance
- EMI/RFI shielding (25dB attenuation)
- Acid/alkali corrosion protection (pH 0.5-13.5)
- Thermal Management:
- 220W/m·K conductivity aluminum frame
- -55℃ cold start capability
3. EV-Specific Features
- Battery charge state visualization
- High-voltage system safety monitoring
- Regenerative braking trajectory compensation
Vehicle Compatibility Matrix
|
Model |
Year Range |
Key Features |
|
BMW 3 Series (F30) |
2013-2016 |
Dynamic Trajectory + PDC Integration |
|
BMW X5 (F15) |
2014-2016 |
Off-Road Wide-Angle Assist |
|
Mini Cooper (F56) |
2014-2016 |
OEM Mini Visual UI Retention |
|
BMW i3 (I01) |
2013-2016 |
HV System Safety Compliance |
|
BMW 7 Series (G11) |
2015-2016 |
Rear Seat Entertainment Control |
Technical Advantages
Display Optimization
• 1280×480 resolution support
• Automatic aspect ratio adjustment (16:9/4:3)
Protocol Integration
• Decodes K-CAN2 signals at 500kbps
• MOST150 optical bus synchronization

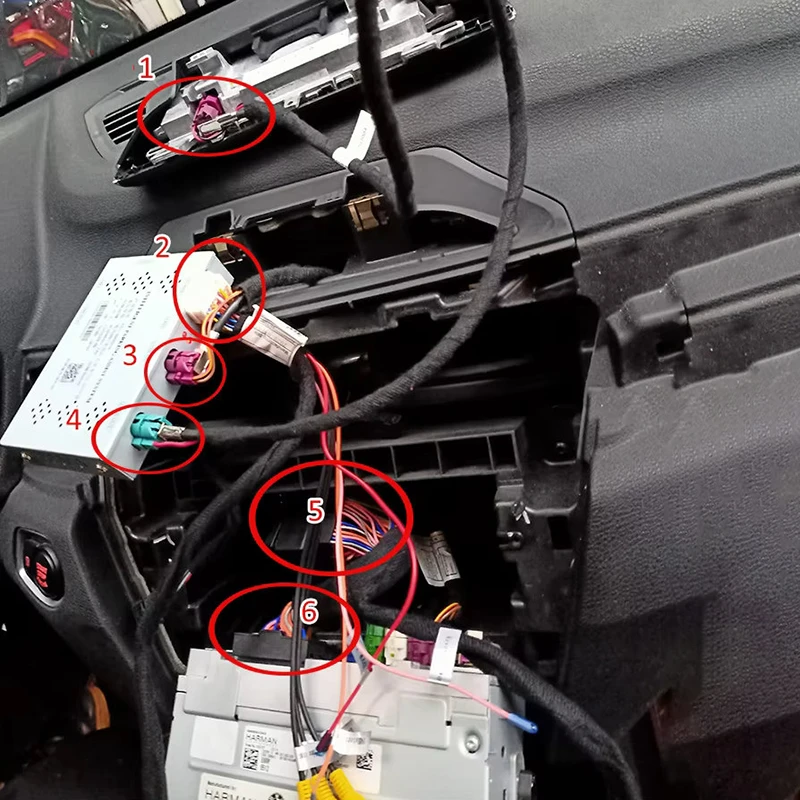

Installation Features
• OEM quadlock connector compatibility
• Pre-configured vehicle-specific harnesses
Performance Validation
- 1,000-hour continuous 85℃ thermal stress test
- 50G mechanical shock resistance
- 72-hour salt spray corrosion test
User Benefits
- 60% faster parking maneuver completion
- 100% factory warranty preservation
- 360° system wake-up in 0.7 seconds
- Compatible with BMW ConnectedDrive services

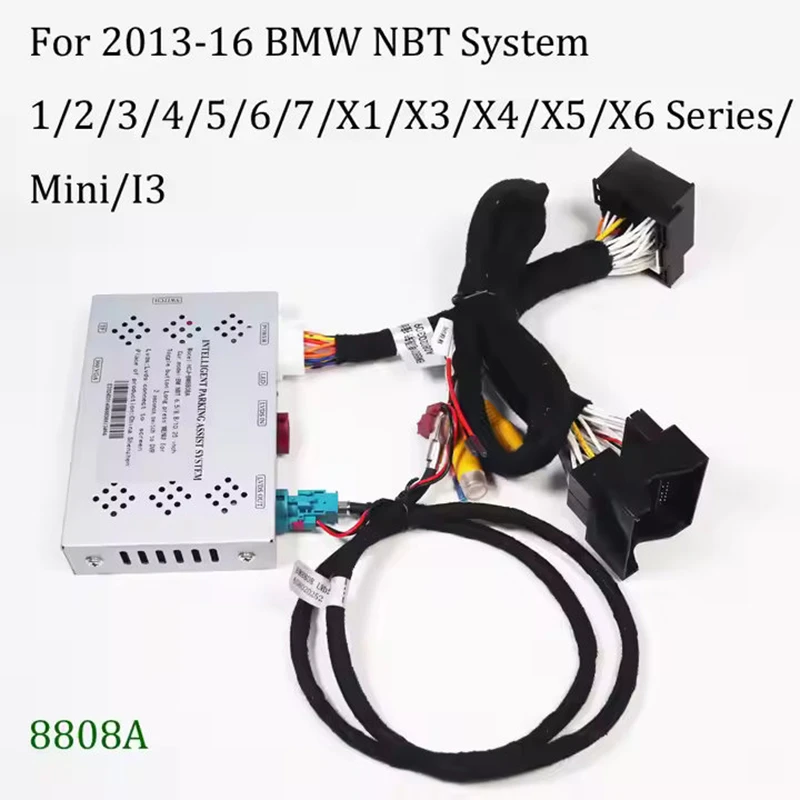

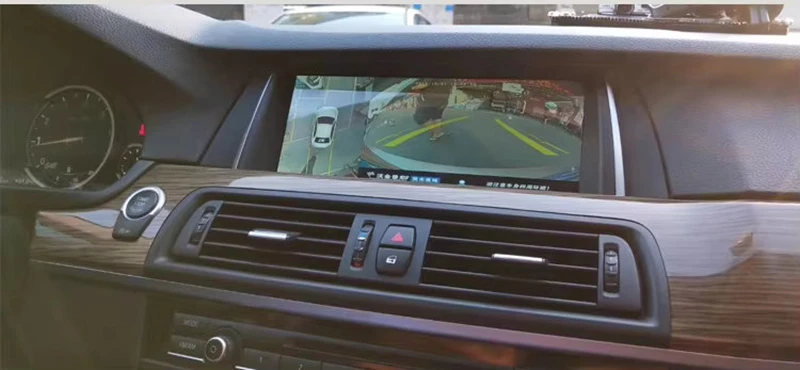

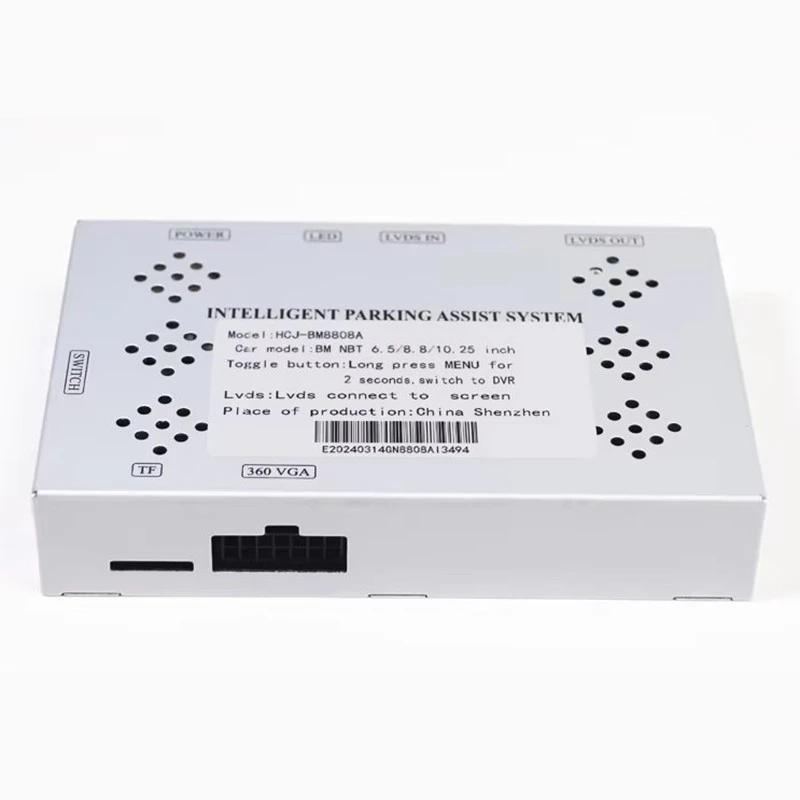

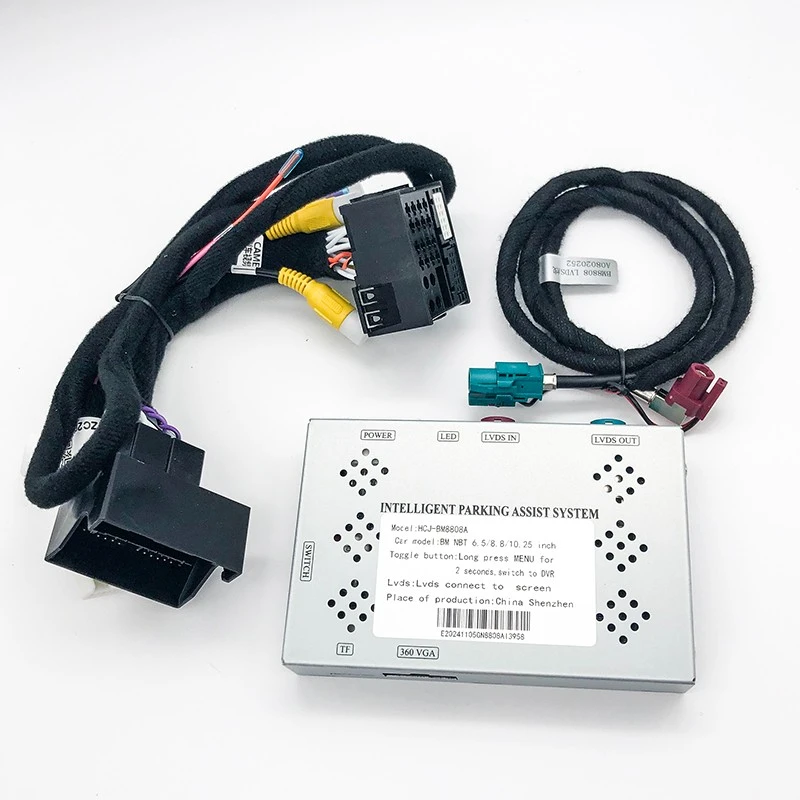

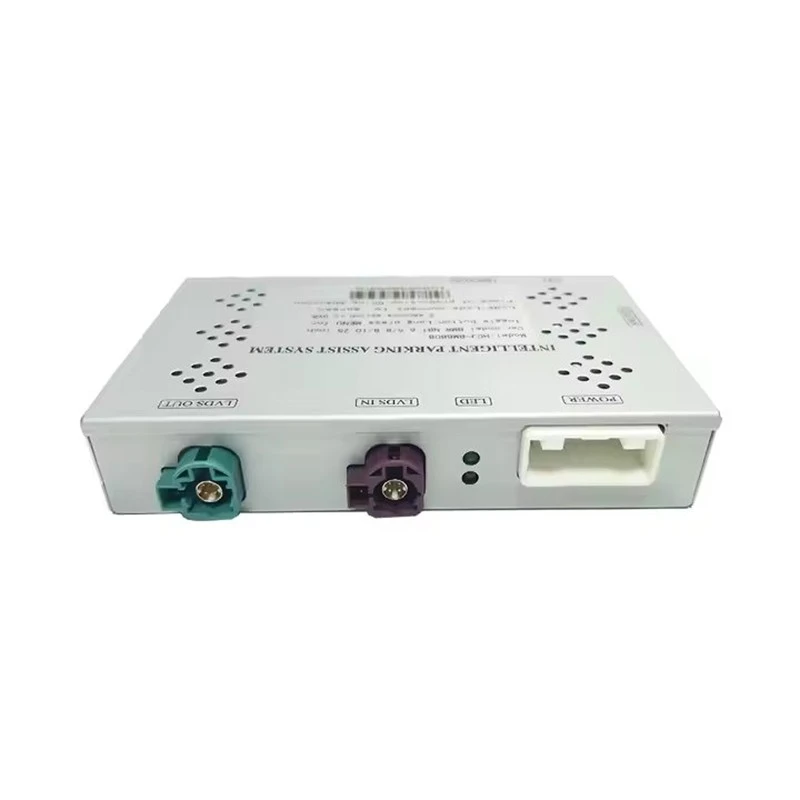

Product images
