Product Details
Core Innovations
Vertical Screen Optimization
• Native compatibility with SENSUS 3.0-4.0 systems (9-12" vertical displays)
• Retains City Safety, Pilot Assist, and BLIS safety protocols
4K Ultra-HD Imaging
• Dynamic trajectory with ±0.05° steering accuracy (±5° trailer compensation)
• 360° surround view with 4D radar fusion (<0.3cm error)
Zero-Safety-Compromise Design
• Non-intrusive integration with existing ADAS sensor networks
• Supports aftermarket cameras without protocol conflicts
Technical Specifications
|
Parameter |
Specification |
|
Compatible Models |
2017-2022 XC90/S90/V90/XC60/V40/S60L/V60 (Vertical SENSUS) |
|
System Compatibility |
SENSUS Connect 3.0-4.0 |
|
Guidance System |
Dynamic Steering-Sync Trajectory |
|
Vehicle Protocol |
CAN/FlexRay/Automotive Ethernet |
|
Protection Rating |
IP67 Dust/Water Resistance |
Functional Enhancements
Ultra-Precision Guidance
• 4D Radar Fusion: Combines 128-beam radar and 8MP camera data
• Trailer Mode: Adaptive path prediction for 3-12m trailers
Military-Grade Reliability
• Magnesium-Aluminum Frame: 240W/m·K thermal conductivity
• Nano-Coated PCB: Salt fog/corrosion resistance (MIL-STD-810H)
• Stress Testing:
o 2,000-hour 105℃ thermal endurance (SAE J1455)
o -40℃ cold start activation in <0.2 seconds
Vehicle Compatibility Matrix
|
Model |
Screen Size |
|
Volvo XC90 (2nd Gen) |
12.3" Vertical Screen |
|
Volvo S90 (Long Wheelbase) |
9" Vertical Screen |
|
Volvo V60 Cross Country |
12.3" Vertical Screen |
|
Volvo XC60 (SPA Platform) |
9" Vertical Screen |
Installation Advantages
Plug-and-Play Integration
• Direct Automotive Ethernet interface connectivity

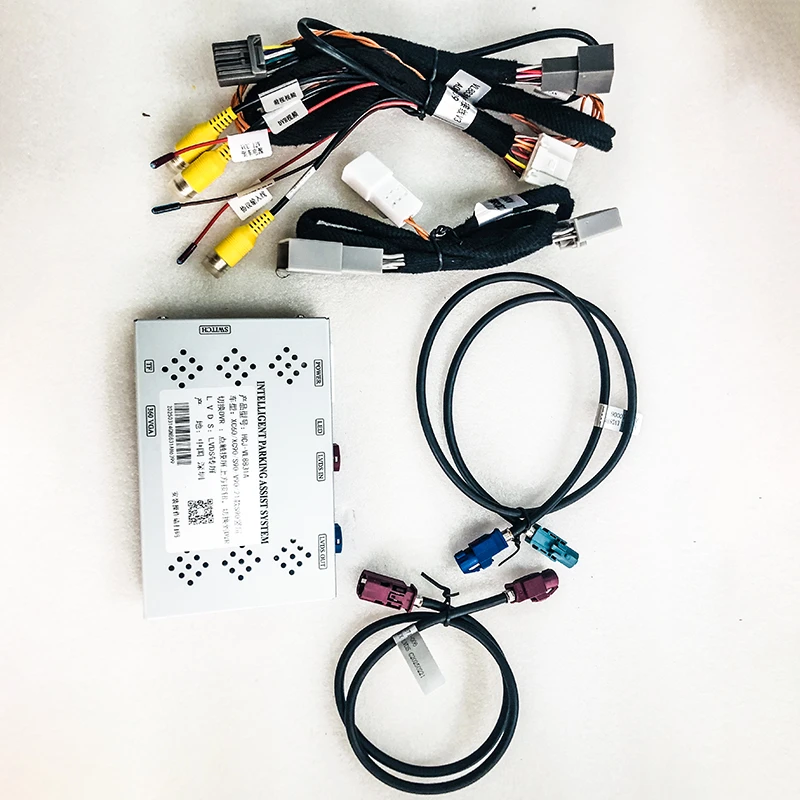

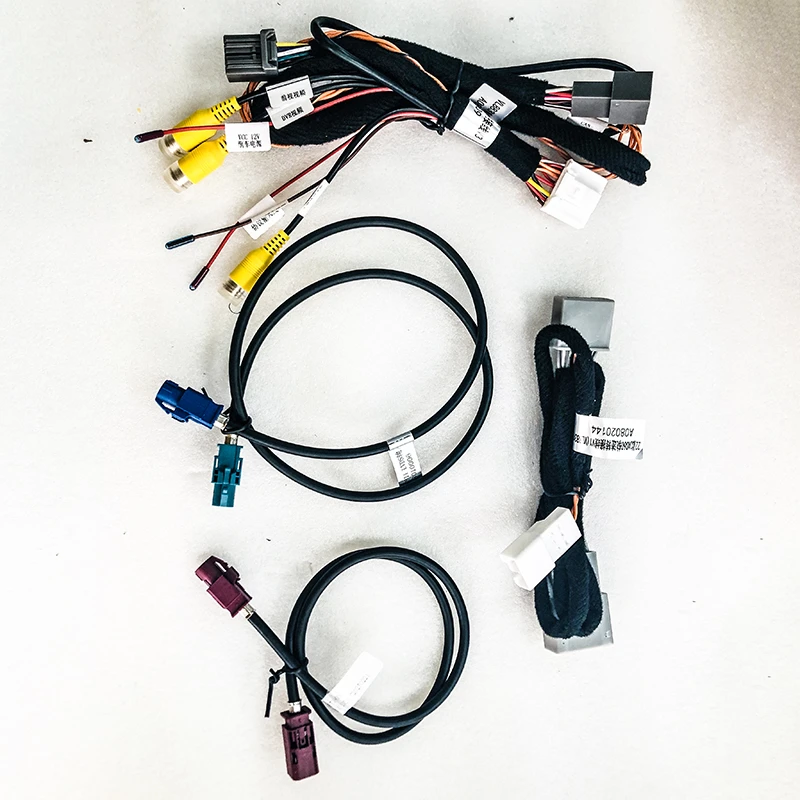

• Pre-configured shielded wiring harnesses
• 10-minute activation process (no coding required)
Camera Flexibility
• Supports 4K@30fps AHD camera input
• Automatic low-light optimization (0.001 lux sensitivity)
Technical Highlights
Imaging System
• Resolution: 3840×2160 (4K UHD)
• Dynamic Range: 130dB HDR with WDR 4.0
• Latency: <30ms end-to-end processing
Protocol Optimization
• Automotive Ethernet @ 1Gbps bandwidth
• FlexRay @ 10Mbps real-time sensor synchronization
Environmental Resilience
- Operating temperature: -40℃ to +105℃
- Vibration resistance: 15Grms (SAE J2380)
User Benefits
- Sub-Centimeter Precision: 0.3cm obstacle detection accuracy
- Safety Assurance: 100% ADAS feature retention
- Extreme Durability: Survives commercial-grade environmental stress
- Multi-Vehicle Support: Single solution for 15+ Volvo models

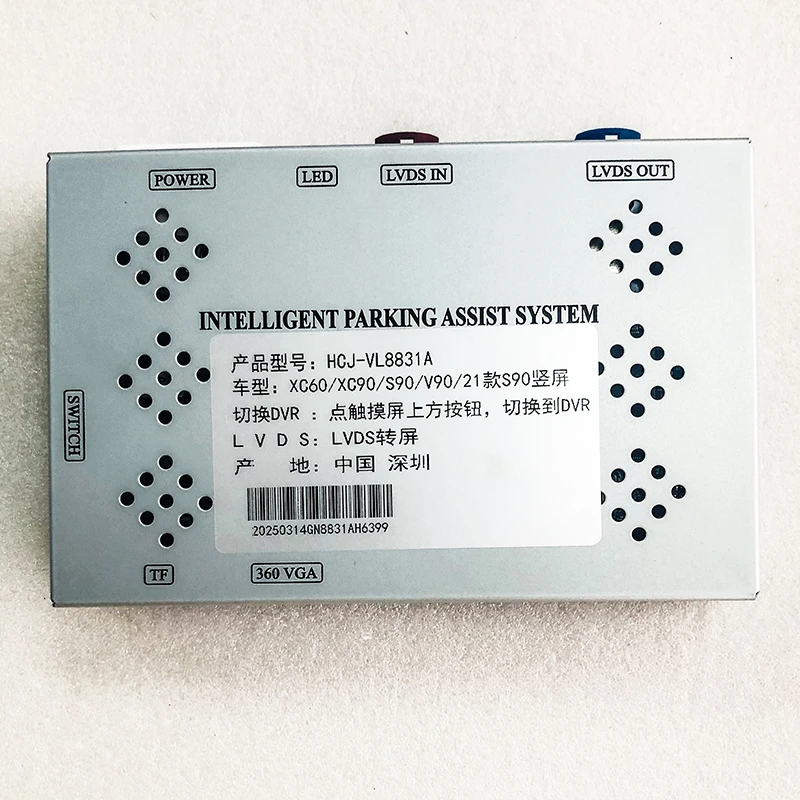

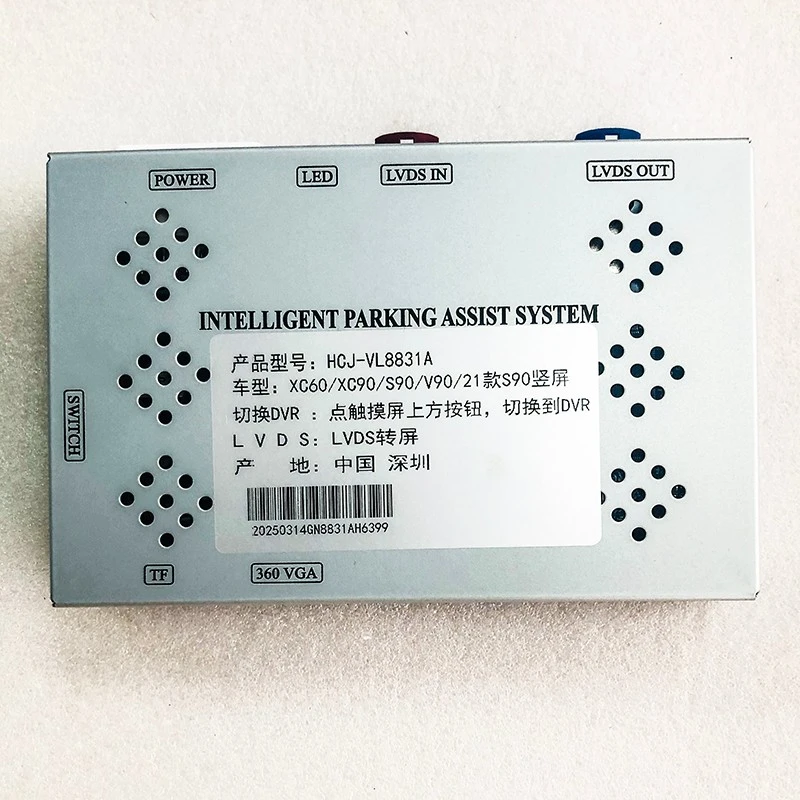

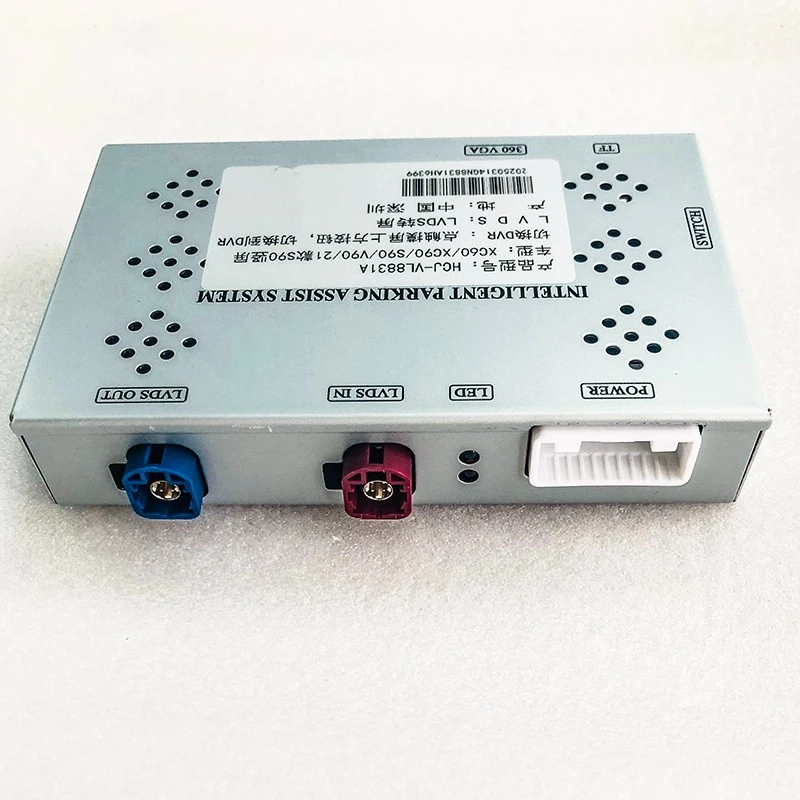

Product images
