Product Details
Core Features
Native Ethernet Connectivity
- 1000Mbps bandwidth for zero-latency 4K video transmission (Ethernet AVB protocol).
- Direct integration with vehicle Ethernet gateways (no signal converters required).

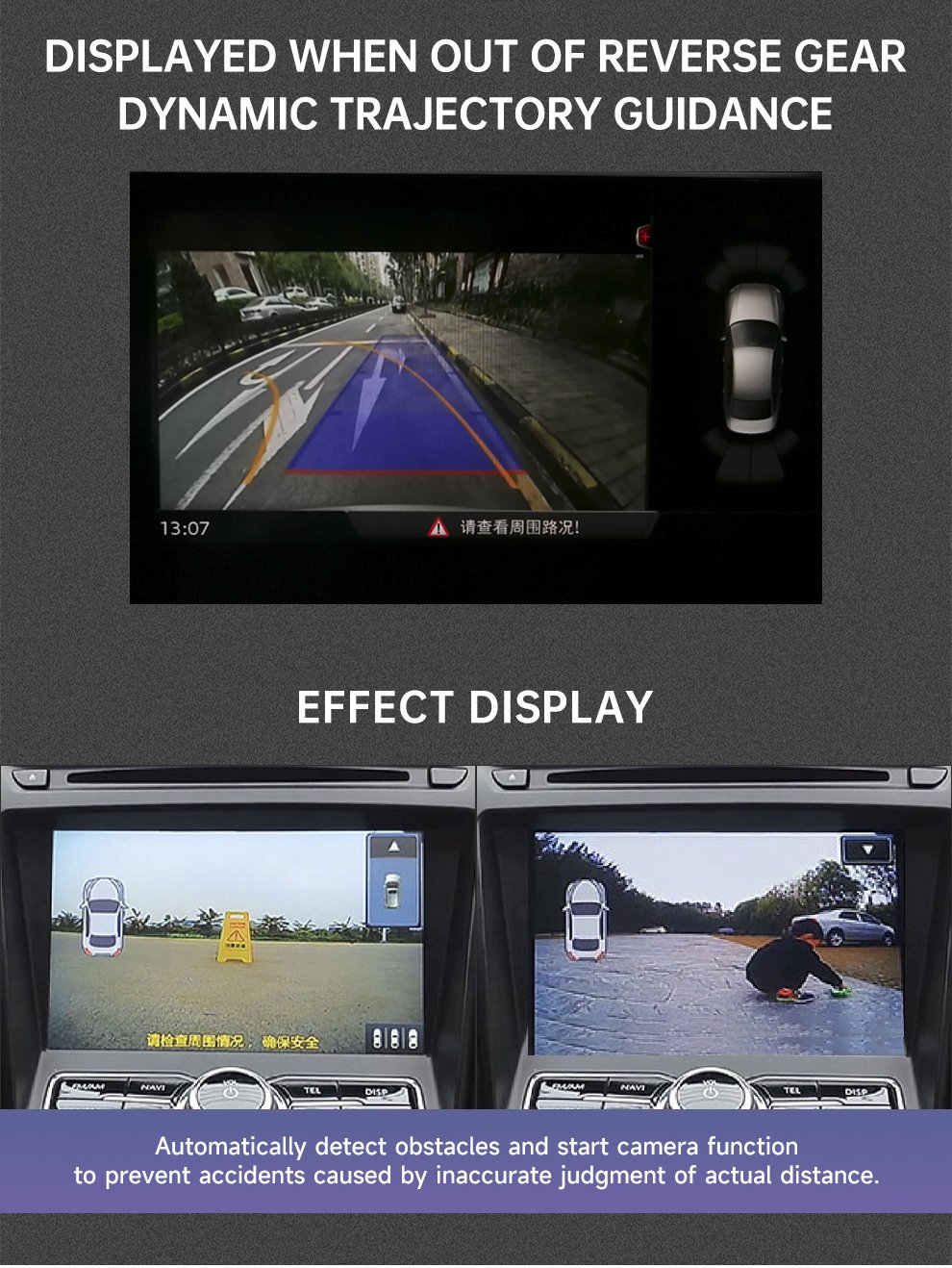

Dynamic Trajectory Technology
- Triple-axis data fusion (steering angle, speed, road gradient) via CAN FD.
- Dual-core AI prediction algorithm achieves <0.3° trajectory error.
Military-Grade Protection
- IP69K-rated housing withstands 80°C/100bar steam cleaning.
- ASIL-C functional safety certification for fail-operational design.
- Instant cold starts at -40℃ with PTC heating system.
EV-Optimized Design
- 2500VAC high-voltage insulation.
- EMI-shielded circuitry prevents interference with battery management systems.
Technical Specifications
|
Parameter |
Specification |
|
Video Transmission |
Ethernet AVB |
|
Image Sensor |
Sony IMX678 STARVIS™ (1/1.8" CMOS) |
|
Resolution |
3840×2160 @30fps (H.265 encoding) |
|

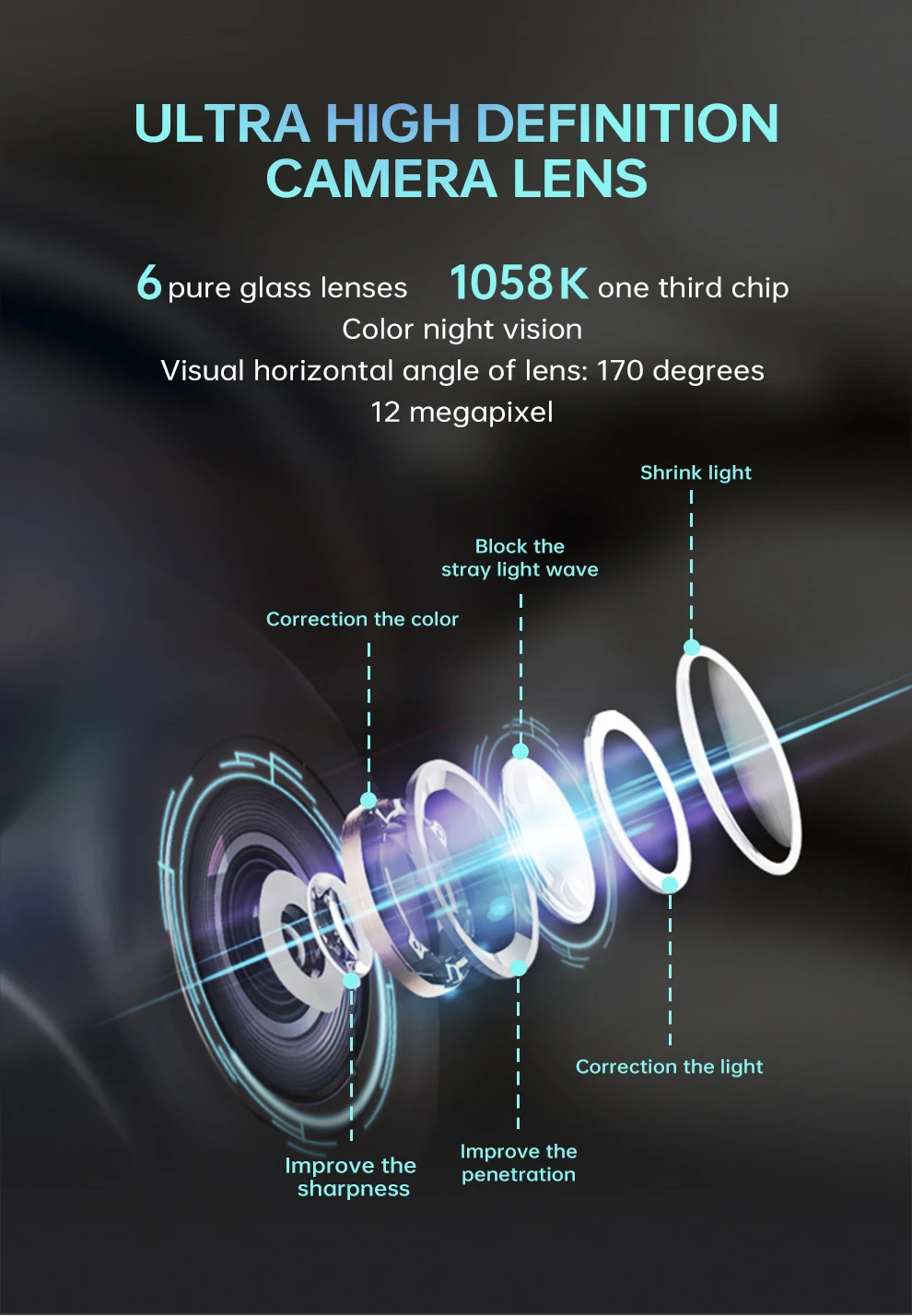

Lens System |
6-element all-glass with hydrophobic coating |
|
Power Supply |
9-16V DC |
|
Mounting |
OEM bolt pattern (ID.4/ID.6 direct fit) |
Smart Installation System
Plug-and-Play Operation:
Auto-platform detection (MEB/MQB Evo).

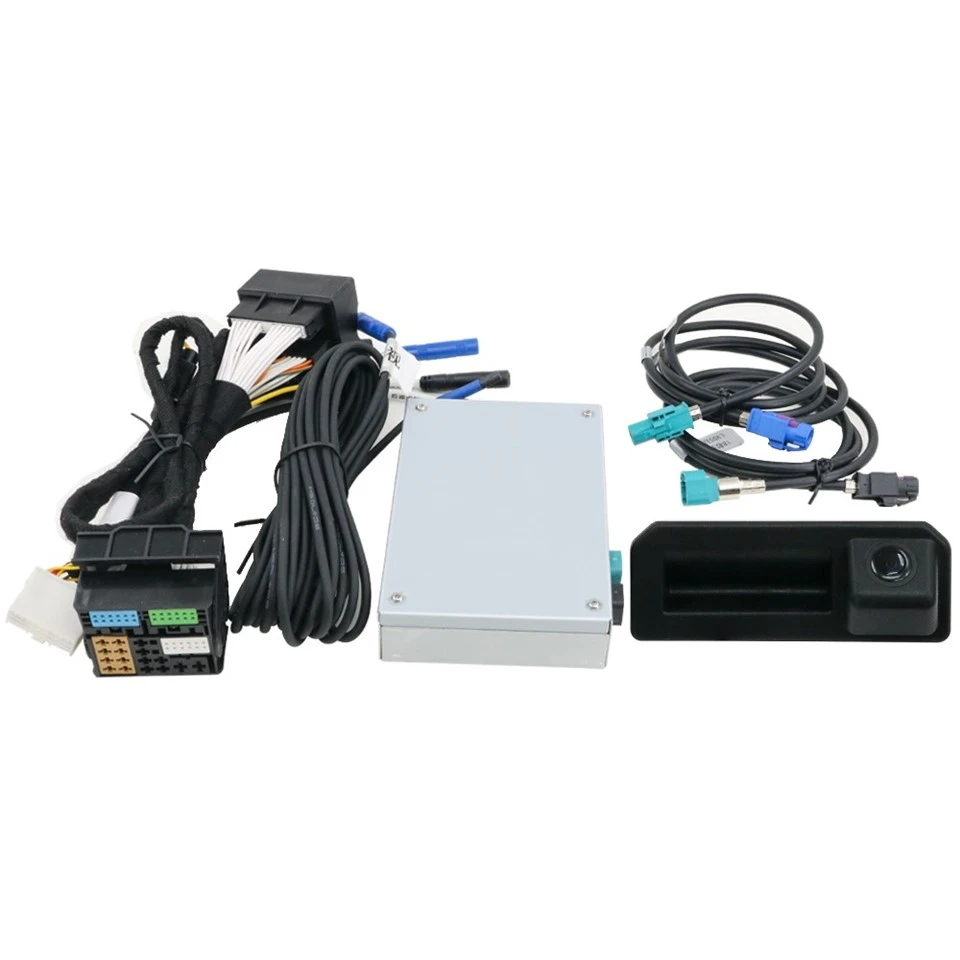

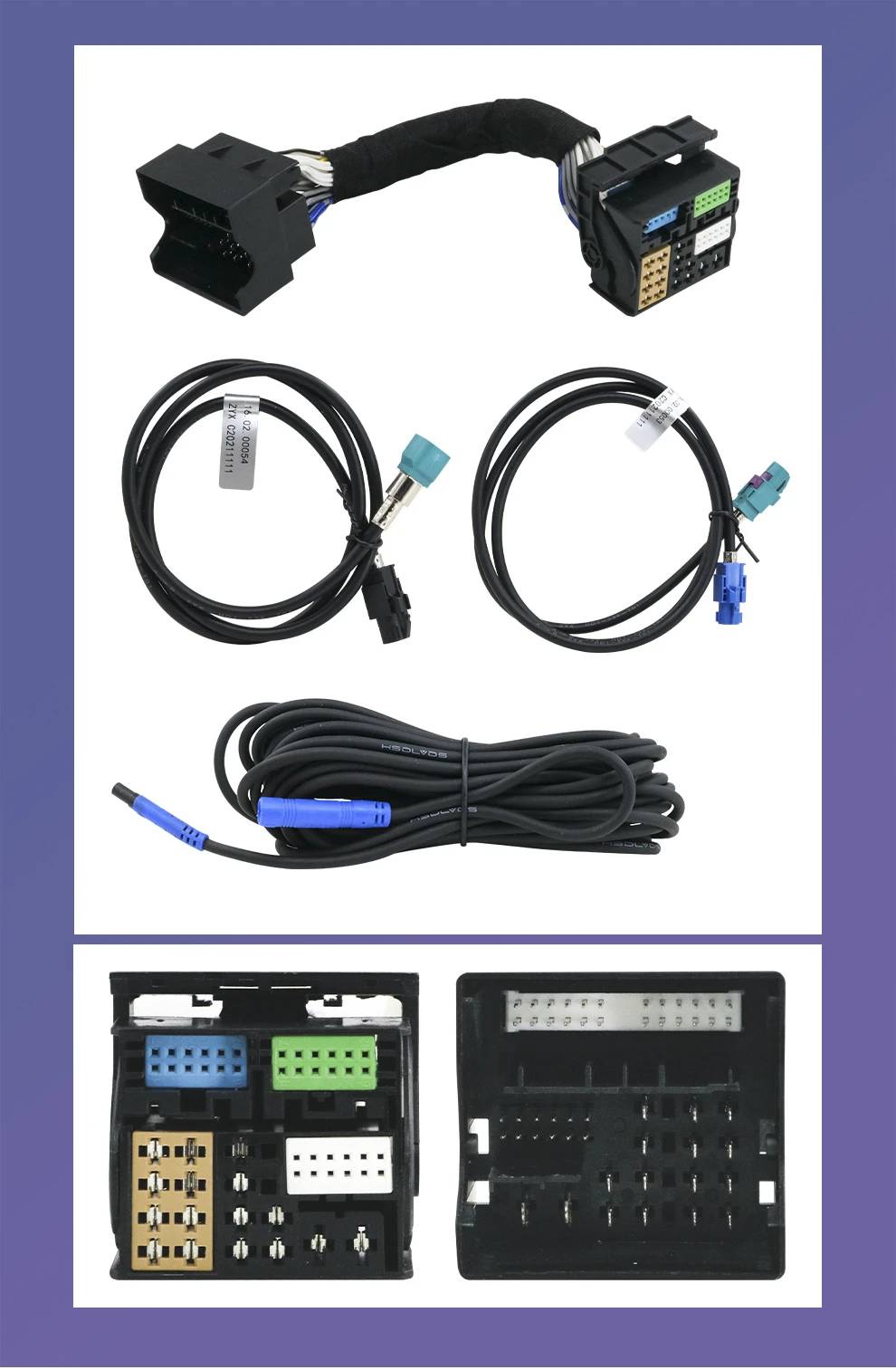

Pre-terminated Ethernet harness (Amphenol T1G connectors).
Vehicle-Specific Configuration:
|
Vehicle |
Platform |
Special Requirements |
|
Audi A3 8Y |
MQB Evo |
Ethernet gateway activation required |
|
VW ID.3 |
MEB |
AR-HUD projection support (optional) |
|
VW ID.4 |
MEB |
Direct OEM mounting |
|
VW ID.6 |
MEB |
Trailer mode trajectory correction |
|
Audi Q4 e-tron |
MEB |
Disable factory digital signature check |
Functional Advantages

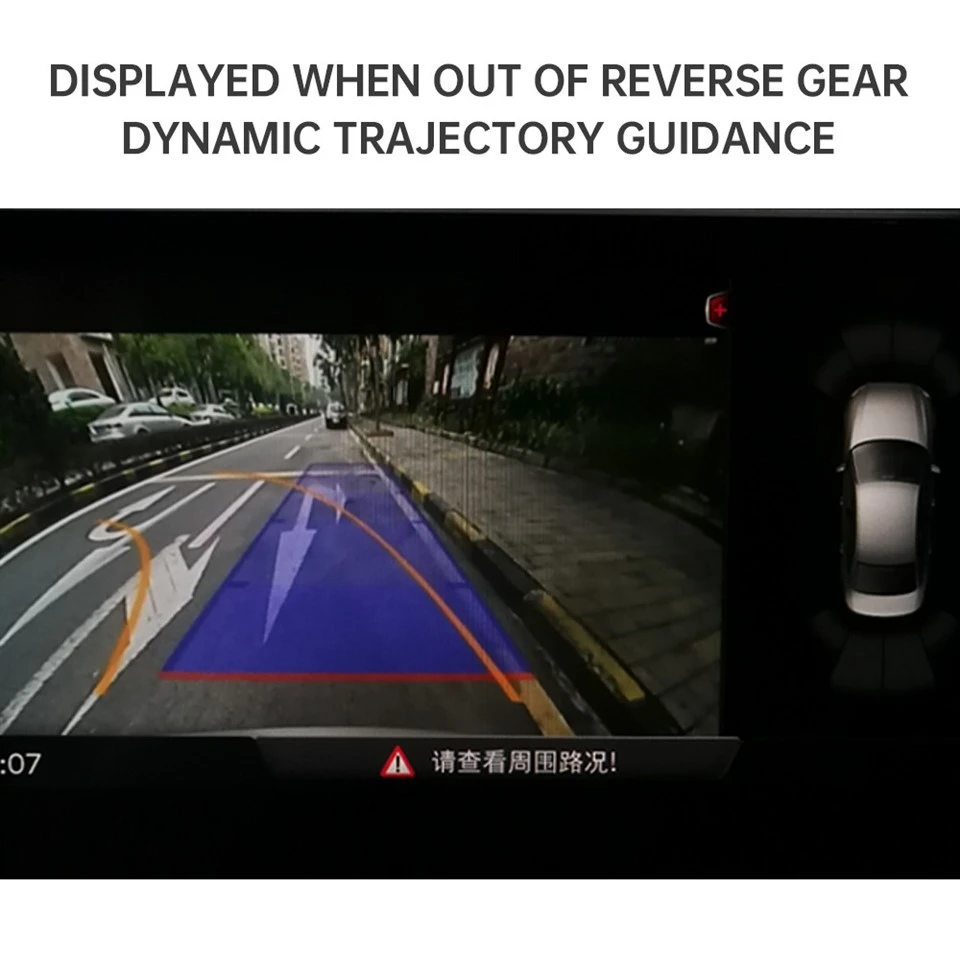

- Real-Time AR Overlay: Dynamic guidelines adapt to road gradient (±5° detection).
- Predictive Obstacle Avoidance: AI identifies moving objects within 3m radius.
- Energy-Efficient Operation: <3W power consumption during standby.
