Product Details
| Compatibility | |
| Platforms |
MQB, PQ35/PQ46 |
| Systems |
MIB 2.5 (5NA/3GB) MIB 3 (5H7) |
| Models |
Volkswagen: Tiguan, Golf, Passat (license light camera variants) Audi: A3, A4, Q2, Q3 Skoda: Octavia, Superb, Kodiaq |
Key Features

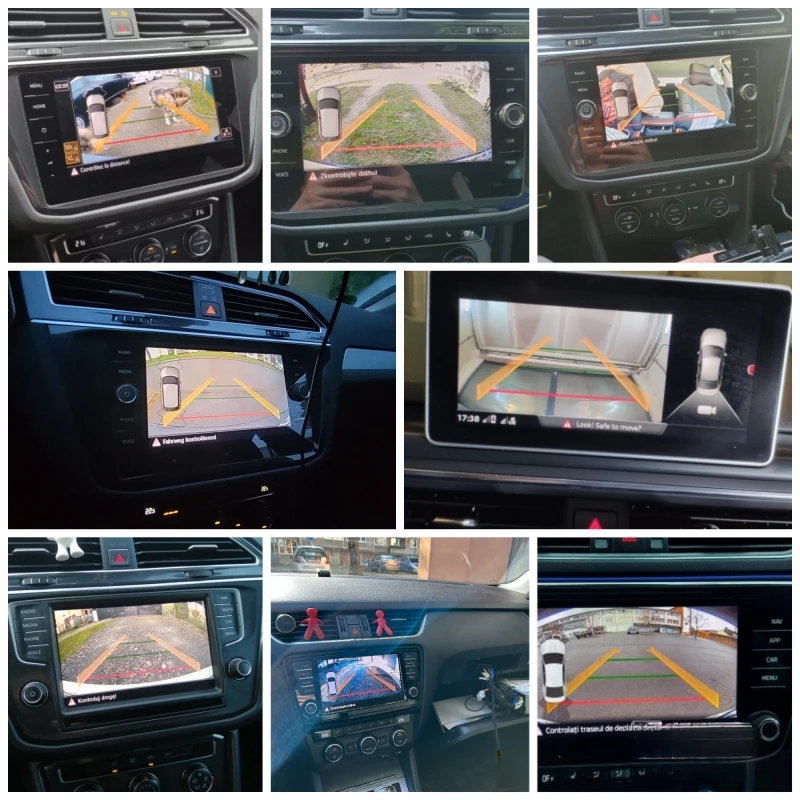

Dynamic Guideline Integration
- Real-time trajectory overlay via CAN 0x3B3 data (steering angle, speed, gear position).
- Synchronized display with OPS radar graphics on MIB screens (±0.5° accuracy).
Dual-Purpose Design

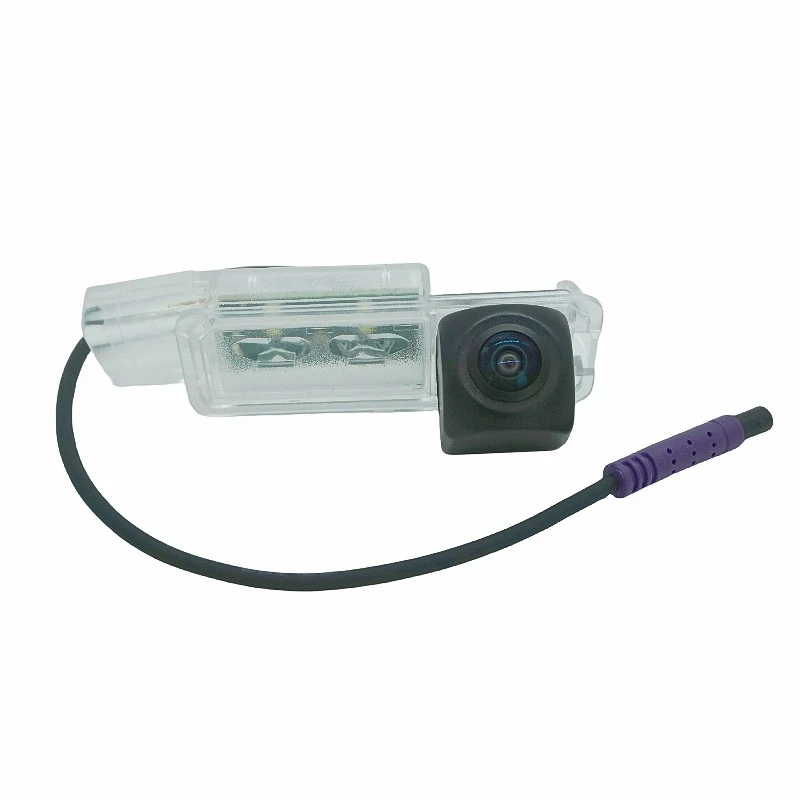

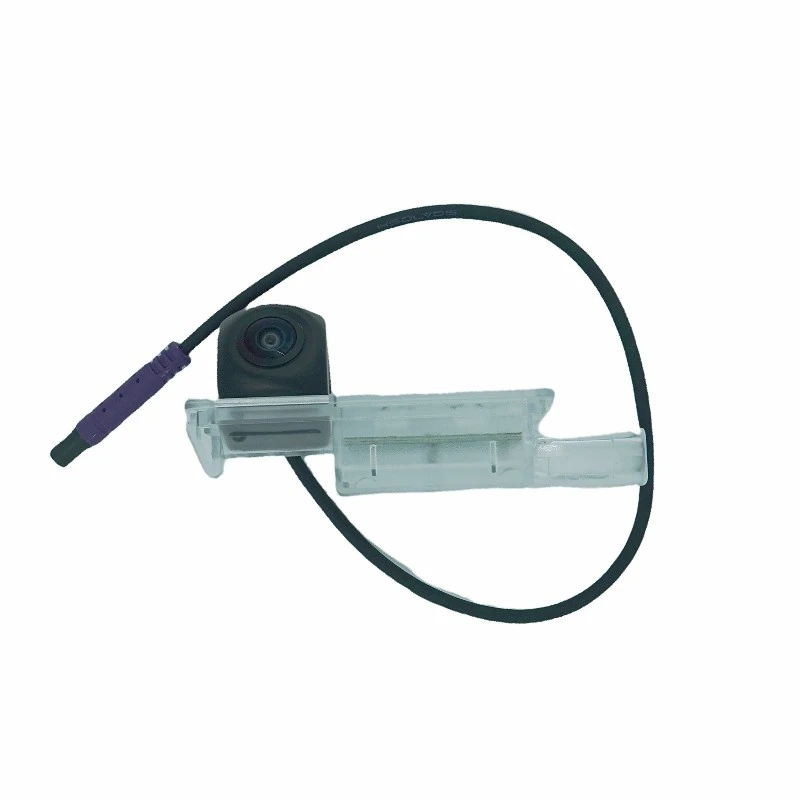

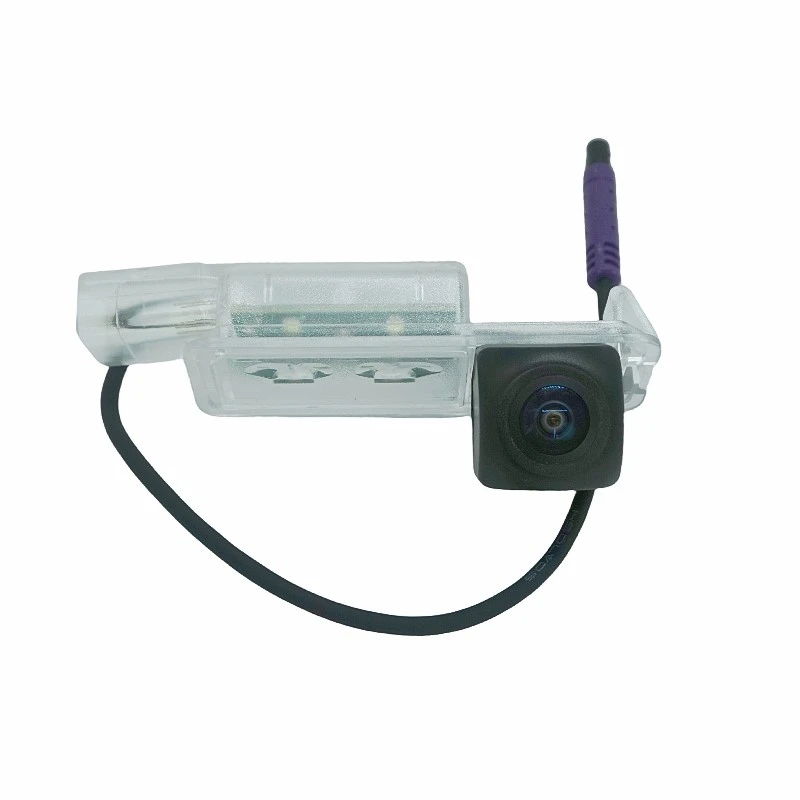

- Integrated LED license plate light (6500K color temperature, 200lm output).
- 4K UHD imaging (2560×1440 @30fps) with Sony IMX678 STARVIS™ sensor.
- 0.001 Lux low-light sensitivity for night visibility without auxiliary lighting.
Tool-Free Installation

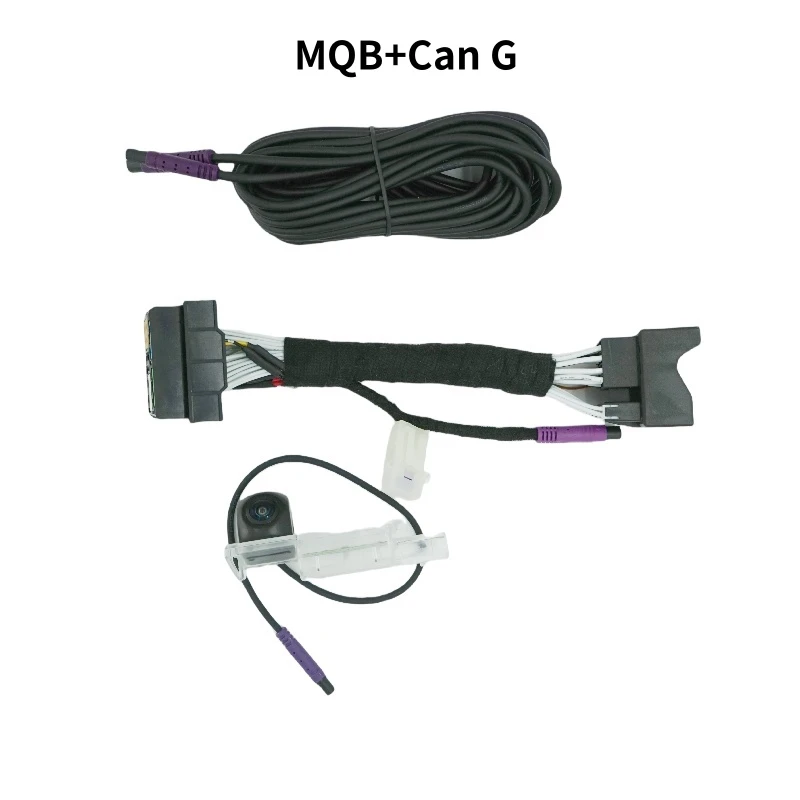

- FAKRA Z connector ensures direct plug-in to factory harnesses.
- ODIS auto-recognition for instant system activation.
- Utilizes OEM mounting points (compatible with 5GD 807 435 bracket).
Environmental Resilience
- IP6K9K Protection: Resists high-pressure steam (80°C/100bar) and dust.
- Thermal Management:
- PTC heating film (-40℃ cold-start capability).
- Liquid-cooled module sustains +105℃ operation.
Technical Specifications
|
Parameter |
Specification |
|
Resolution |
2560 × 1440 @30fps (4:3 industrial ratio) |
|
Lens System |
6-element fisheye correction, 195° FOV |
|
Light Output |
200lm ±10% (CRI >80) |
|
Protocol Support |
MIB 2.5/MIB 3 native CAN FD (2Mbps) |
|
Power Draw |
3.2W (camera + lighting) |
|
Housing Material |
UV-stabilized PA6-GF30 |
Installation Benefits
- Zero Coding Required: Automatic video channel activation via CAN bus.

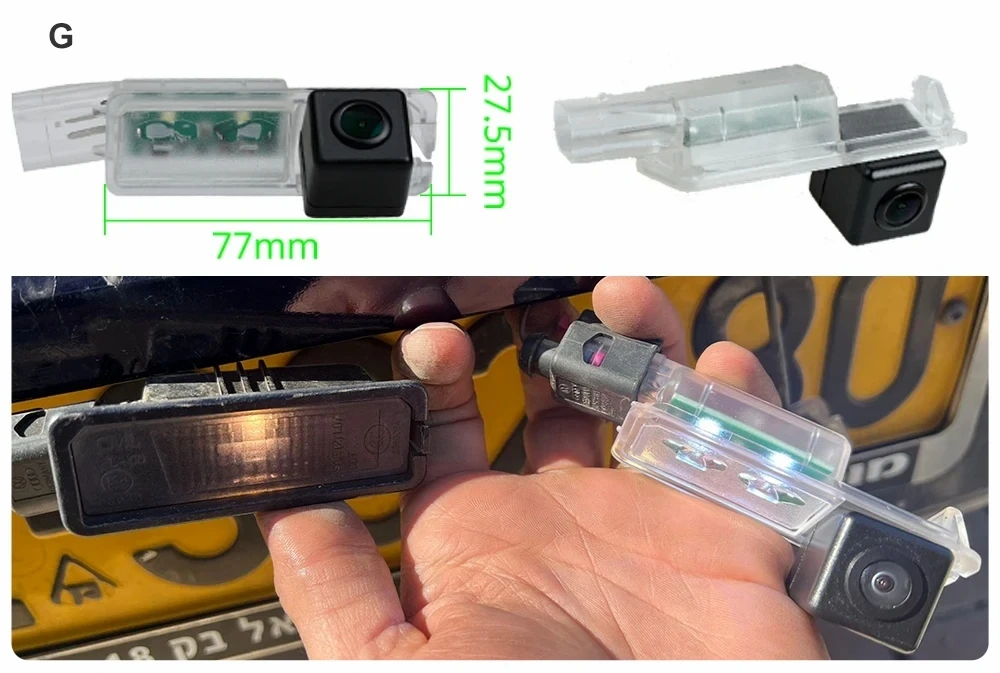

- Precision Alignment: Laser-etched guides match OEM license light cutouts.
- Diagnostic Compatibility: Full integration with VAS 6154/ODIS tools.
