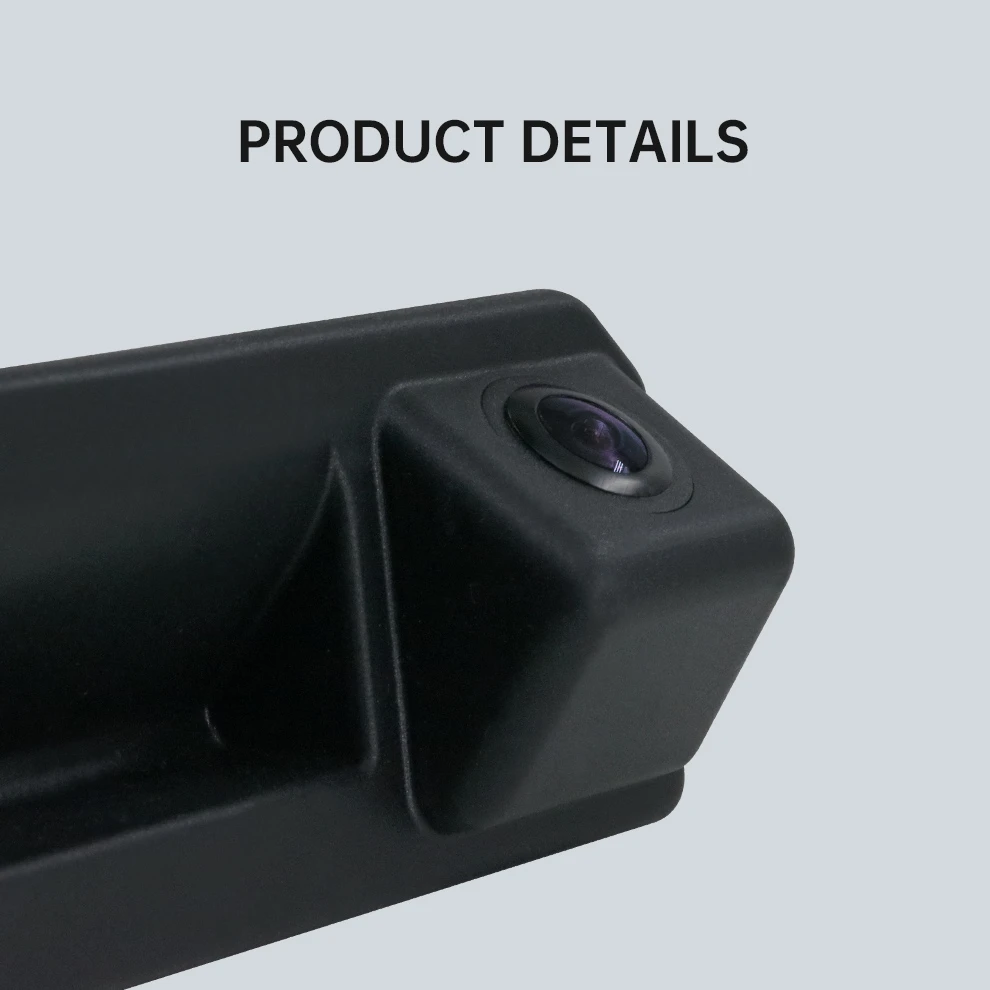

Product Details
| Compatibility | |
| Platforms |

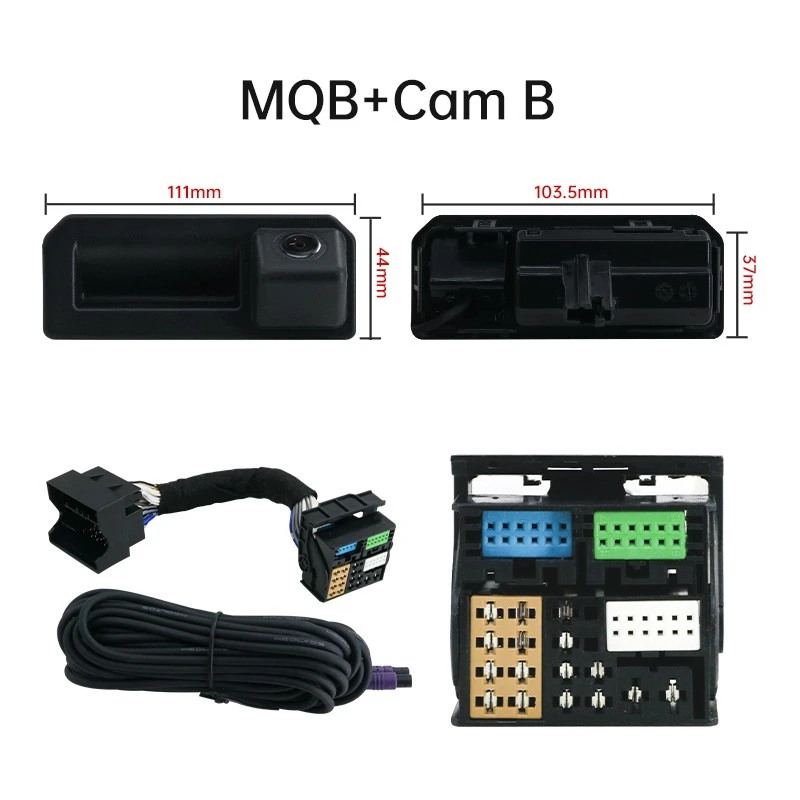

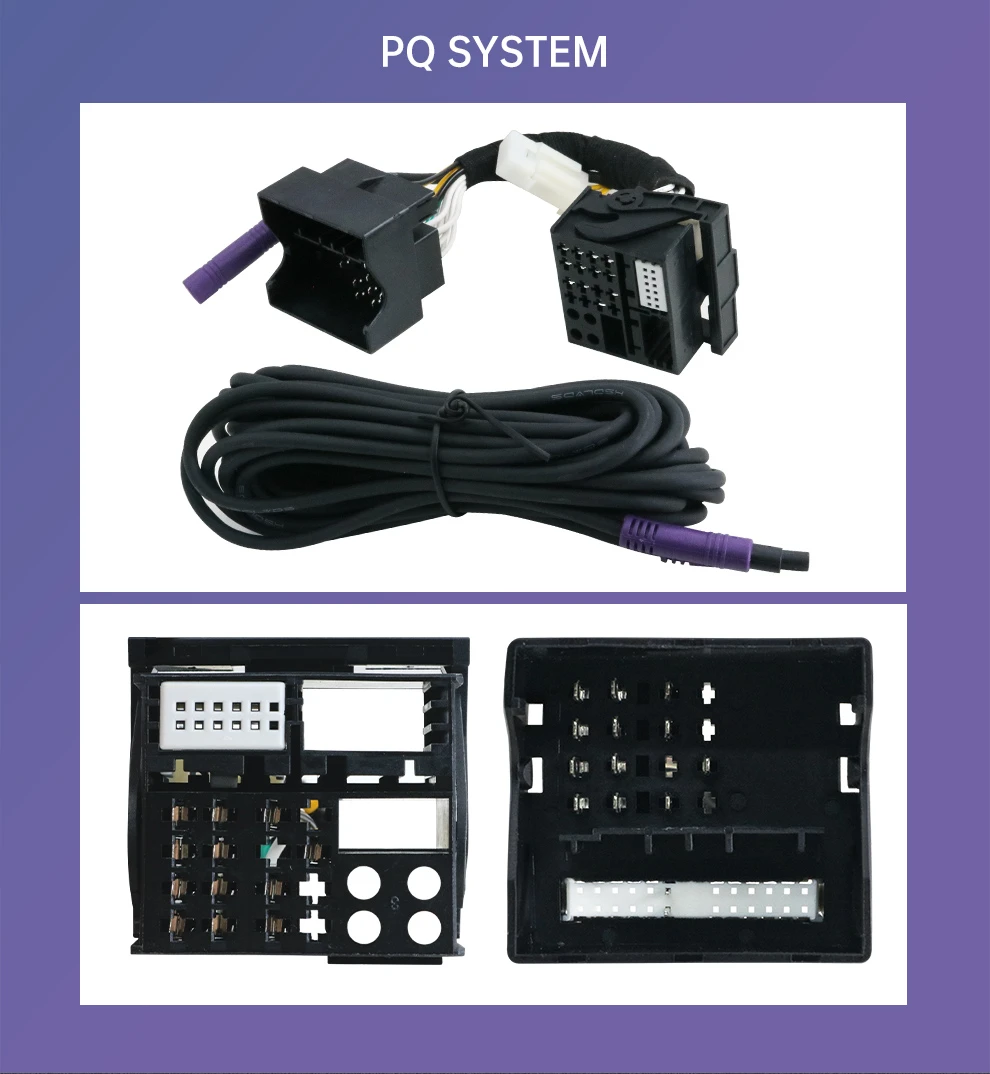

MQB, PQ35/PQ46 |
| Infotainment Systems |
MIB 2.5 (5NA/3GB) MIB 3 (5H7) |

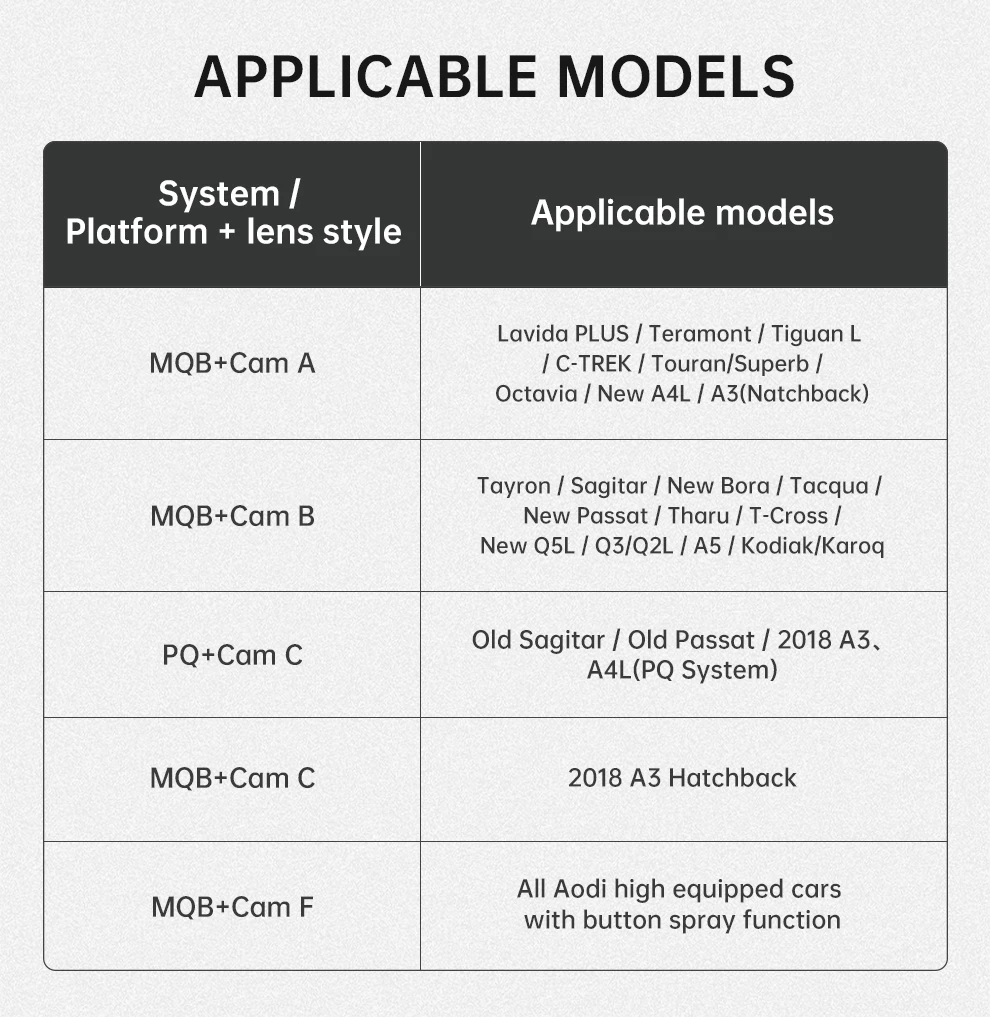

| Vehicle Models |
Volkswagen: Tiguan, Golf, Arteon Skoda: Octavia, Superb Audi: A1, A3, A5, Q2, Q3, Q5 SEAT: Leon, Ateca |
Key Features

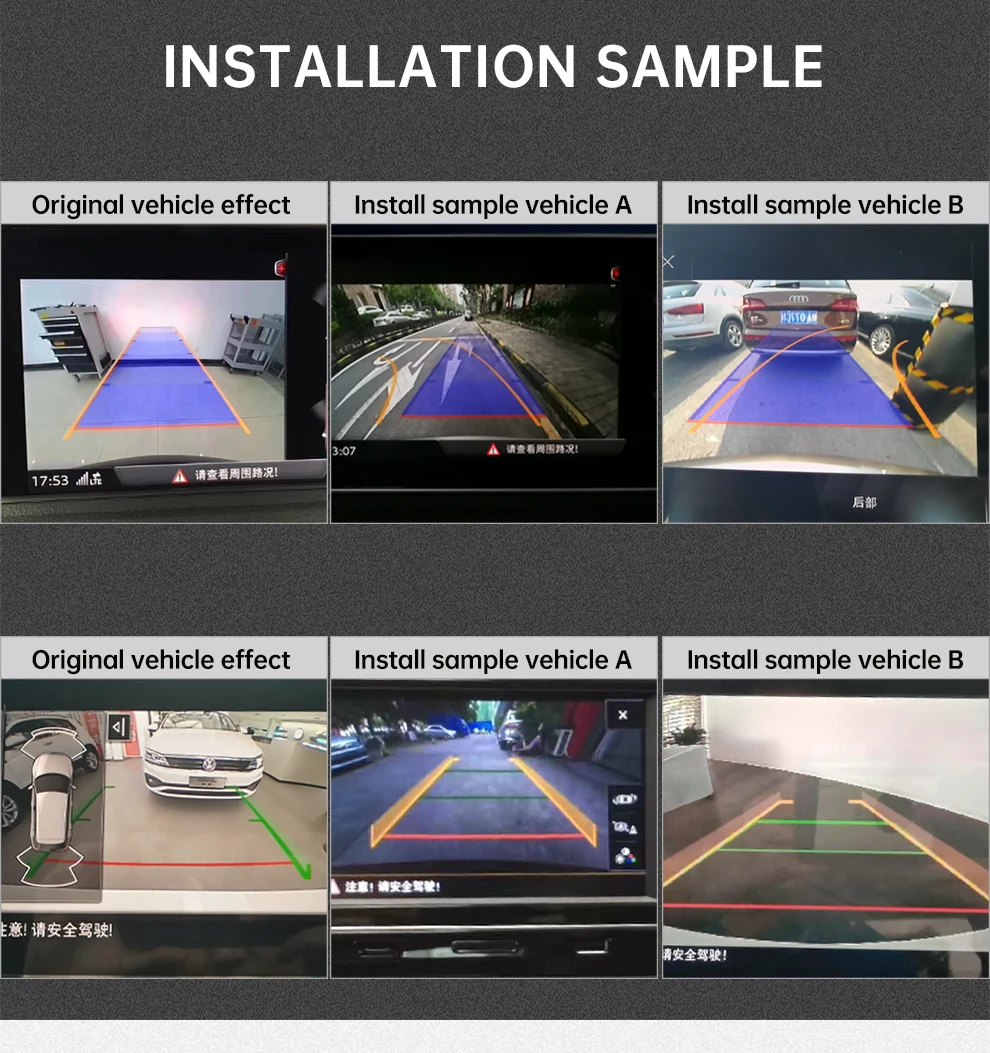

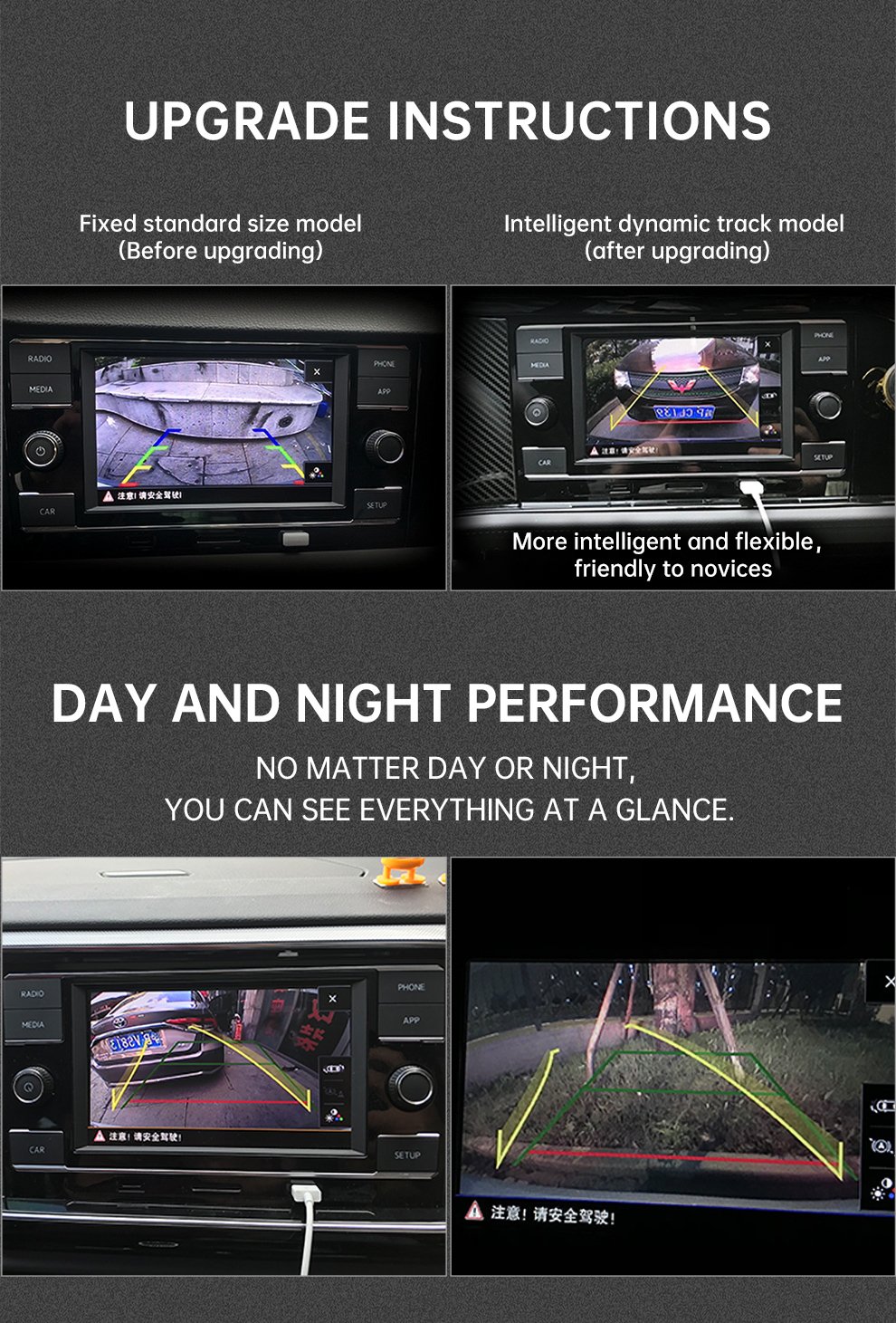

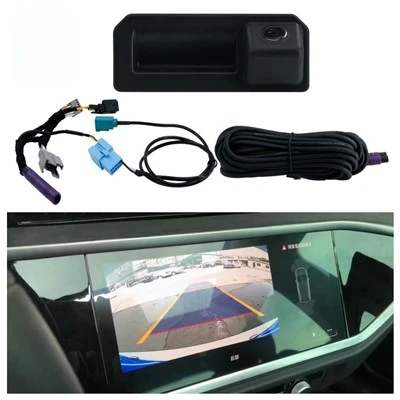

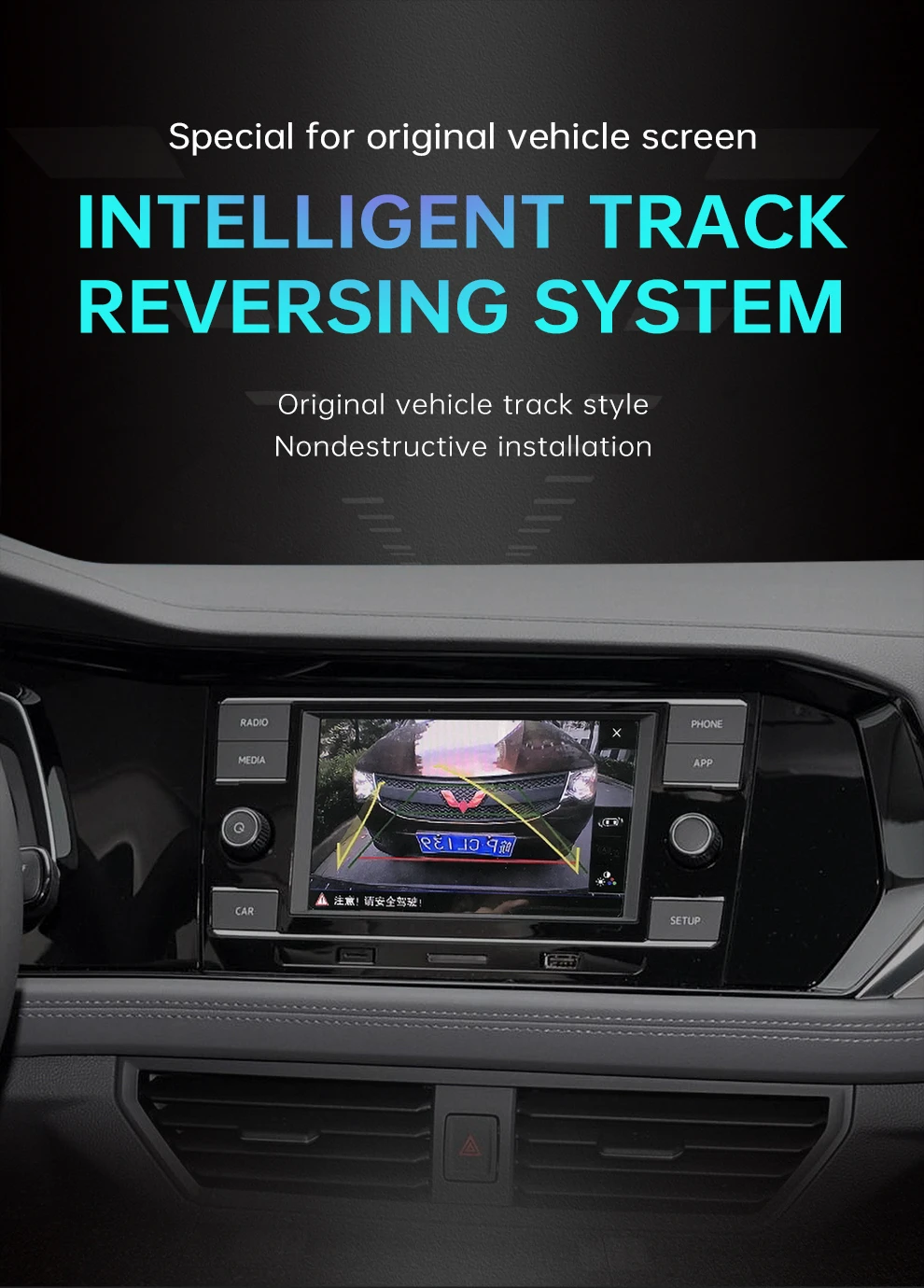

Dynamic Parking Guidelines
- Real-time trajectory overlay synced with steering wheel angle, vehicle speed, and gear position via CAN 0x3B3 signals.
- Adaptive guidelines adjust with ±0.5° precision for accurate parking path prediction.
- Supports simultaneous display of OPS (Optical Parking System) radar visuals on MIB screens.
4K Ultra HD Night Vision
- Sony IMX678 STARVIS™ sensor enables 2560×1440 resolution at 30fps (4:3 industrial ratio).
- Advanced low-light performance (0.001 Lux sensitivity) for clear visibility in moonless conditions.
- 6-element fisheye correction lens with a 195° wide-angle field of view.
Zero-Wire Modification Installation

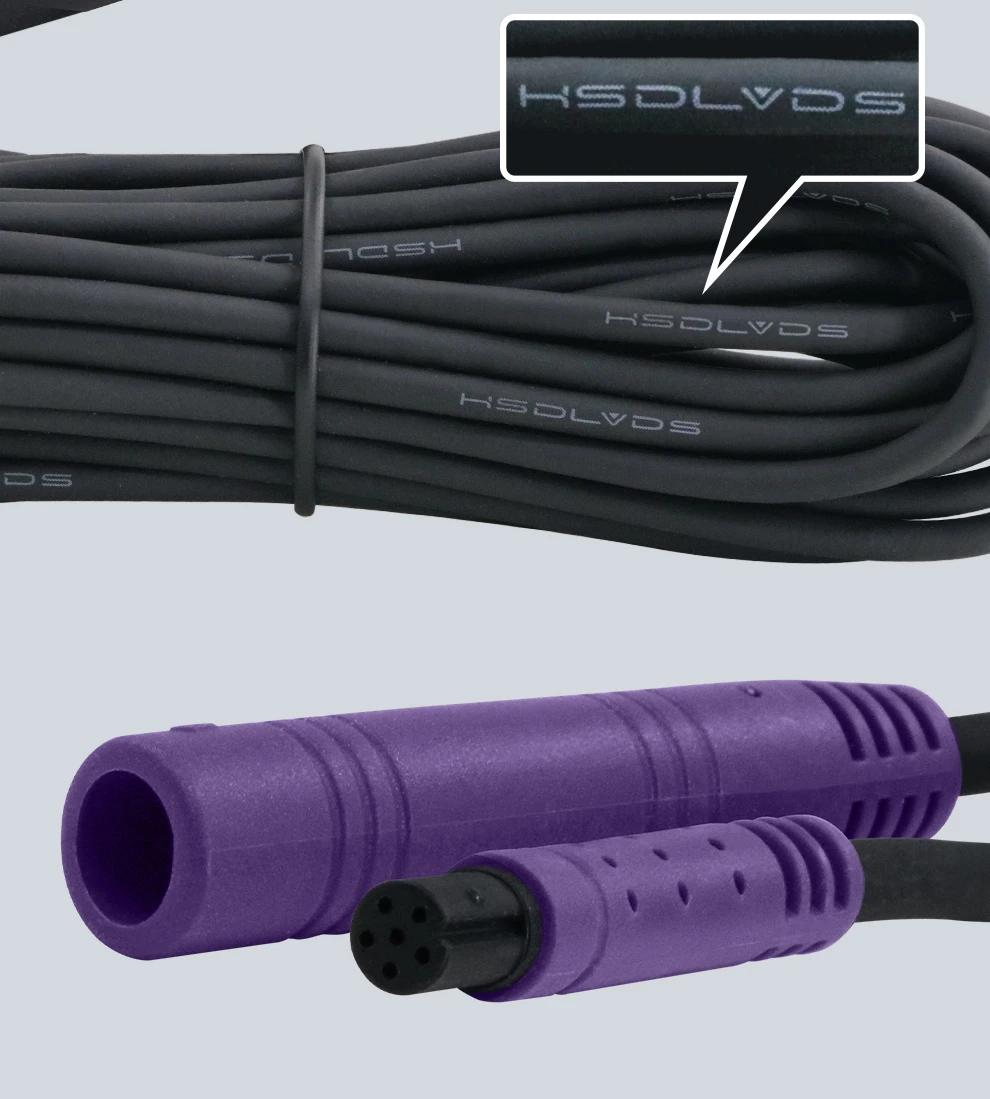

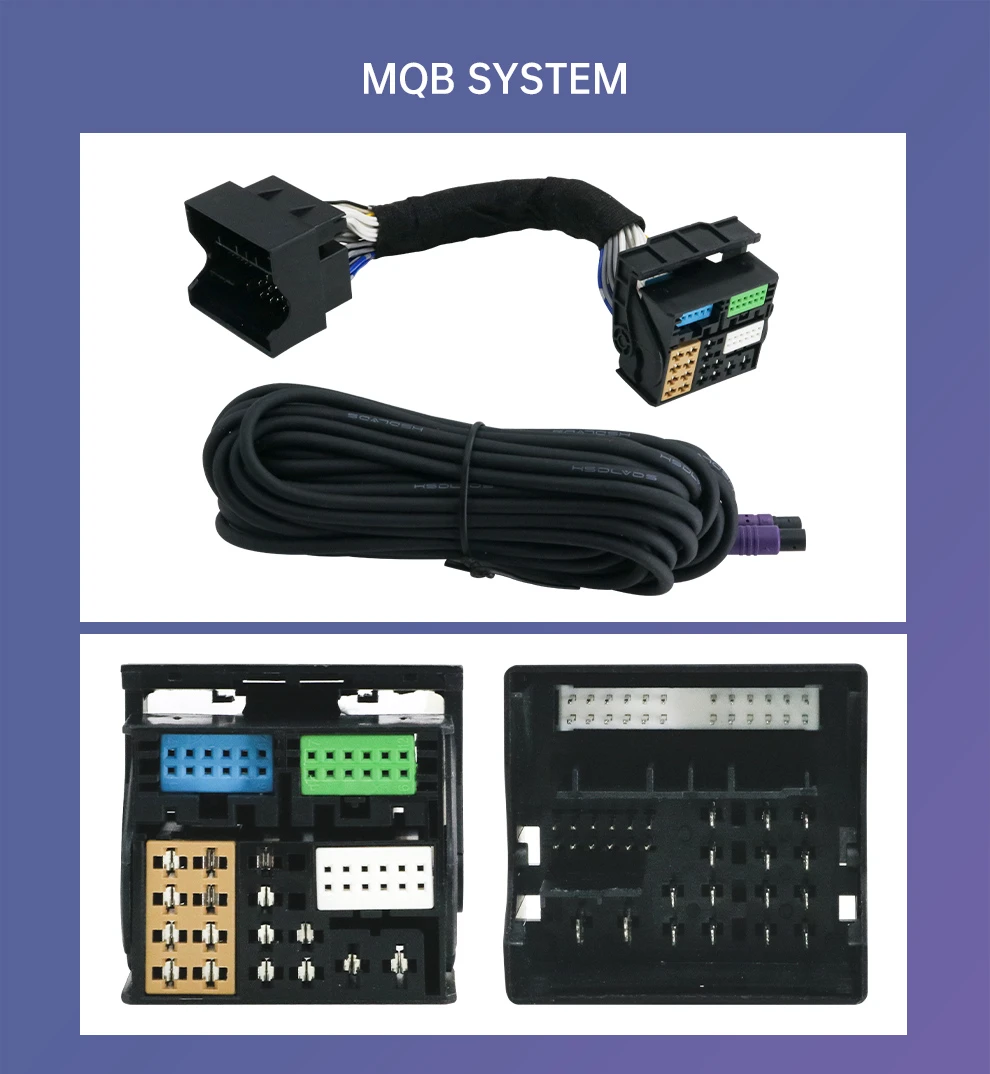

- FAKRA Z-compliant connectors for direct plug-in compatibility with factory harnesses.
- ODIS diagnostic system auto-detection ensures instant recognition and configuration.

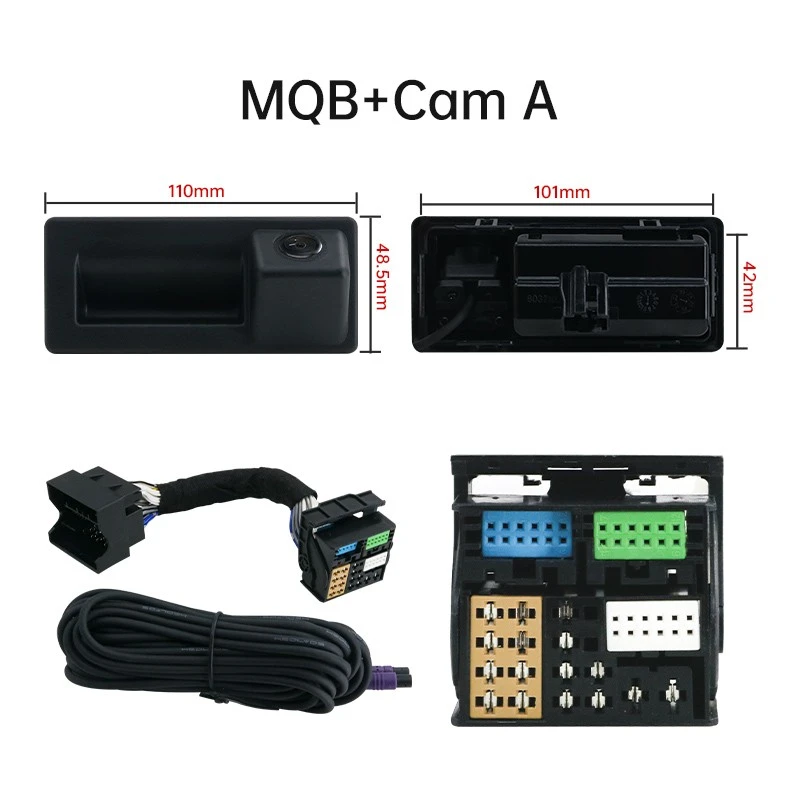

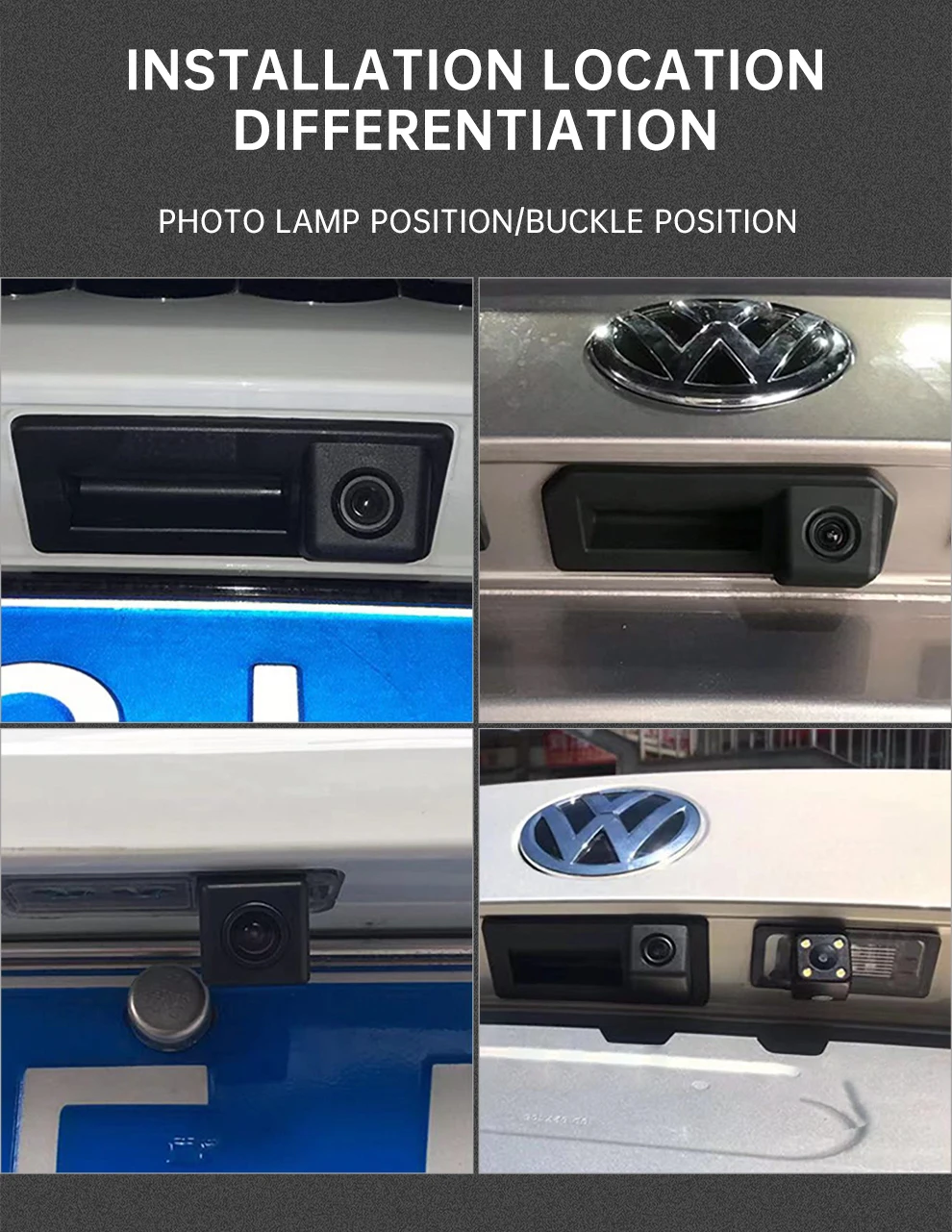

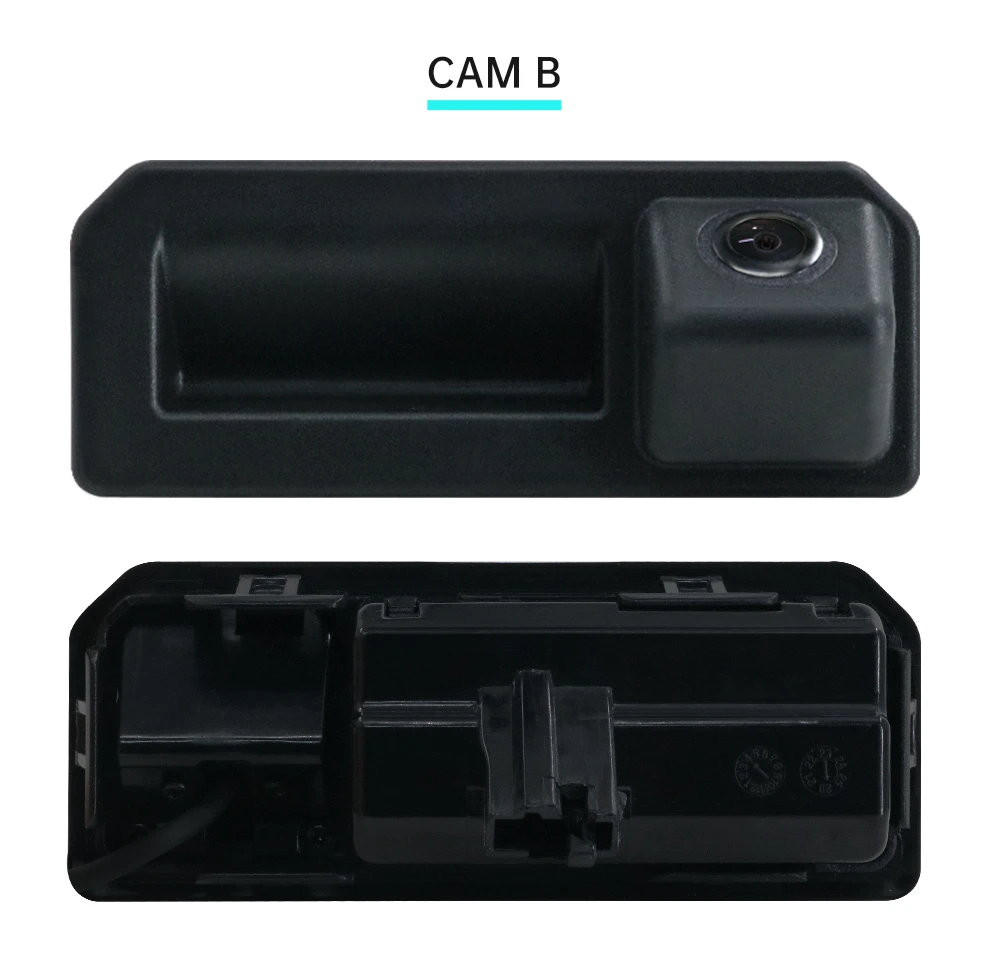

- Utilizes original mounting points (compatible with 5GD 807 435 bracket).
Robust Environmental Performance
- IP69K Certification: Resists high-pressure steam jets (100 bar at 80°C) and dust ingress.
- Dual Thermal Management:
- Built-in PTC heating film for cold starts at -40°C.
- Liquid-cooled heat dissipation sustains operation at +105°C.
Technical Specifications
|
Parameter |
Specification |
|
Resolution |
2560 × 1440 @30fps (4:3 industrial ratio) |
|
Signal Interface |
LVDS (APIX2) |
|
Protocol Support |
CAN FD (2Mbps), MIB 2.5/MIB 3 native protocols |
|
Power Consumption |
2.1W active / <0.5W standby |
|
Boot Time |
<800ms from ignition to live view |
|

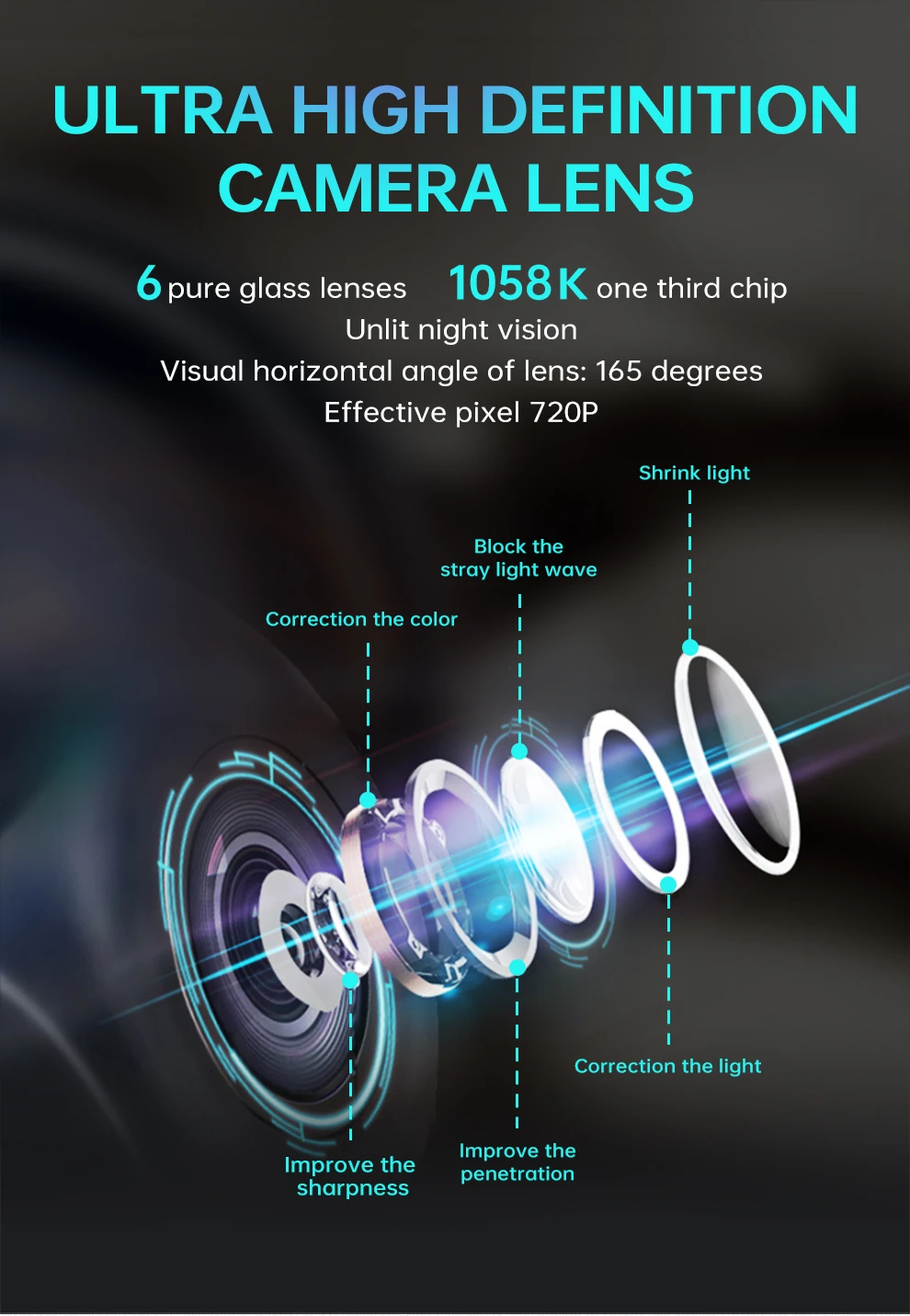

Lens System |
6-glass fisheye correction with anti-fog coating |
|
Housing Material |
Die-cast aluminum with anti-corrosion treatment |
Installation Advantages
- No Programming Required: Automatically activates video channels through CAN bus communication.
- Precision Alignment: Integrated laser-etched alignment markers ensure ±0.25mm positioning accuracy.
- Diagnostic Readiness: Fully compatible with VAS 6154/ODIS tools for real-time system health checks.

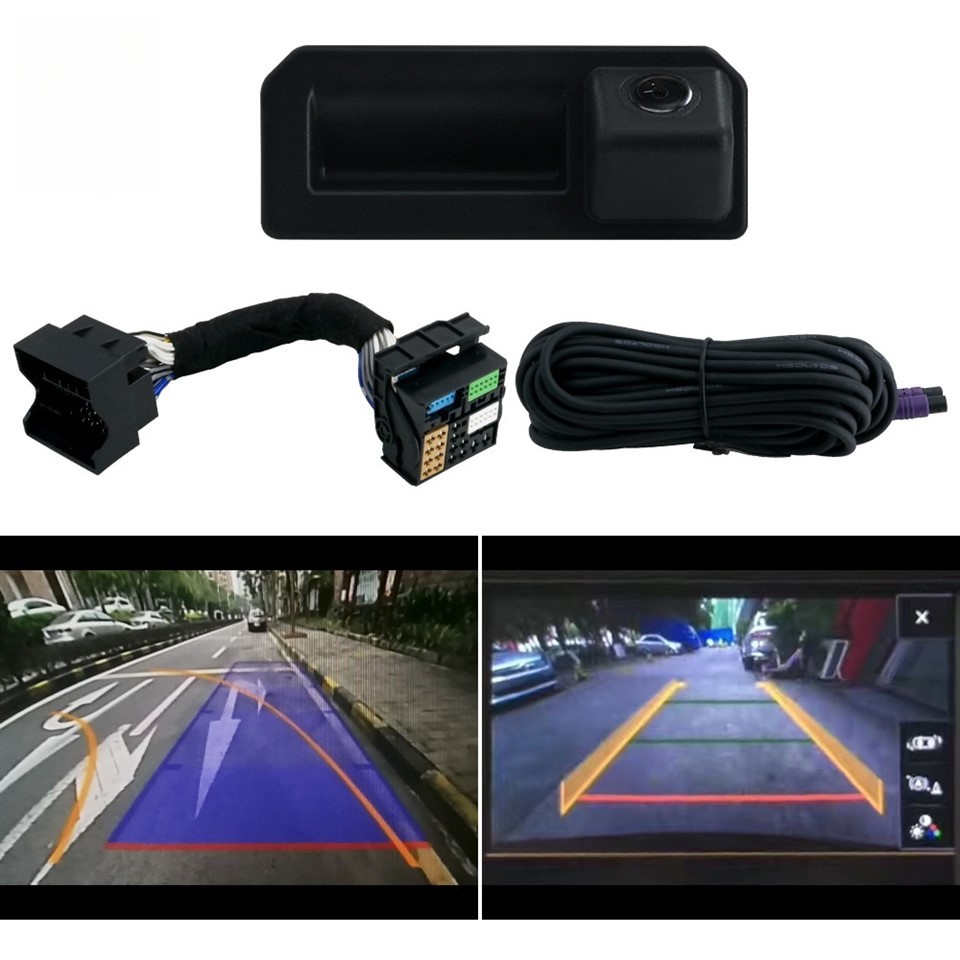

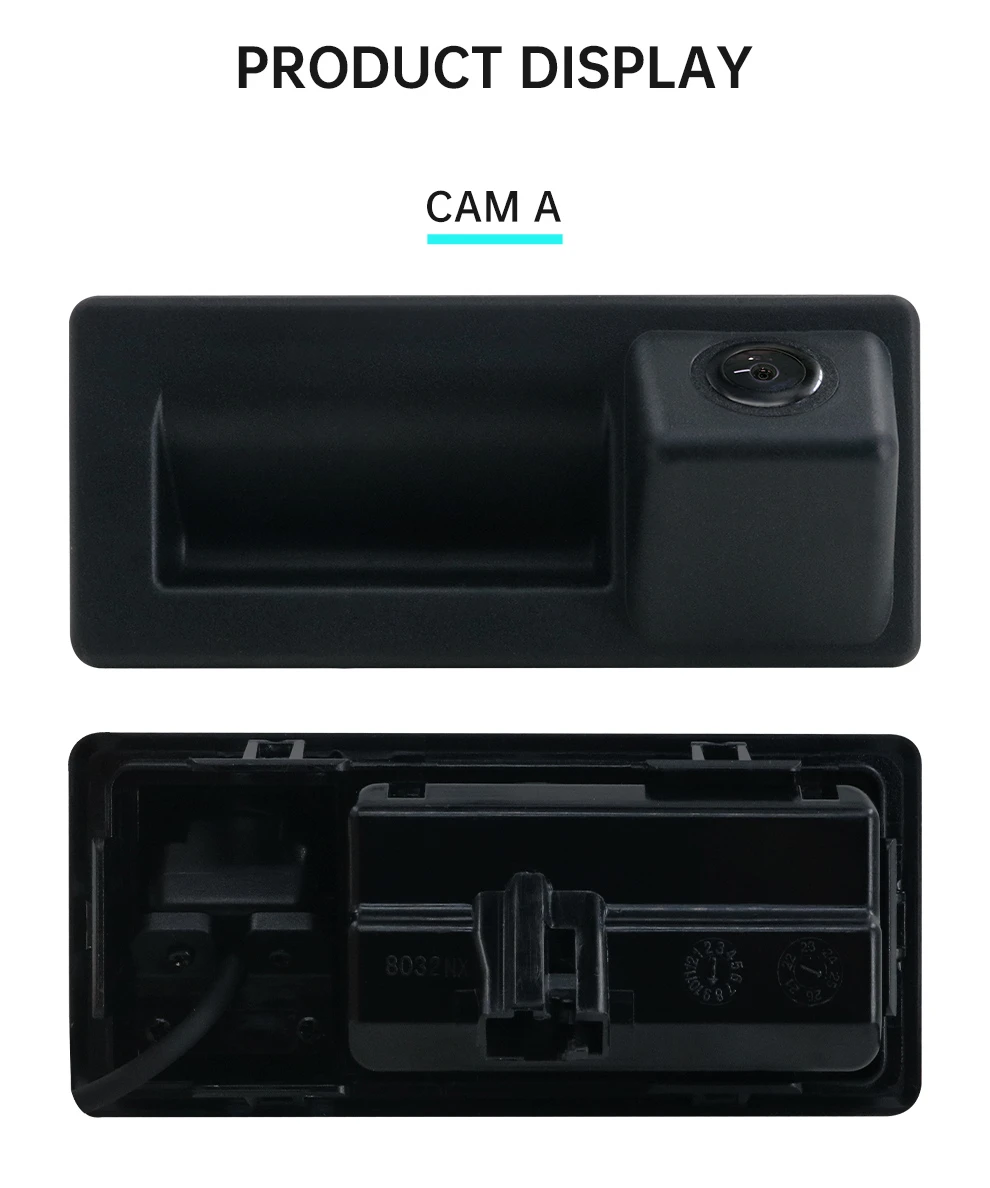

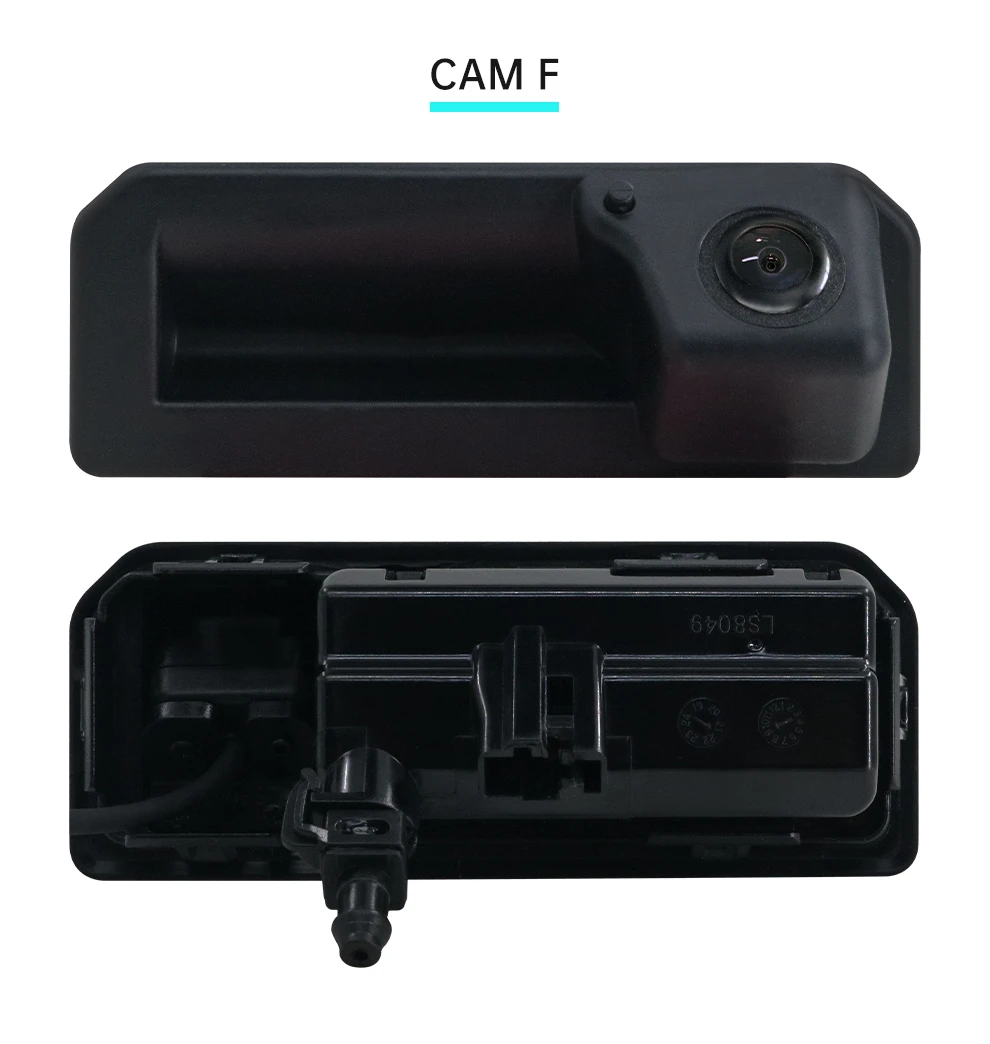

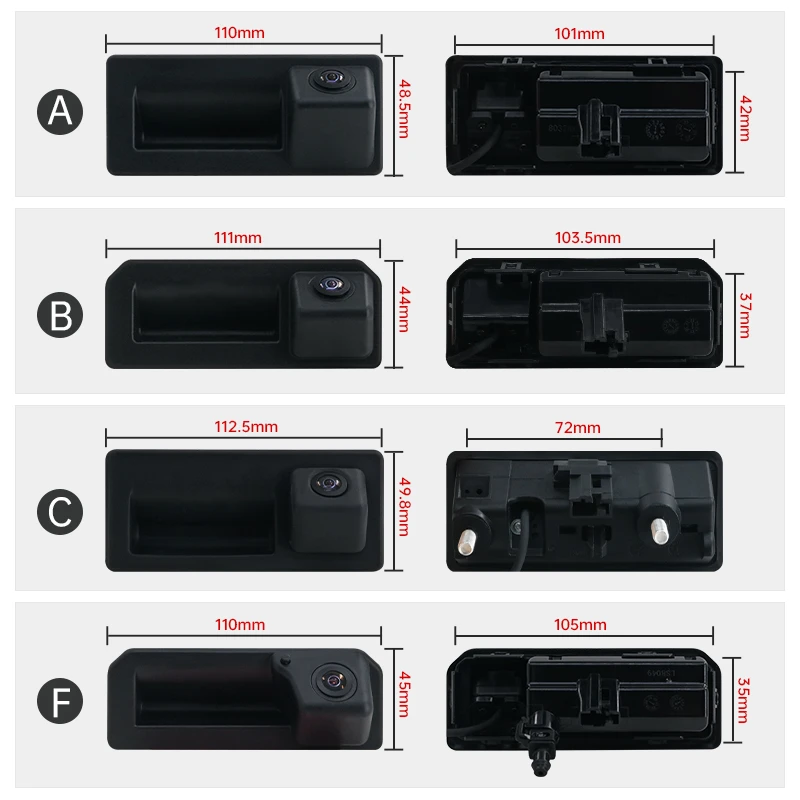

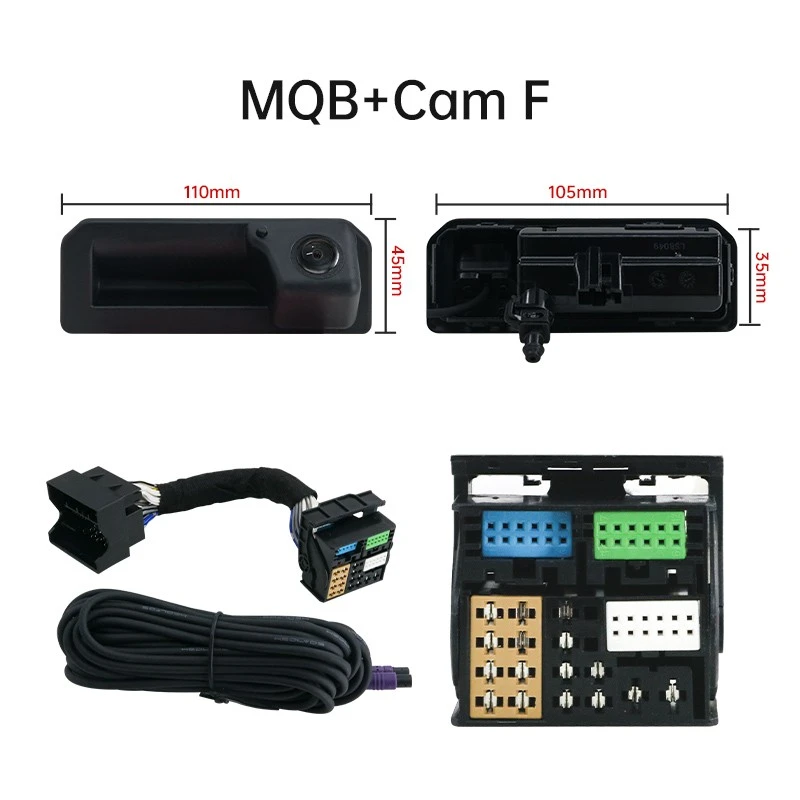

Product images
