Product Details
Core Specifications & Performance
Imaging Performance
Resolution Options:
Standard: 720×540 to 648×488 pixels
Premium: CVBS/AHD 720P (1280×720)
Sensor Choices:
Sony CCD (e.g., PC7070K): 0.001Lux low-light sensitivity
CMOS (e.g., PC4089): Budget daytime solution
Rugged Construction
Protection Rating: IP67/IP68 with multi-layer sealing (-30℃~80℃ tolerance)
Shock Resistance: 10G vibration-proof for commercial vehicle abuse
standardized production
Viewing Angles: 170° diagonal / 130° horizontal
Blind Spot Reduction: 40% wider than standard 120° cameras
Key Features
Night Vision Enhancement
o 6-9 IR LEDs with 3m illumination range
o Auto-exposure adjustment for fog/rain
Electrical Compatibility
Voltage: 12V default (24V customizable)

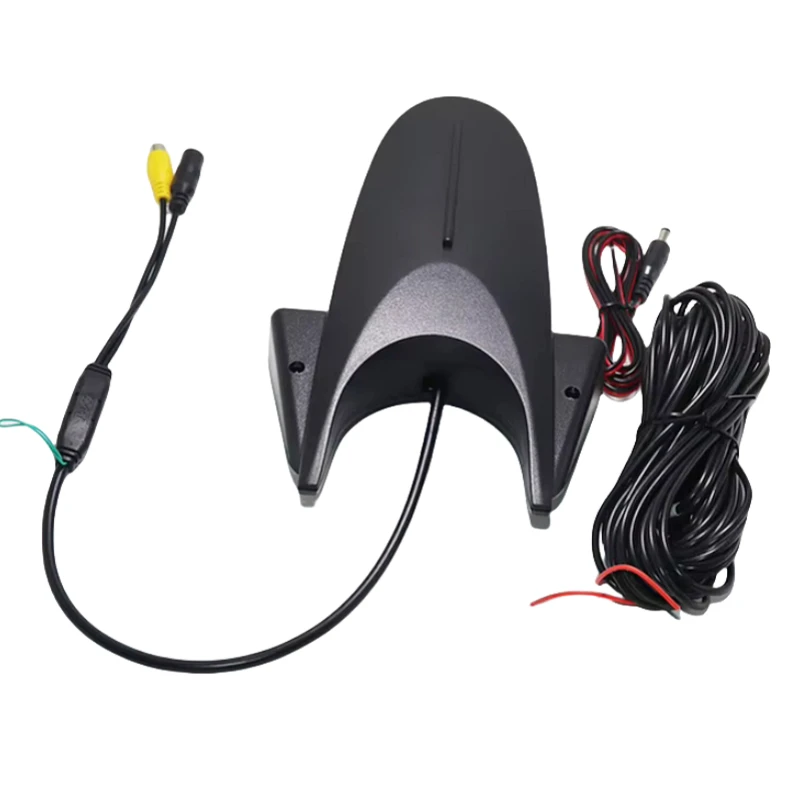

Signal Output: CVBS/AHD via RCA connectors
Installation Flexibility
Mounting Options:

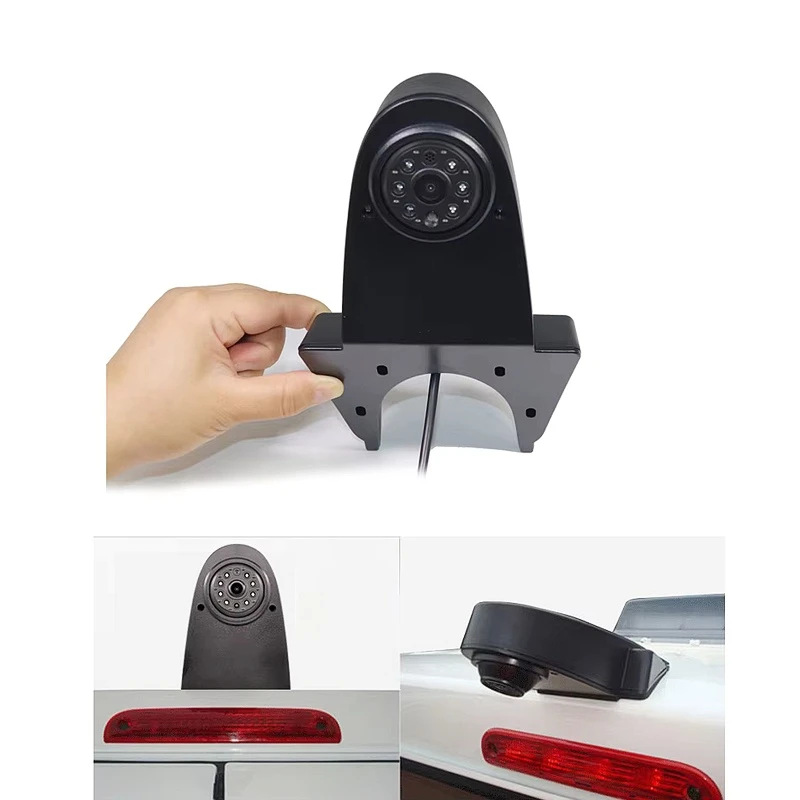

High-mount brake light (GM OEM integration)
License plate bracket (universal fit)
Expandability: Optional radar alerts / 360° system sync
Installation Guidelines
Position Selection
Brake Light Integration: For Chevrolet Express/GMC Savana with factory cutouts
License Plate Mount: Universal bracket for non-OEM vehicles
Power & Wiring
Power Source: Connect to reverse light circuit (18AWG recommended)
Voltage Stabilization: Relay required for 24V systems
Routing & Securing
Cable Path: Route along headliner/floor channels with nylon ties
Waterproofing: Seal connectors with marine-grade adhesive
Purchasing Recommendations
Sensor Priority
CCD for Professionals: Night operations (Sony PC7070K recommended)
CMOS for Economy: Daytime urban fleets
Compatibility Checklist
Confirm vehicle mold compatibility (request CAD files if needed)
Prioritize suppliers offering:
OEM branding/interface customization
Regional installation partners
