Product Details
Core Features
Precision Fitment for Older Models
• Custom-Molded Design: Tailored to match the 2006-2013 Transit's high-mount stop lamp cavity, compatible with short/long wheelbase chassis (T250-T350).
• Plug-and-Play Integration: Preserves original wiring; supports 24V diesel models (customizable wide-voltage version available).
Durable Night Vision Performance
• Sony CCD Sensor: 700 TVL resolution with 0.001Lux low-light sensitivity, paired with 6 infrared LEDs for clear imaging in darkness, rain, or fog.
• 170° Wide-Angle Coverage: Eliminates rear and side blind zones, optimized for tight maneuvers in warehouses or aging urban areas.
Restoration-Focused Protection
• IP67 Waterproof/Dustproof: Addresses water ingress from aging OEM cameras, withstands high-pressure washing and temperatures (-20°C to 75°C).
• Corrosion-Resistant Housing: Salt-proof coating + oxidation-resistant finish, ideal for coastal regions or high-humidity environments.
Smart Upgrade for Older Vehicles
• Fixed Guidelines: Electronic reference lines assist distance judgment during reversing, with mirror/flip image switching.

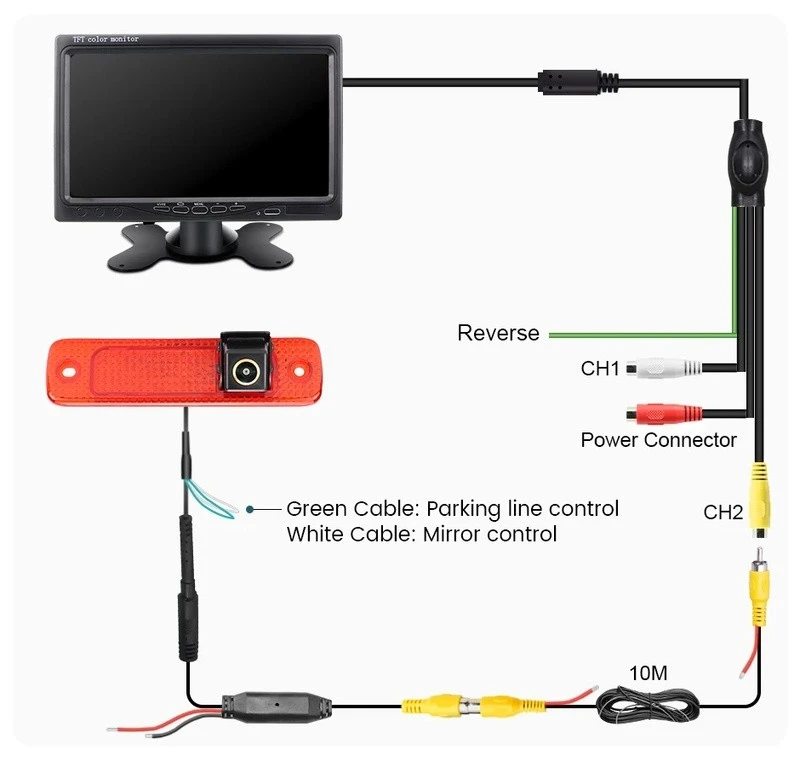

• Universal Signal Compatibility: CVBS signal output via RCA connector, compatible with 7-10" analog OEM screens or digital aftermarket monitors.
Technical Specifications
|
Specification |
Details |
|
Resolution |
700 TVL (Sony CCD sensor) |
|
Lens Angle |
170° diagonal / 130° horizontal |
|
Waterproof Rating |
IP67 (temporary submersion & dustproof) |
|
Operating Voltage |
DC 12V (24V version customizable for diesel models) |
|
Video Output |
CVBS signal via RCA interface |
|
Vehicle Compatibility |
Ford Transit 2006-2013 (all variants) |
Product images
