Product Details
Core Points
Vehicle-Specific Precision Fit
o Direct OEM brake light replacement with ±0.1mm tolerance molds.
o Compatibility:
Chevy Savana Cargo VAN (2003-2025)
GMC Platform Vehicles (2003-2025)
Commercial-Grade Visibility
o 1080P Resolution: 170° diagonal coverage eliminates rear/side blind spots.
o 0.001Lux Night Vision: 6 IR LEDs for total darkness/rain conditions.
Military-Spec Durability

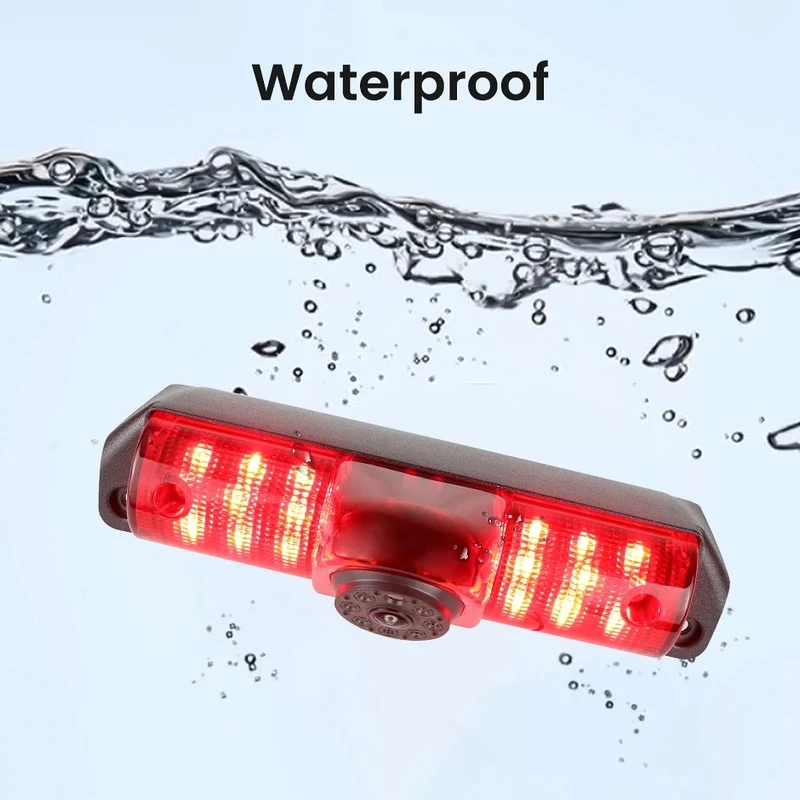

o IP67 Certified: Triple-sealed against high-pressure wash and temporary immersion (1m/30min).
o Extreme Environment: Operates from -30℃ to 80℃ with 10G shock resistance.
Customization Flexibility

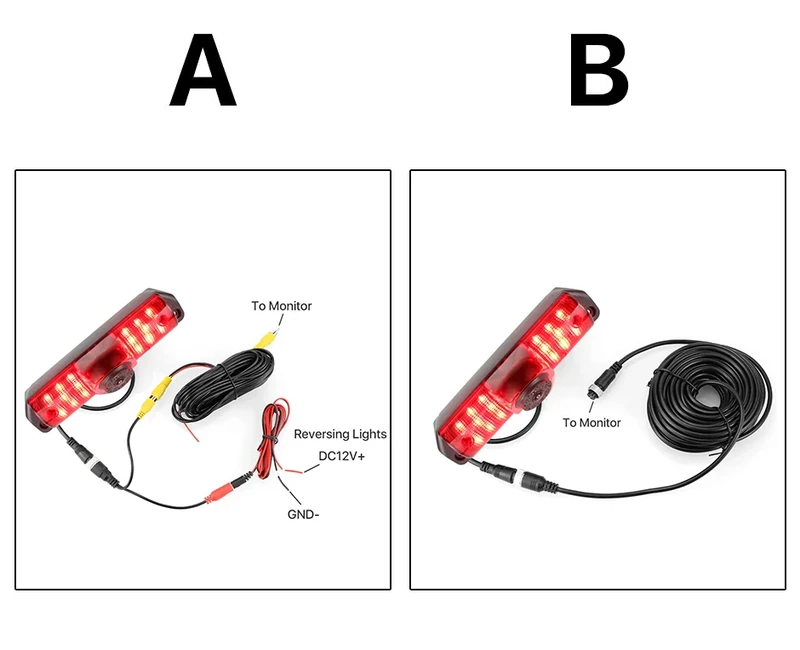

o Signal Options: CVBS/AHD output for analog/digital displays.
o Add-Ons: Dynamic guidelines, audio modules, and smart infotainment integration.
Technical Specifications
|
Parameter |
Specification |
|
Resolution |
1080×720@30fps (700TVL CCD optional) |
|
Viewing Angle |
170° diagonal |
|
Waterproof Rating |
IP67 (dustproof & immersion resistant) |
|
Operating Voltage |
DC12V (24V customizable) |
|
Video Output |
CVBS/AHD, 1.0Vp-p, 75Ω impedance |
|
Minimum Illumination |
0.001Lux (IR on) |
|
Power Consumption |
≤12W |
User Pain Point Solutions
- Large Blind Zones → 170° coverage + dynamic guidelines for obstacle detection.
- Waterproof Failure → IP67 triple sealing prevents fogging/leaks.

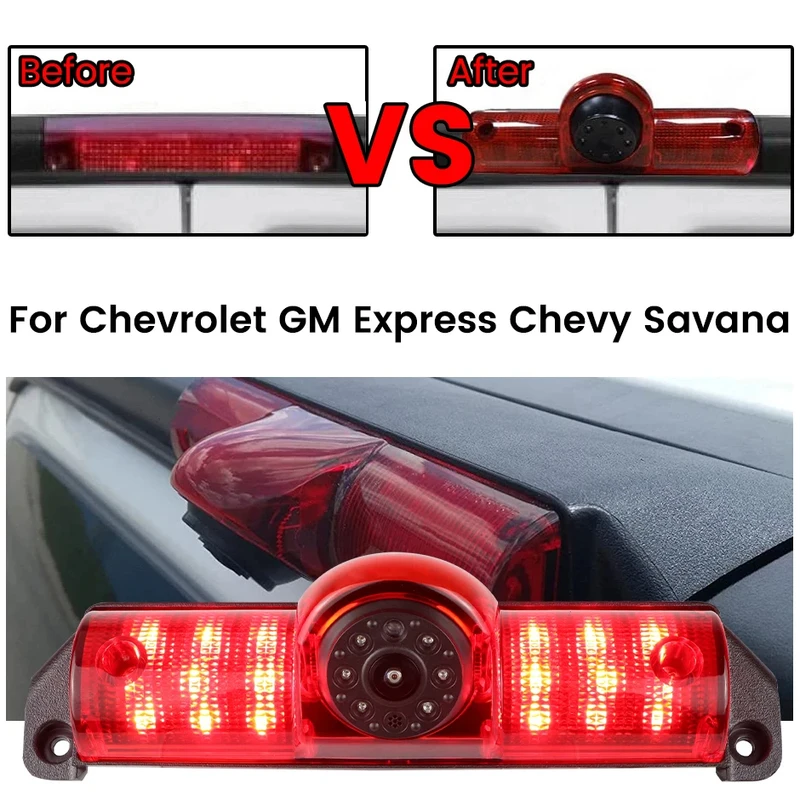

- Complex Retrofits → Plug-and-play design preserves factory wiring.
Vehicle Compatibility List
Chevy Savana Cargo VAN
2003-2025 (All trims)
GMC Savana
2003-2025 (Cargo/Passenger)
