Product Details
Key Points

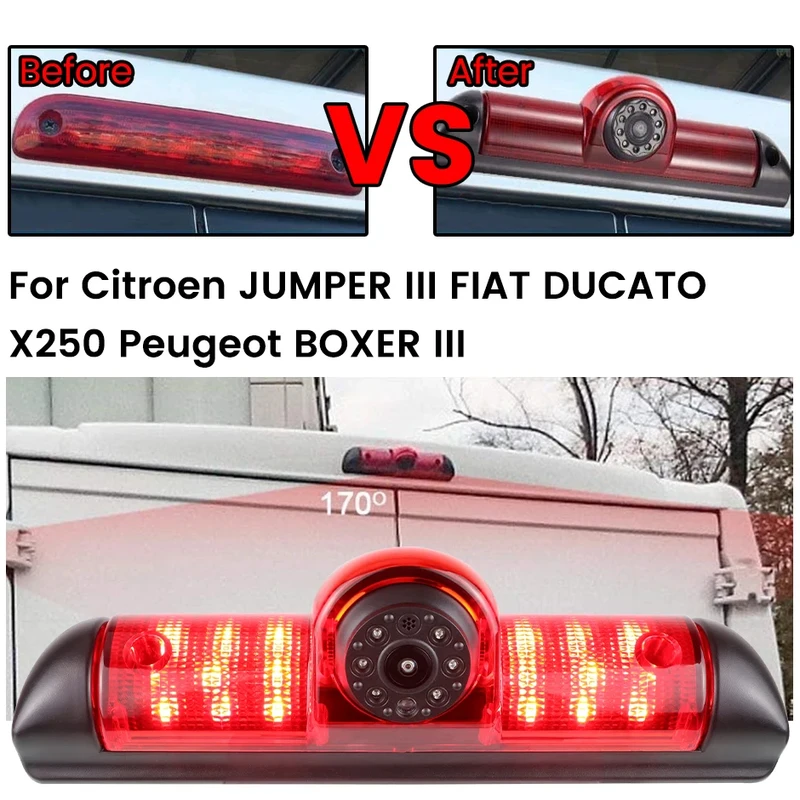

OEM-Integrated Installation
o Direct replacement for factory high-mount brake light position with precision molds.
o Compatibility:
Fiat Ducato (2006-2025)
Citroën Jumper/Peugeot Boxer (All variants)
Night Vision & Coverage
o Resolution Options: 420TVL/600TVL/700TVL (Sony CCD sensor)
o 170° Diagonal Angle: Eliminates blind spots for large vehicles (130° horizontal coverage).
o 0.001Lux Sensitivity: Infrared illumination for total darkness/rain conditions.
Military-Grade Protection

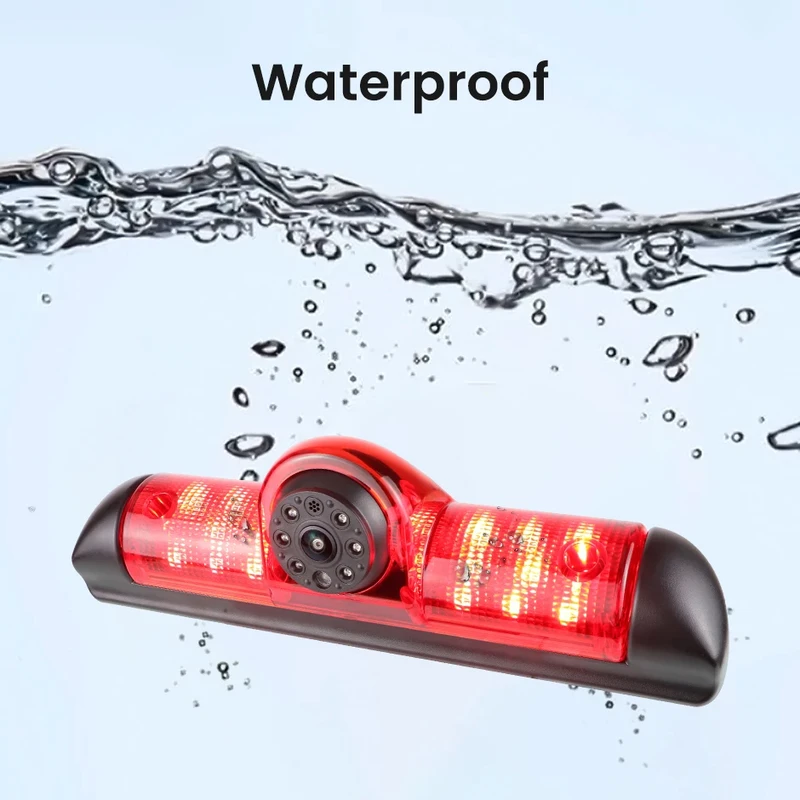

o IP68 Certified: Triple-sealed against high-pressure wash and 1m water immersion.
o Extreme Durability: Operates from -30℃ to 80℃ with 10G shock resistance.
Customization Flexibility
o Voltage: 12V standard / 24V optional (surcharge applies).

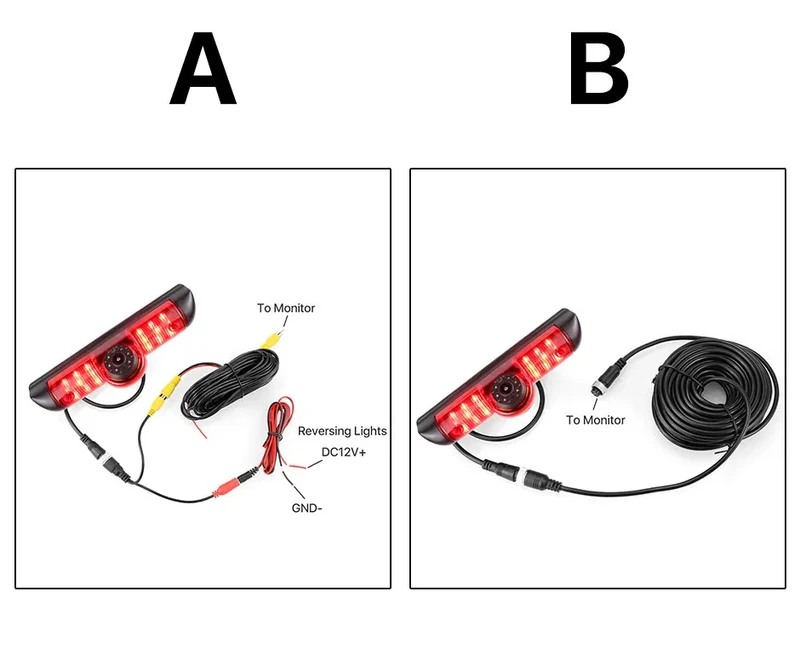

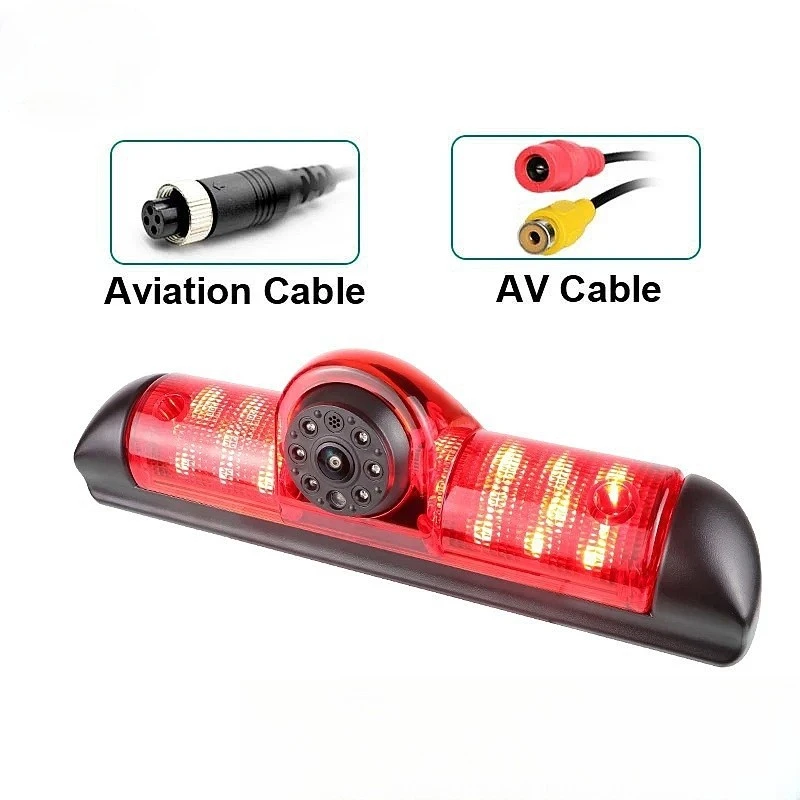

o Signal & Interfaces: NTSC/PAL selectable (default NTSC mirror), RCA/aviation connectors standard, BNC optional.
o Add-Ons: Optional guidelines overlay / audio transmission module.
Technical Specifications
|
Parameter |
Specification |
|
Resolution |
420TVL/600TVL/700TVL (Sony CCD) |
|
Viewing Angle |
170° diagonal / 130° horizontal |
|
Waterproof Rating |
IP68 (immersion & dustproof) |
|
Operating Voltage |
DC12V (24V customizable) |
|
Video Output |
CVBS signal, 1.0Vp-p, 75Ω impedance |
|
Minimum Illumination |
0.001Lux (IR on) |
|
Power Consumption |
≤12W |
|
Signal Standard |
NTSC/PAL (default NTSC mirrored) |
Vehicle Compatibility List
- Fiat Ducato: 2006-2025 (3rd/4th Gen)
- Citroën Jumper: All generations (1994-Present)
- Peugeot Boxer: All generations (1994-Present)
