VW Flip-Up Logo Motor Drive Accessories Explained:

Essential Upgrade Guide for Old VW Owners (2026 Edition)

Author: Anna

Hello everyone, I'm Anna - a 10-year-owner of a Magotan B7 (Passat B7 in some markets) and a dedicated car modification enthusiast. Today we're talking about one of the most popular upgrade parts for VW models: the flip-up logo motor drive. If you're driving an older VW such as Magotan/Passat, Lavida/Lingdu, CC, Golf 7/7.5, T-Roc (Tansong), Polo, Santana, or even Lavida, you're almost certainly familiar with the "flip-up reverse camera" mod. At the core of this system is the motor drive accessory - it receives the reverse gear signal, automatically flips the VW emblem (LOGO) upward by 90–120 degrees to expose the camera lens, and smoothly retracts it when you're done, giving that luxurious, high-end car ritual feel.

Why write a dedicated blog post about the flip-up motor drive in 2026? Because even though this small part looks insignificant, it is the single most critical component that determines whether the entire flip-up system succeeds or fails. A faulty motor = dead camera system. Choose the right one and it can easily last 3–5 years. The majority of online complaints about flip-up cameras "breaking quickly" or "expensive to repair" actually stem from motor failures. Today I'll break it down from four angles: working principle, purchasing guide, DIY installation, and maintenance - around 1000 words of pure, practical content, perfect for budget-conscious VW owners who like to DIY.

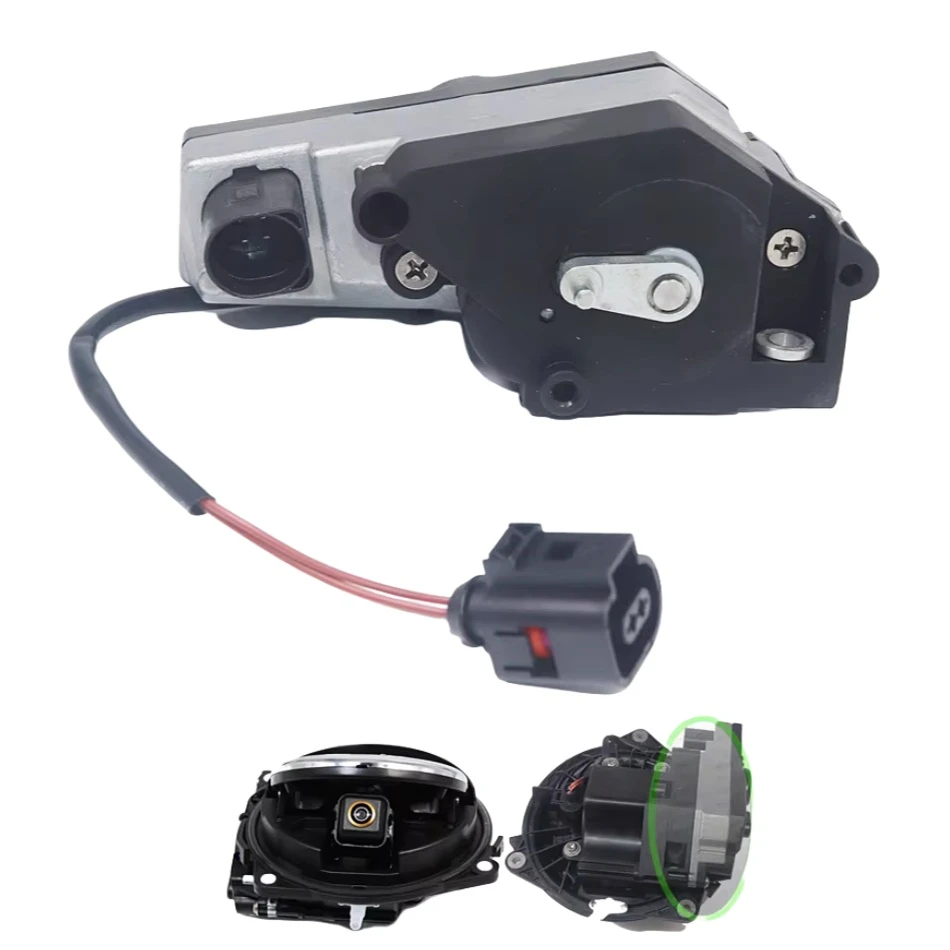

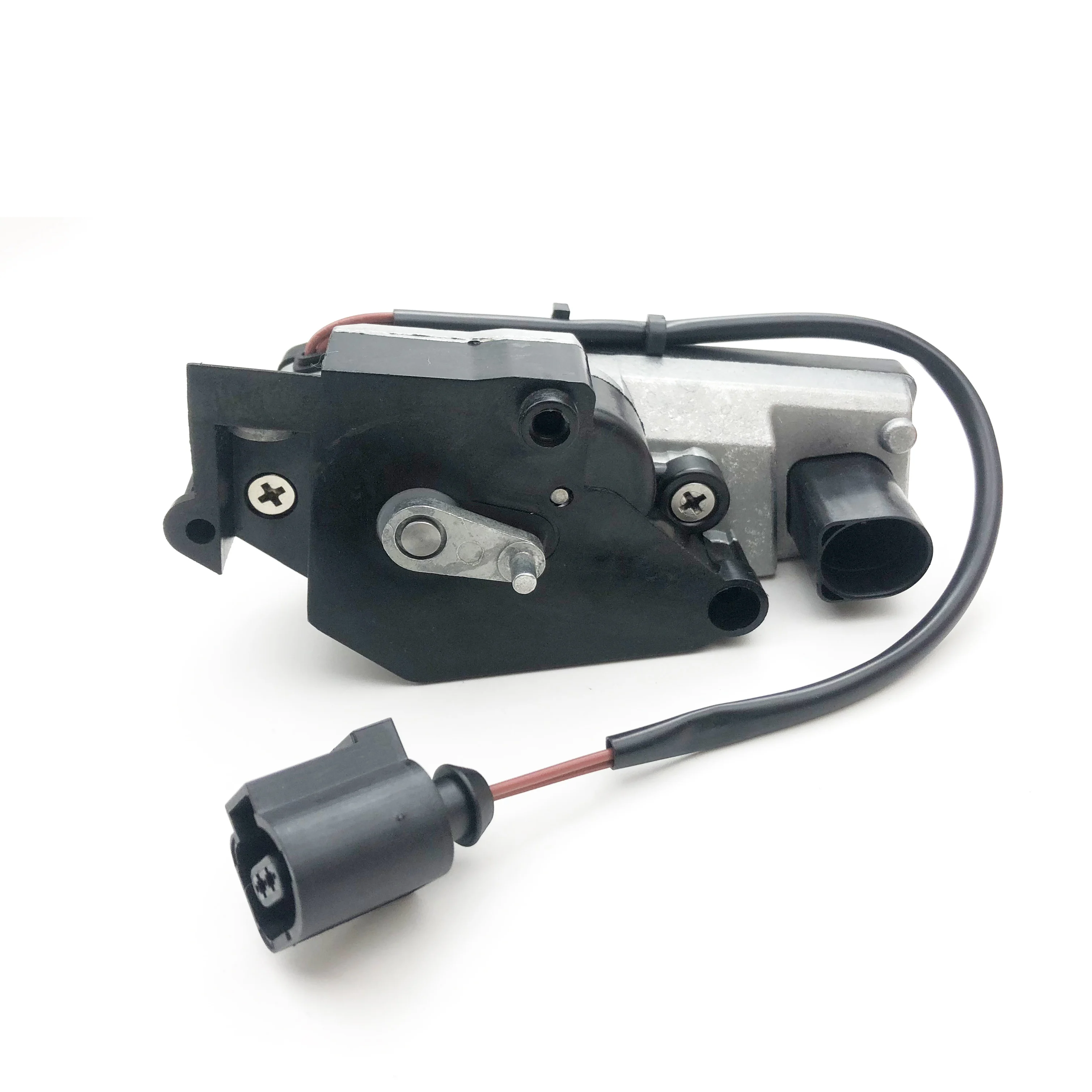

Let's start with the basics. The flip-up motor drive is a compact electromechanical system mounted behind the VW emblem. Its job is to control the flipping motion of the LOGO. Typical components include:

A:Motor Body The heart is a DC motor (or stepper/servo motor in 2026 mainstream products). Power usually 5–10 W. Current high-quality versions use stepper motors (high precision, very quiet) or servo motors (fast response, stable torque). A gear train amplifies torque so the emblem flips up smoothly.

B:Drive Circuit Board This is the brain - usually integrates an MCU chip such as STM32 or an Arduino-compatible module. It captures the reverse signal (from trunk light wire or CAN bus), then sends PWM signals to drive the motor. Better versions include limit switches and overload protection to prevent jamming or burning out.

C:Transmission Mechanism Consists of gears, linkages, and bearings. Cheap versions use plastic gears (wear out quickly); mid-to-high-end use metal alloy gears (doubled durability). The whole assembly is sealed inside a waterproof housing - IP65 rating or higher is necessary to withstand rain and car-wash pressure.

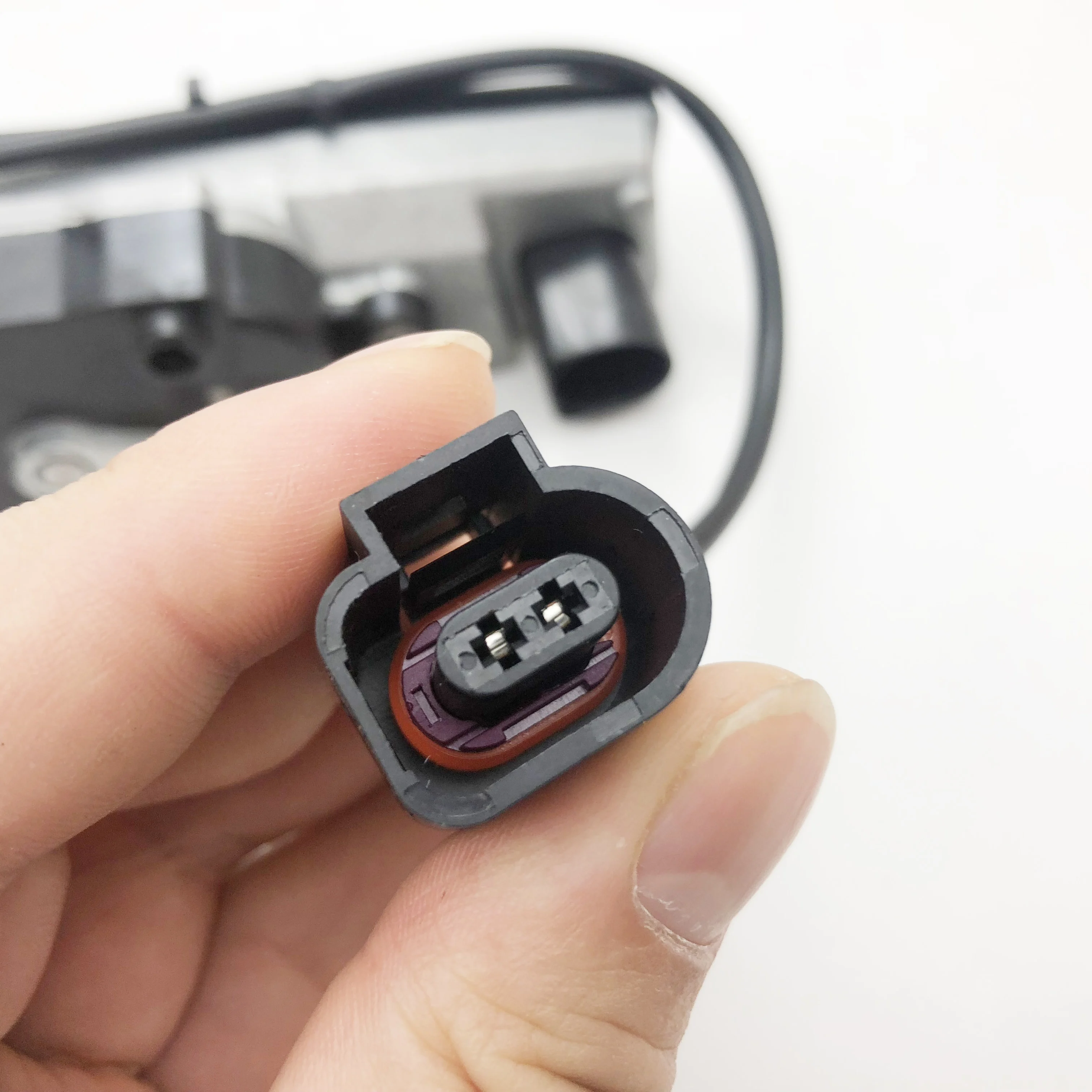

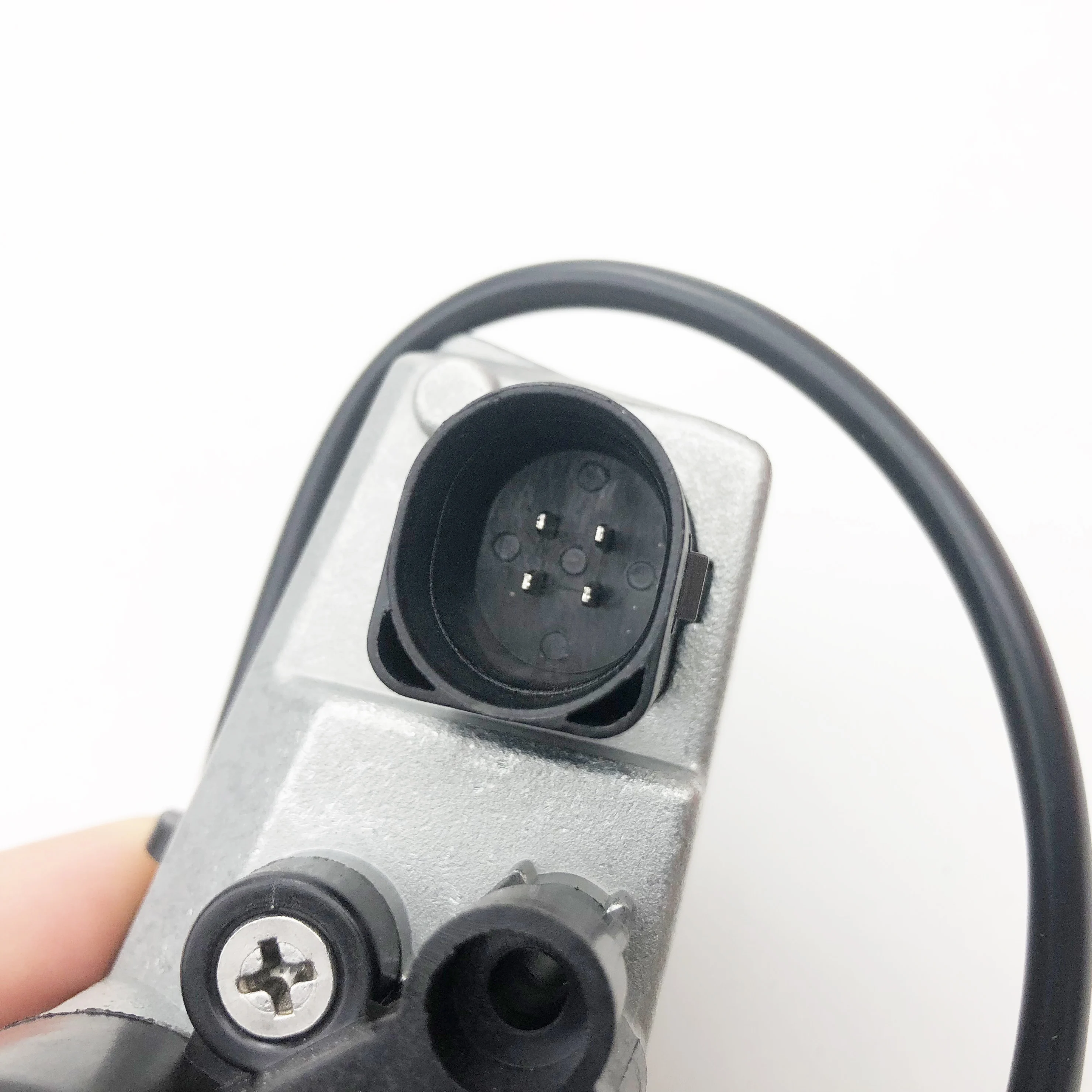

D:Interfaces & Compatibility Standard harness is 5-pin or 6-pin. PQ platform cars (older Magotan, older Golf) mostly use 5-pin; MQB platform (Golf 7+, Lavida/Lingdu, T-Roc) mostly use 6-pin. Always confirm with the seller: "Does it support my car's VIN or platform?"

When shopping, don't just look at the full camera kit price - always ask for the motor specifications separately. The market can be divided into four tiers. Here's a comparison table (based on early 2026 Taobao/JD pricing):

Entry-level products are often refurbished units pulled from scrapped cars - weak circuit boards overheat easily. We recommend mid-range options, such as the top-selling "Zhi Xing Flip Motor" on Taobao, which uses Japanese-imported stepper motors: stable torque, flip time under 2 seconds.

Why prioritize versions with intelligent protection in 2026? VW electrical systems are complex, especially on older cars where CAN bus interference is common. High-end motors include EMC shielding to reduce signal conflicts. Compatibility note: PQ platform = 5-pin, MQB = 6-pin. Always ask the seller: "Does it support my car's VIN code?"

Installation is not difficult. Tools needed: T20 screwdriver, drill (optional), multimeter. The whole job takes about 1 hour and is suitable for owners with basic mechanical skills. Steps:

Preparation & Disassembly Park the car, turn off the engine, disconnect the negative battery terminal. Pry open the trunk trim panels and locate the emblem mounting screws (usually 4–6). Carefully remove the LOGO without scratching the paint.

Motor Installation Secure the new motor to the emblem bracket with screws. Connect the transmission linkage and manually test the flip angle for smooth movement.

Wiring Connect the motor harness: red wire to reverse light positive, black to ground. If it has a CAN module, plug into the OBD port. Premium versions require Bluetooth pairing via mobile APP.

Testing & Tuning Reconnect the battery, shift into reverse and observe the flip action. Check for stuttering; use multimeter to confirm stable 12V supply.

Sealing & Reassembly Seal all connections with silicone or hot glue to prevent water ingress. Reinstall trim panels and clean up.

Precautions: Never install in rainy weather; weak old batteries should use a voltage stabilizer; unusual motor noise usually means gears need silicone lubricant. Monitor closely during the first week. DIY failure rate is about 10% - mostly due to incorrect wiring. If you're not confident, take it to a shop.

Motor lifespan heavily depends on maintenance. 2026 owner feedback shows well-cared-for units easily exceed 3 years. Daily care tips:

Cleaning - Every 3 months, wipe LOGO gaps with a soft cloth to prevent dust jamming gears. Avoid directing high-pressure car-wash jets at the emblem.

Inspection - Monthly reverse-gear test: listen for noise, watch flip speed. Low battery voltage will affect performance.

Upgrades - When the motor ages, replace just the drive board (no need for full replacement). Open-source communities offer firmware updates for better response.

Common fault fixes:

No flip action - Check power (test reverse light with a bulb). Bad board? Replace it (cheap fix).

Jamming / loud noise - Worn gears - add lubricant or upgrade to metal gears.

Water short circuit - Disassemble, dry thoroughly, replace waterproof gasket. Severe case = full motor replacement.

Signal interference - CAN bus conflict - use diagnostic tool to clear codes.

In short, the flip-up motor is not a disposable part. Proper maintenance gives excellent value compared to expensive OEM replacement.

Conclusion: Is It Worth Spending Money on a Flip-Up Motor Drive?

As a long-time Magotan owner, I've had my flip-up system for 3 years and only replaced the motor once (upgraded from entry to mid-range). The combination of ritual satisfaction and practical benefit makes it absolutely worth the money. But remember: cheap is never good - start from mid-range upward. Tight budget? Begin at 180 RMB; want the best? 400+ RMB won't disappoint. What VW model do you drive? Have you installed a flip-up motor yet? Feel free to share your experience in the comments - let's help each other avoid mistakes and upgrade our cars! Please contact us via email: jjdcamera88@gmail.com or WhatsApp: +86 18819078664 You can also leave a message on social media. For more information, please visit our website: www.jjd-camera.com Thank you!
