Product Details
Core Innovations
Comprehensive Classic Model Support
• Native compatibility with Audi 3G MMI systems (7-8" navigation screens)
• Retains factory navigation, BOSE audio controls, and climate settings
HD Parking Assistance
• Dynamic steering-sync trajectory (±1° accuracy)
• Radar distance overlay (OEM/aftermarket radar compatible)
Cost-Efficient Solution
• No programming or wire cutting required
• Supports NTSC/PAL/AHD aftermarket cameras
Technical Specifications
|
Parameter |
Specification |
|
Compatible Models |
2009-2017 Audi A6L C6/C7/A7/A4L B8/A5/S5 8T/Q5 8R/Q7 4L/A1/Q3 (Factory Navigation) |
|
System Compatibility |
Audi 3G MMI (RNS-E/RNS810) |
|
Guidance System |
Dynamic Steering-Sync Trajectory |
|
Protection Rating |
IP65 Dust/Water Resistance |
Functional Enhancements
Dynamic Trajectory System
• Precision Steering Sync: Real-time 1° angle synchronization (supports trailer mode)
• Multi-Sensor Integration: Processes data from 4-8 parking sensors (<5cm error)
Military-Grade Reliability
• 6-Layer Gold-Plated PCB: Oxidation and EMI resistance
• Full-Metal Shield: 360° electromagnetic protection
• Stress Testing:
o 72-hour salt spray exposure
o 500-hour continuous 85℃ thermal endurance
Vehicle Compatibility Matrix
|
Model |
Production Years |
Key Compatibility Features |
|
Audi A6L (C6/C7) |
2010-2011 |
Factory navigation system retention |
|
Audi A7 (C7) |
2010-2011 |
Dynamic grid line adjustment |
|
Audi A4L (B8) |
2009-2016 |
Steering wheel control synchronization |
|
Audi Q5 (8R) |
2009-2017 |
Off-road trajectory optimization |
|
Audi Q7 (4L) |
2010-2012 |
Rear parking sensor integration |
Installation Advantages
Plug-and-Play Integration
• Direct OEM quadlock connector compatibility
• Pre-configured vehicle-specific wiring harnesses
• 15-minute installation process
Camera Flexibility
• Automatic signal detection (NTSC/PAL/AHD)
Technical Specifications Breakdown
Dynamic Guidance System
• Steering Angle Input: 0-720° full-range detection
• Trailer Mode: Calculates paths for trailers up to 8 meters
• Radar Fusion: Combines data from ultrasonic sensors and cameras
Environmental Resilience
• Operating Temperature: -30℃ to +85℃
• Humidity Resistance: 95% non-condensing
User Benefits
- Enhanced Safety: 60% faster obstacle recognition vs analog systems
- Factory Compliance: 100% original system functionality retention
- Rapid Activation: System readiness within 0.7 seconds of ignition
- Multi-Vehicle Support: Single module for 15+ Audi models

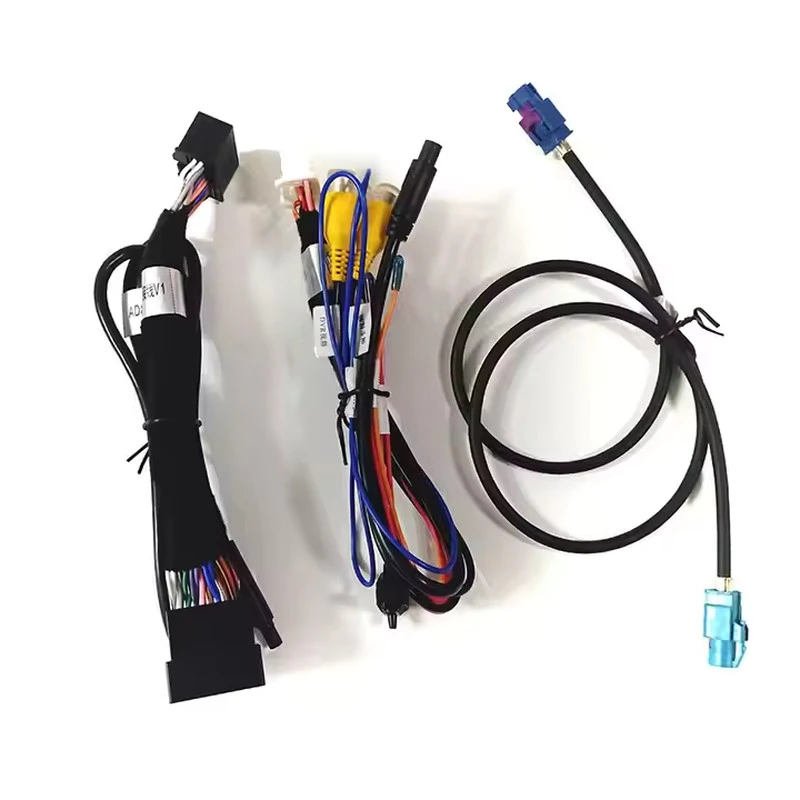

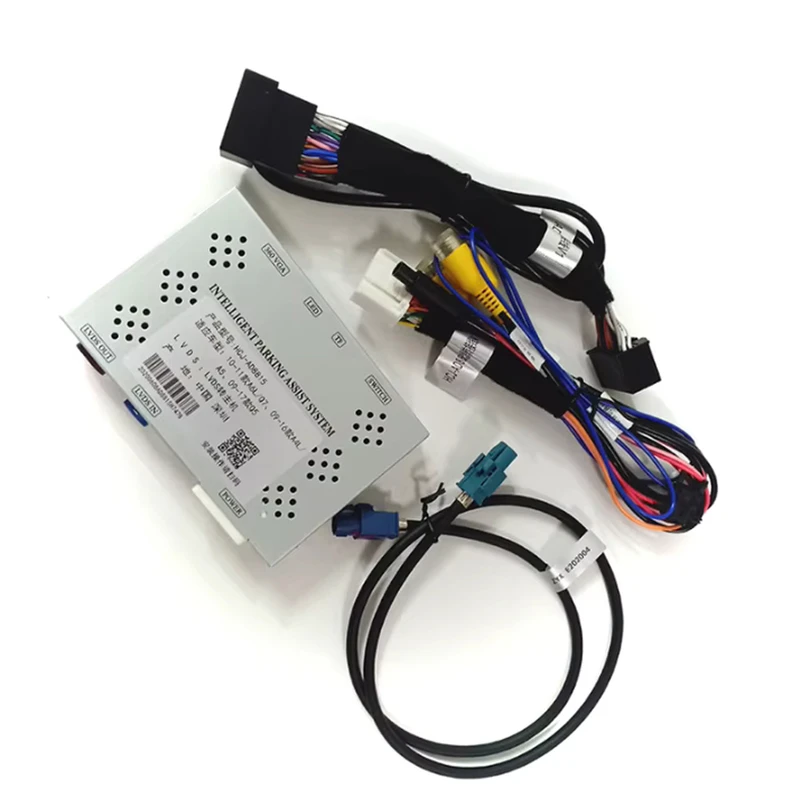

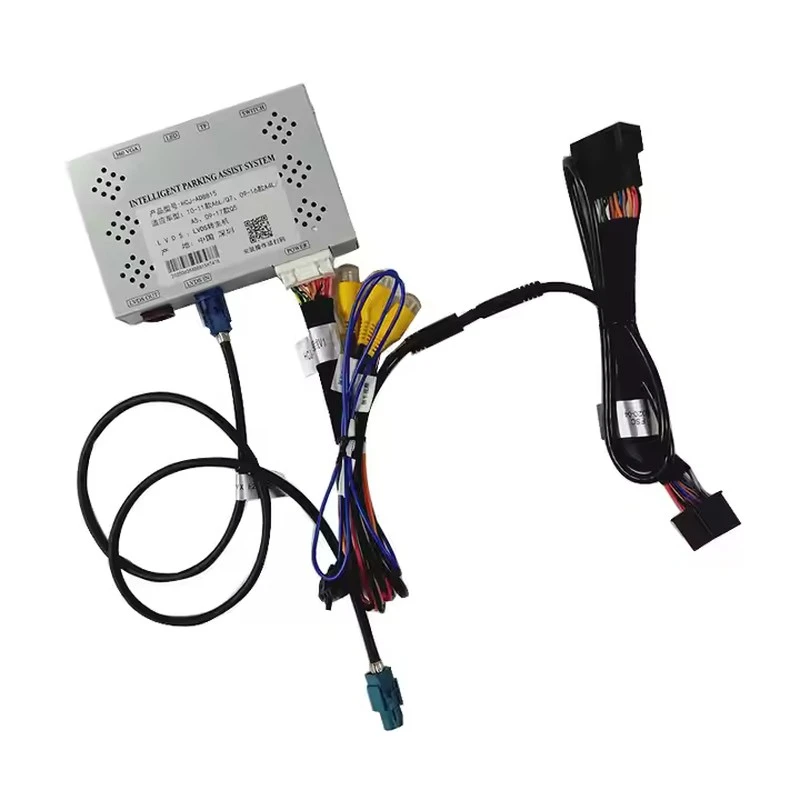

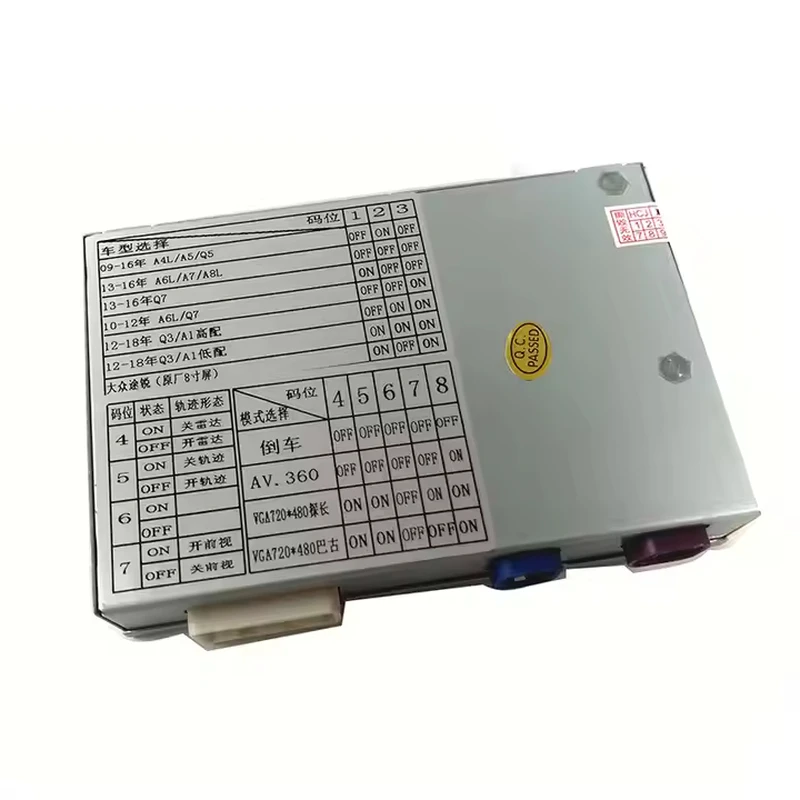

Product images
