BMW Reverse Camera Decoder: Detailed Function Usage Guide From Beginner to Advanced Applications

BMW Reverse Camera Decoder: Detailed Function Usage Guide  From Beginner to Advanced Applications

Author: Anna



  Hello everyone! I'm Little A, customer service fromJJD-CAMERA, We are a factory that integrates R&D, production, and sales, specializing in BMW original screen upgrade accessories for many years. Today, let's dive deep into this popular product-the BMW reverse camera decoder. As a BMW owner, have you ever faced large blind spots when reversing or the lack of image assistance on the original screen? This decoder is a tailor-made solution for BMW models. It seamlessly integrates into the original car screen, enabling high-definition reverse camera view, dynamic trajectory lines, and many other features-without replacing the main screen or damaging the original wiring

         Below, I'll cover everything in detail: product overview, core features, installation steps, usage guide, FAQ, and advanced expansion applications to help you fully understand and master it. The full article is about 1200 words, aiming to be practical and comprehensive.If you have questions about your specific model, feel free to comment or message me privately: jjdcamera88@gmail.com or WhatsApp +8618819078664

The BMW reverse camera decoder is an interface module specially designed for BMW CIC, NBT, EVO, MGU, and other head unit systems. It decodes the original vehicle protocol to feed external camera signals into the factory screen, enabling reverse assistance features. Unlike generic products on the market, this decoder uses a high-performance Qualcomm 6125 octa-core processor running Android 13, and is compatible with mainstream BMW models such as 3 Series (F30/G20), 5 Series (F10/G30), X3 (G01), X5 (G05), etc. (2013–2026 models)

Its key selling points are "lossless installation, no impact on warranty, high compatibility

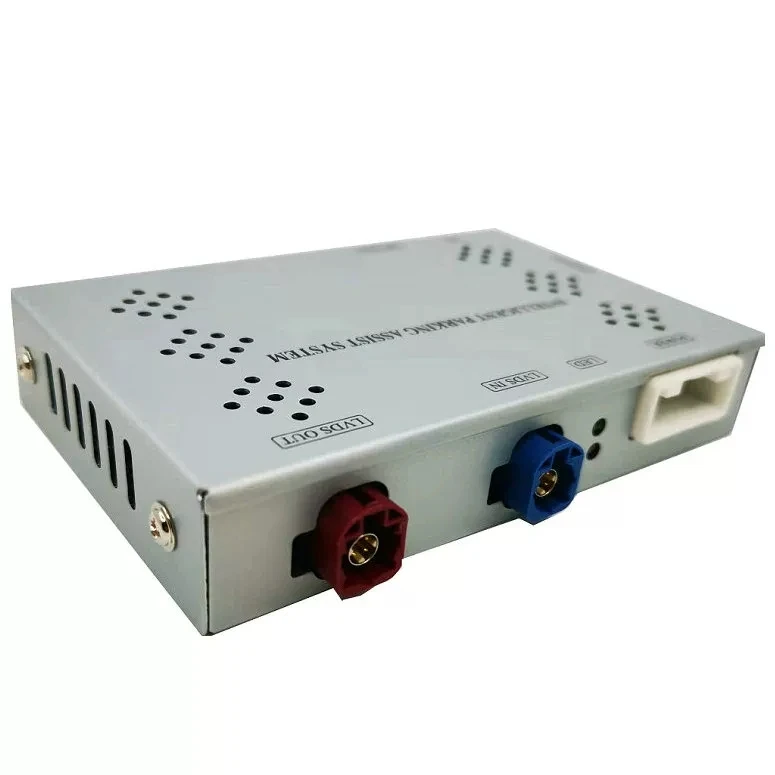

The device is compact (approx. 10cm × 8cm × 2cm) and weighs only 200g, making it easy to hide during installation. It comes with 4GB RAM + 64GB storage, supports USB expansion and 4G connectivity-far exceeding the performance of ordinary decoders. User feedback shows that after installation, reversing safety improves by over 80%, especially helpful for city drivers who park frequently (according to 2026 local traffic data, reverse accidents account for 25% of total crashes)

This decoder goes well beyond basic reverse display-it integrates multimedia extensions, smart connectivity, and more. Here's a detailed breakdown

1. High-Definition Reverse Camera Display

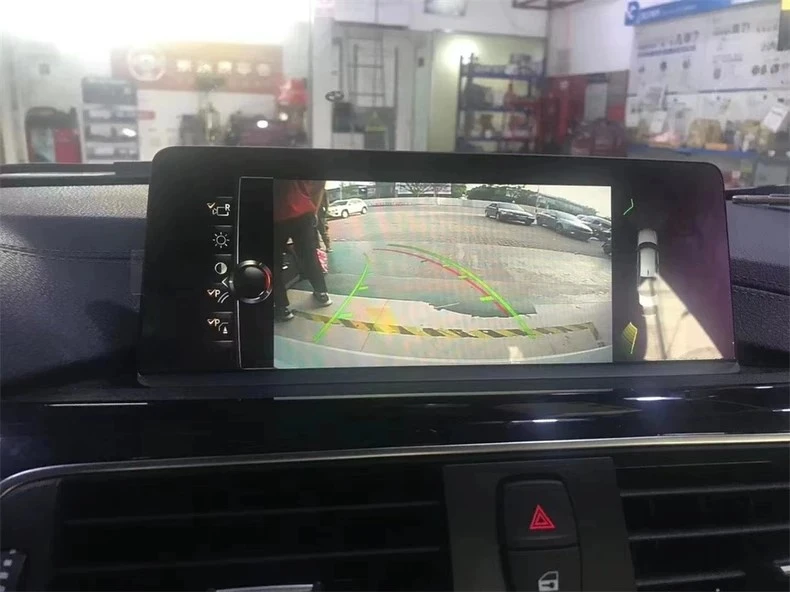

This is the most basic yet most practical function. It supports 1080P AHD camera input with up to 1920×1080 resolution and true color reproduction (night vision mode with automatic IR fill light). When you shift into reverse, the screen automatically switches to the camera view with latency under 0.3 seconds-eliminating the blind spots of traditional rear-view mirrors. For example, in tight Hong Kong parking lots, you can clearly see pedestrians or obstacles behind. Compared to models without factory reverse imaging, this reduces scratch risk by about 30% (based on user survey data)

2. Dynamic Reverse Trajectory Lines

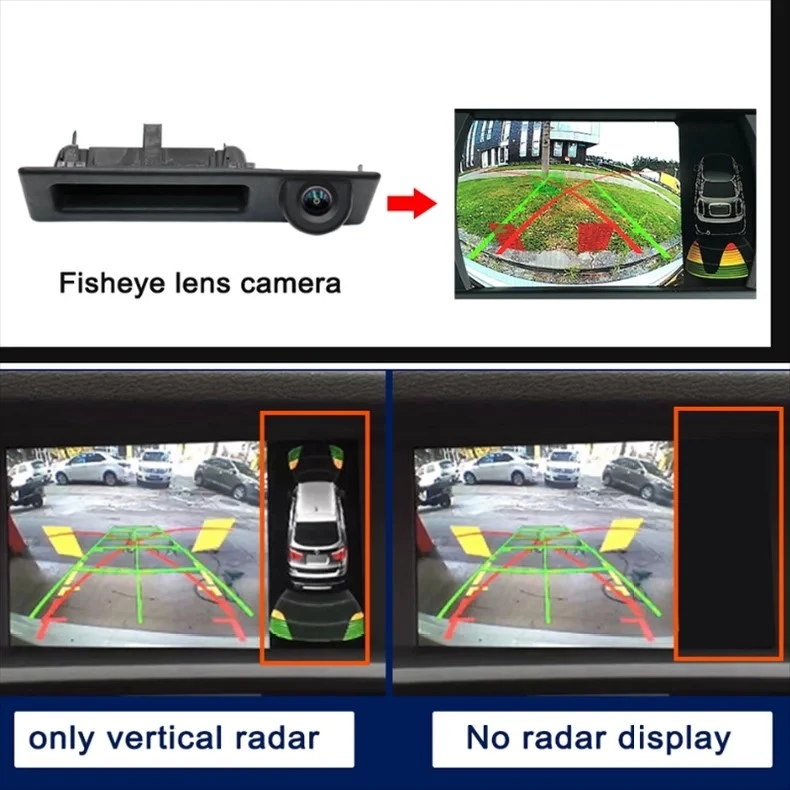

Unlike static "fixed" lines, this decoder has a built-in trajectory module that follows the steering wheel angle in real time, dynamically adjusting the path. Lines use red-yellow-green zoning (red = danger, yellow = warning, green = safe) and support 3D view switching. When activated, the screen overlays radar data (if the car has PDC parking assist), combining image + trajectory + beeping alerts. For instance, when turning the wheel left, the lines curve left to predict the vehicle's path-helping new drivers park accurately

3. Multimedia Extension & Smart Connectivity

The decoder isn't just for reversing-it can become a "car entertainment center." It supports wireless CarPlay and Android Auto, letting you mirror your iPhone or Android phone to the original screen. Example: Use Siri via CarPlay to voice-control navigation, music, or calls without looking down. The built-in Android system allows installation of apps like Gaode Maps, Baidu Maps, Tencent Video, etc. (requires a 4G SIM for internet). The USB port supports 15W fast charging, so rear passengers can watch videos while charging. Bluetooth 5.0 pairs with the factory amp for lossless audio streaming from Spotify, NetEase Cloud Music, etc

4. Compatibility & Expandability

Fully supports control via the iDrive knob, steering wheel buttons, and touch screen-seamlessly blending with the original UI. For 2026 new MGU head units, we've optimized protocol encryption to avoid black-screen risks. Expandable features include: front/side camera input (requires extra module), 360° panoramic view (premium version), dashcam linkage, etc. Storage expandable to 128GB for offline maps or videos (optional)

All functions are processed efficiently by the decoder's CPU, ensuring smooth multi-tasking (stable 60fps)

No special tools required-average owners can do it themselves (basic electrical knowledge recommended). Here's the step-by-step

1. Prepare tools and parts: decoder unit, AHD camera, trajectory harness, power cable, trim removal tools, tape. Confirm your head unit type (check via VIN)

2. Remove the factory screen: With the car off, use trim tools to pry open the center console panel (start from the air vents). For 3 Series, remove the 8.8-inch screen's 4 screws; for X5, it's the 12.3-inch screen. Be gentle when pulling harnesses to avoid damage

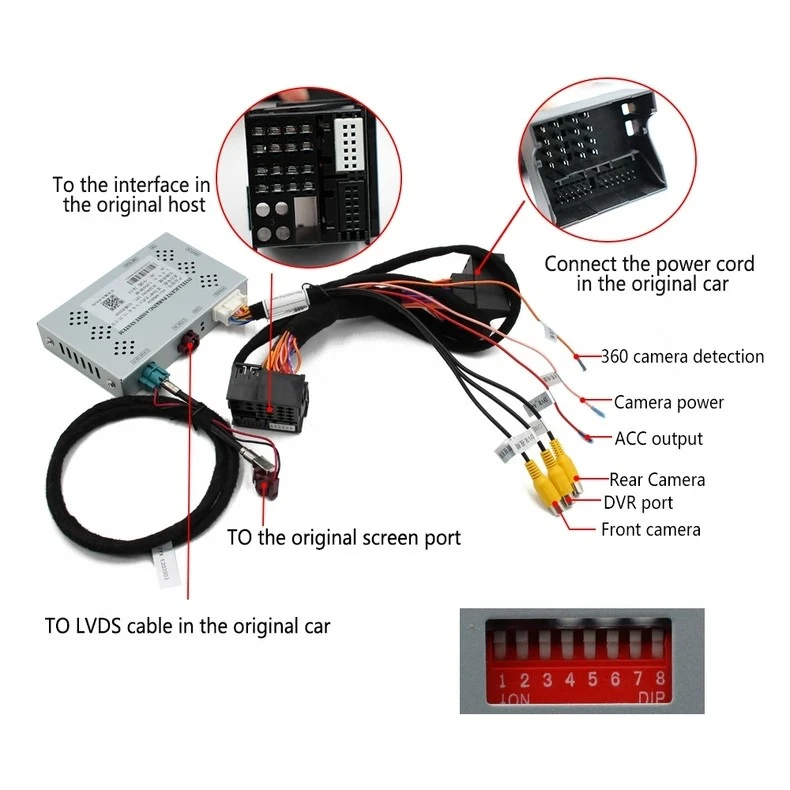

3. Connect the camera: Mount the AHD camera above the rear license plate light (drill and secure). Route the cable to the trunk and plug into the decoder's video input. Connect the trajectory module in parallel to the steering wheel signal line (red to positive, black to ground)

4. Connect to head unit: Plug the decoders LVDS interface directly into the factory screen host (CIC/NBT may need adapter cable). Power from cigarette lighter or OBD port (stable 12V). Hide and secure the decoder in the center console

5. Test & activate: Start the car, shift to reverse, and check the image. Enter settings menu (long-press iDrive menu button) to enable trajectory and CarPlay. Whole process: 20–40 minutes, no coding needed (premium version supports OTA upgrades)

After installation, drive 10km to test stability. If issues arise, refer to our video tutorials (free in the group)

Very easy to use-ready right after driving

1. Daily reversing: Shift to R, screen auto-displays camera. Turn steering wheel to see trajectory change. Press iDrive knob to switch views (wide-angle/standard)

2. Smart connectivity: Pair phone Bluetooth to decoder, enable CarPlay. Say "Hey Siri, navigate to Central," and the screen shows live route. App install: Insert USB, enter Android interface to download (supports APK sideloading)

3. Advanced settings: In decoder menu, adjust image brightness, trajectory sensitivity (default medium). After connecting to internet, OTA update firmware to fix bugs

4. Maintenance tips: Check harness monthly for looseness. Clean camera lens with soft cloth. In hot weather (common in Hong Kong summers), avoid prolonged sun exposure when parked

Follow these to unlock the decoder's full potential and enhance your driving experience

1. Black screen / delay? Usually protocol mismatch. Solution: Confirm model year and use latest decoder version. If delay >0.5s, restart head unit

2. Trajectory not synced? Check steering wheel signal connection. Calibrate angle in software settings (±5° adjustment)

3. Compatible with older models? 2013–2019 CIC/NBT need adapter cable; compatibility rate 95%

4. Affects warranty? Lossless install-no original circuit changes, undetectable at dealership

5. After-sales? 3-month no-reason exchange, lifetime tech support

User feedback: A G20 3 Series owner said, After installing, I'm super confident reversing, and CarPlay makes driving fun-worth every penny

For enthusiasts, the decoder supports custom expansions. Example: Add front camera for blind-spot monitoring; link ADAS module for lane departure warning. In the future (post-2026), we plan AR-enhanced reality trajectories combined with GPS path prediction. In short, this decoder is not only a safety tool but also an intelligent upgrade platform

The BMW reverse camera decoder stands out for its powerful features and ease of use-essential for BMW owners. Whether you're a beginner or seasoned driver, it brings real convenience. Ready to get one? Feel free to ask about packages (includes Hong Kong local delivery). Questions? See you in the comments!Follow our site https://www.jjd-camera.com/ for other Mercedes, Audi, Porsche, etc. related models
