Key Highlights

• CAN-Bus decoder synchronizes with door/gear status
• 720P HD imaging with adaptive low-light enhancement
• License lamp replacement design (IP68 waterproof)
• Voltage-stabilized anti-interference circuitry

Product Details

Technical Specifications

Parameter	Description
Compatibility	2012-2013 Mercedes-Benz C200 (W204 chassis with factory screen)
Signal Type	CVBS Analog
Resolution	1280×720 @ 30fps
Viewing Angle	150° wide-angle (vertically adjustable)

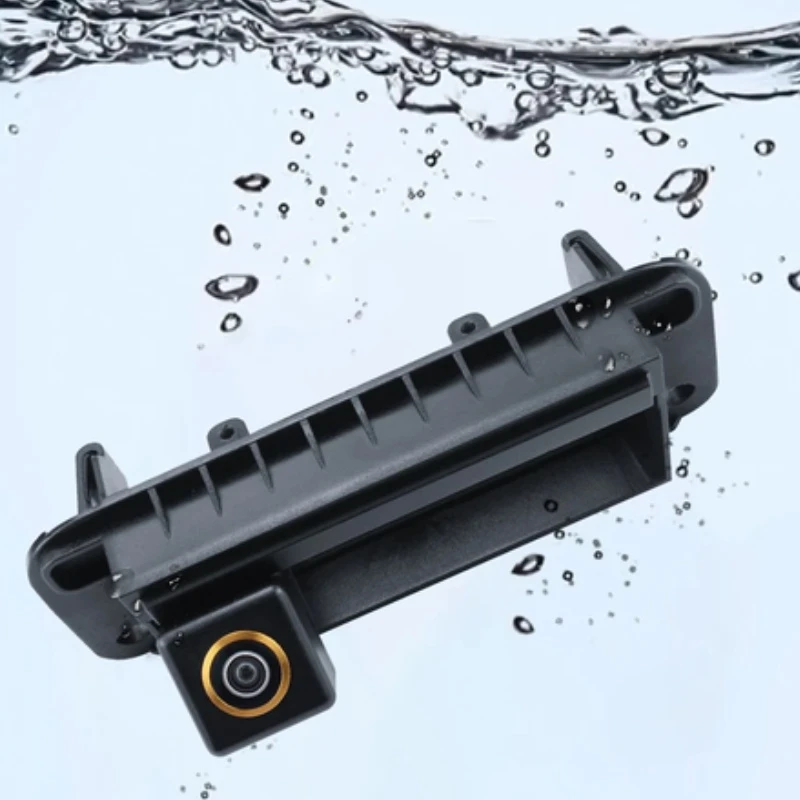

Waterproof Rating	IP68-rated housing (submersion-proof up to 1.5m/1hr)
Installation Position	Left license plate lamp replacement (retains right-side illumination)
Warranty	12-month camera warranty

Core Functionality

A. Night Vision Optimization

• Light-sensitive CMOS auto-adjusts gain:
▶ 2x brighter than standard analog cameras in <5 lux conditions
▶ Infrared-cut filter reduces LED glare from traffic signals

B. Dynamic Guidance System

• Color-coded distance grid synchronized with reverse gear:
▶ Green (1.5m) – Safe maneuvering zone
▶ Yellow (0.8m) – Caution threshold
▶ Red (0.3m) – Immediate stop required

C. Protocol-Level Compatibility

• Decoder communicates via CAN-Bus to:
▶ Disable video feed upon door opening
▶ Maintain original parking sensor beep logic
▶ Prevent battery drain (auto-sleep mode)

Installation Guidelines

1. Camera Assembly

• Pry off left license plate lamp (tool included)
• Install camera bracket with integrated LED lighting

2. Wiring Routing

• Route video cable through trunk lining to head unit
• Connect decoder to quadlock interface behind dashboard

3. Power Management

• Tap reverse light circuit via T-harness connector
• Decoder integrates 9-16V voltage regulator

Package Options

Kit Type	Components	Target Users
Basic	Camera + mounting kit	Existing decoder owners
Complete (Recommended)	Camera + decoder + Mercedes-specific tools	First-time installers
