Key Highlights
• SUV-optimized vertical tilt adjustment (±15°) for ground obstacle detection
• 1080P resolution with WDR night vision enhancement
• IP68 waterproof construction & plug-and-play installation
• Synchronized parking radar alerts via CAN protocol
Product Details
Technical Specifications
|
Parameter |
Description |
|
Compatibility |
2012/2013/2015 Mercedes-Benz GLK300 (all trims, decoder required) |
|
Signal Type |
CVBS Analog |
|
Resolution |
1920×1080 @ 30fps |
|
Viewing Angle |
170° ultra-wide-angle (vertical tilt adjustable) |
|
Waterproof Rating |
IP68-rated housing (submersible up to 1.5m for 30 minutes) |
|
Installation Position |
OEM license plate lamp housing replacement (no-drill design) |
|
Guidance System |
Fixed tri-color distance grid |
|
Warranty |
24-month camera warranty |
System Architecture
① Camera Unit
• 6-layer glass lens with anti-glare coating
• Automotive-grade CMOS sensor (-40°C to +85°C operational)
② Decoder Module
• Mercedes-specific CAN protocol interpreter (supports NTG4.5/NTG5 head units)
• Built-in voltage stabilizer (9-16V input range)
Performance Advantages
A. SUV-Specific Engineering
• Vertical tilt mechanism compensates for high ground clearance (197mm on 2015 models):
▶ Displays area directly below rear bumper
▶ Eliminates low obstacle blind spots (e.g., curbs, debris)
B. Seamless Vehicle Integration
• Retains factory dashboard UI/UX logic:
▶ Auto-switches to camera view in Reverse gear (0.3s response time)
▶ Maintains original parking sensor beep patterns
C. All-Terrain Reliability
• Reinforced aluminum alloy bracket withstands off-road vibrations
• Self-cleaning lens coating repels mud/water droplets
Installation Protocol
1. Camera Assembly
• Remove OEM license plate lamp (5-minute tool-free process)
• Secure camera via pre-molded mounting points
2. Decoder Activation
• Connect to CAN-Bus behind dashboard (requires trim panel removal)
• Calibration via OBD-II port (pre-configured for GLK300 models)
Package Configuration
|
Option |
Components |
Recommended Scenario |
|
Basic Kit |
Camera + mounting hardware |
Decoder already available |
|
Pro Kit (Best Seller) |
Camera + decoder + OBD programming cable |
Full-system installation |
Critical Notes
- 2015 NTG5 head unit compatibility requires VIN verification before purchase
- Multi-screen output requires video splitter (sold separately)
FAQ
Q: Will this work with aftermarket Android head units?
A: Yes, provided the unit has CVBS input (most aftermarket systems include RCA ports).
Q: Can I adjust the distance grid colors?
A: The default tri-color system (Green=1.5m / Yellow=0.8m / Red=0.3m) is factory-calibrated and non-adjustable.
Q: Night vision range in complete darkness?
A: The camera detects obstacles up to 5m in zero-light conditions via IR-enhanced sensor.

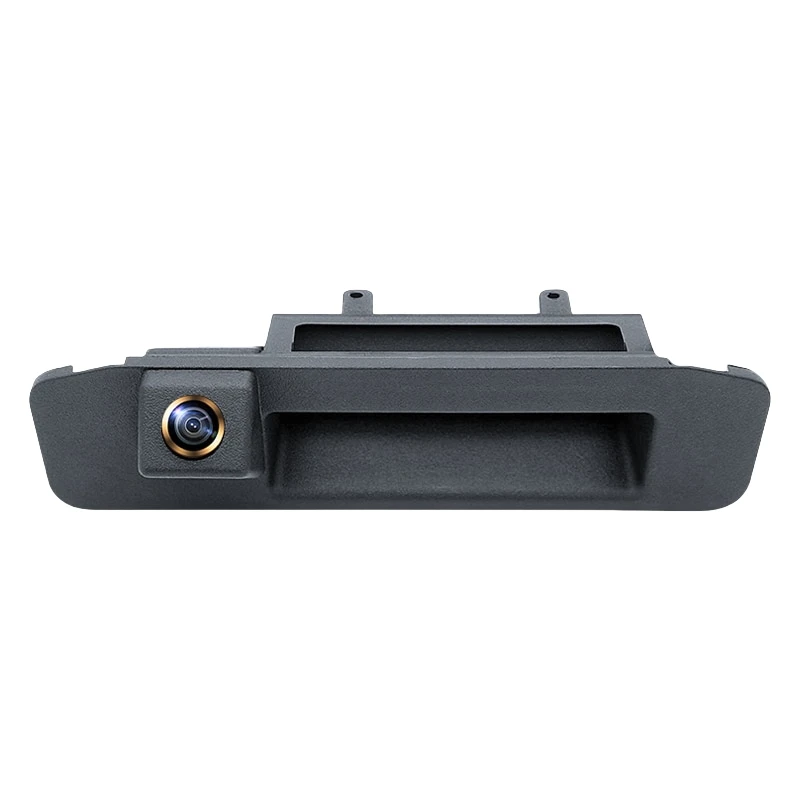

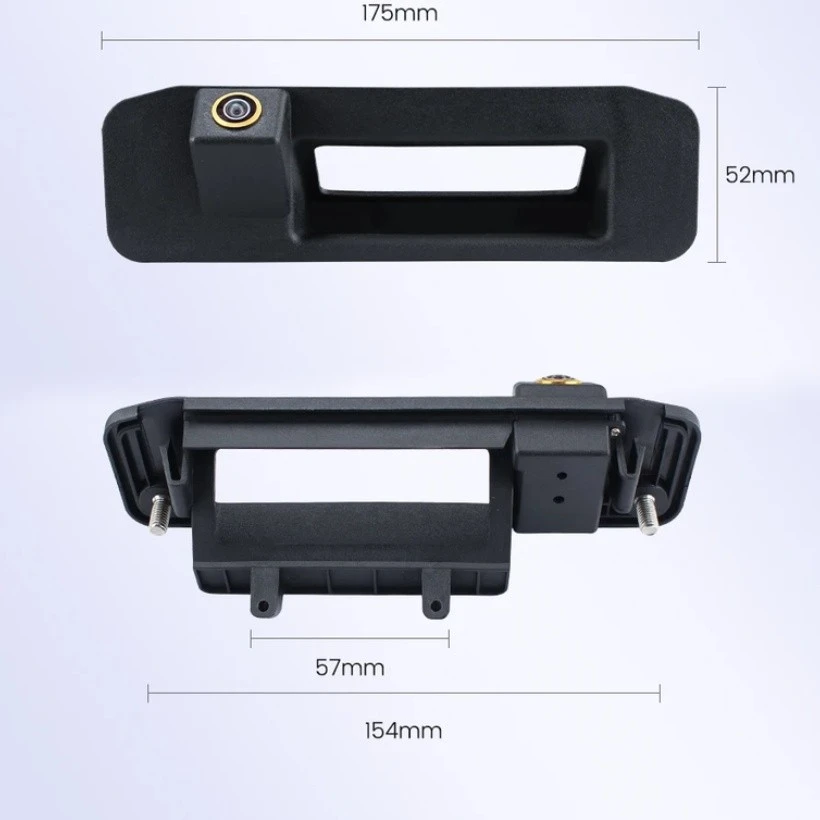

Product images
