Key Highlights

Dual-signal compatibility: CVBS analog (pre-facelift) / Digital HD (post-facelift)
Steering-responsive trajectory overlay (OBD-II integration)
Anti-aging wiring harness with voltage stabilization

Product Details

Technical Specifications

Parameter	Description
Compatibility	2010-2016 Mercedes E-Class (W212 chassis incl. E200/E260/E300/E350/E550)
Signal Type	Digital HD (2013+ facelift) / CVBS analog + decoder (2010-2012)
Resolution	1920×1080 (Digital) / 1280×720 (CVBS)
Viewing Angle	165° wide-angle (3-5m coverage)

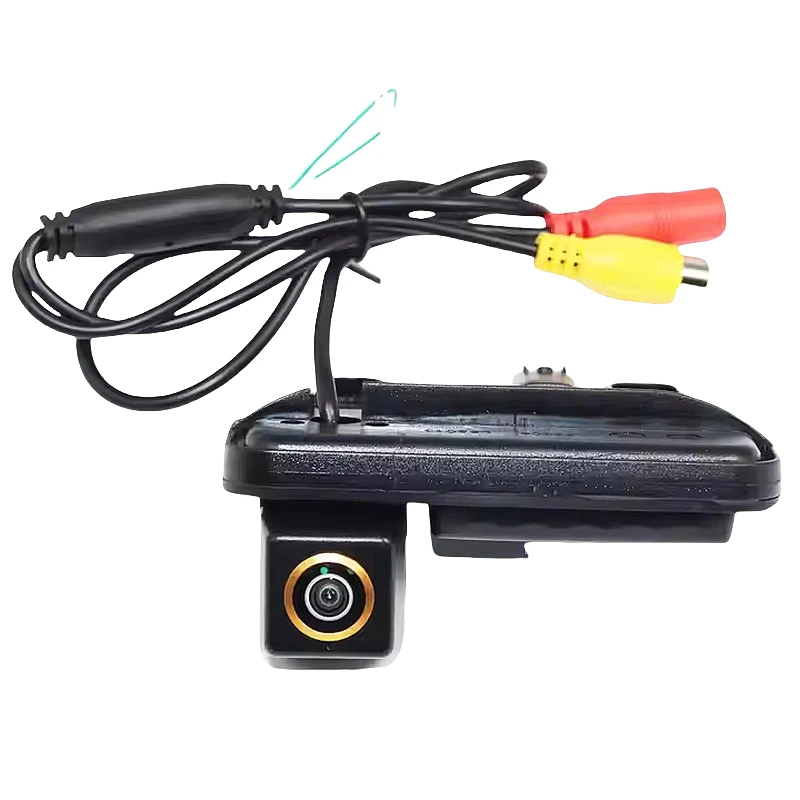

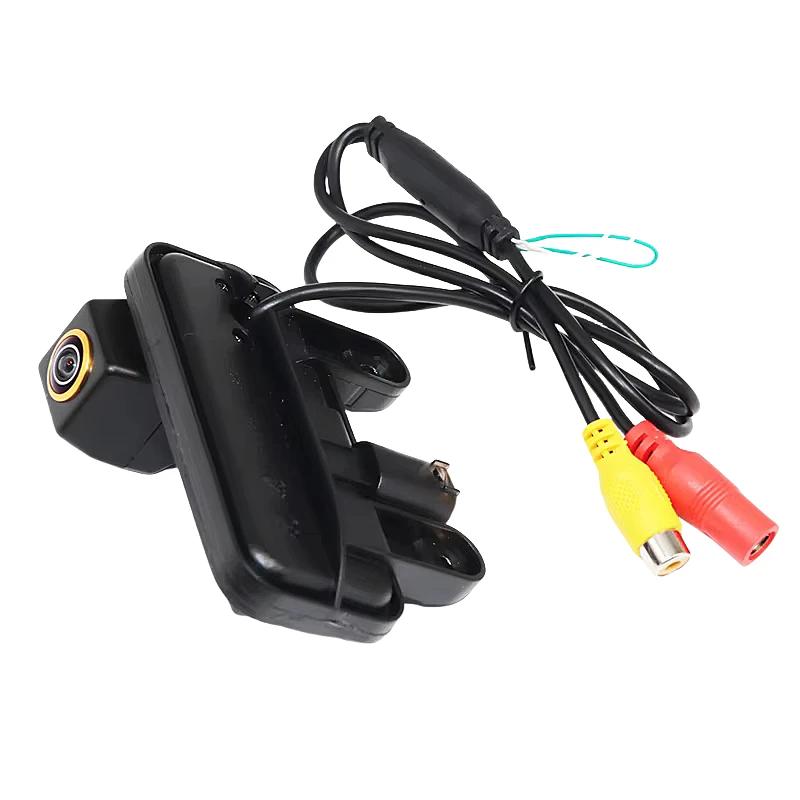

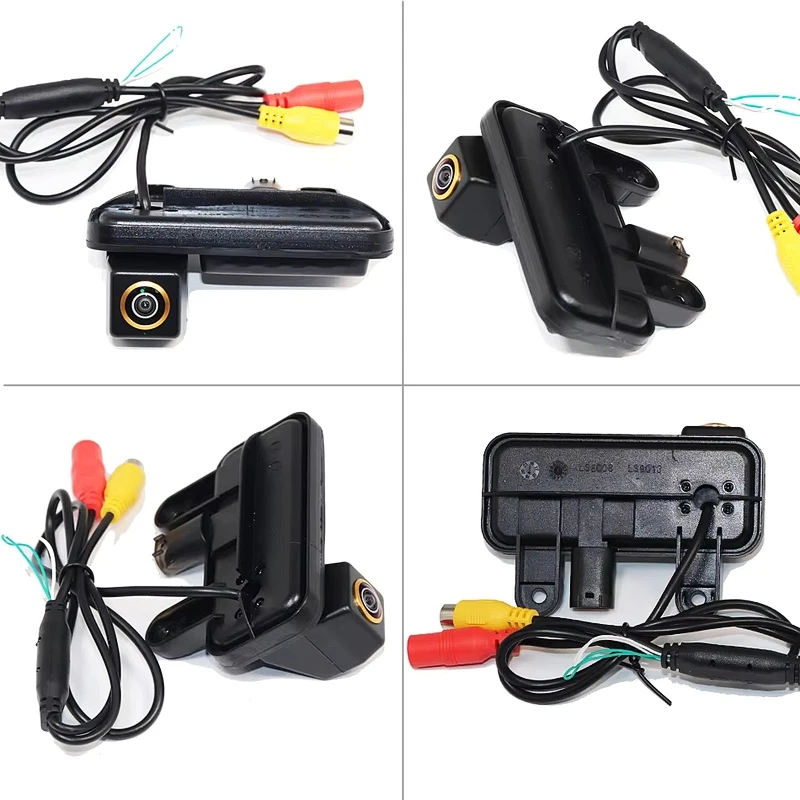

Installation Position	Factory-preferred locations: license lamp/trunk handle
Waterproof Rating	IP68 Dust/Water Resistance
Guidance System	Dynamic steering-linked trajectory lines
Warranty	1-year extended warranty

Phase-Specific Solutions

A. 2010-2012 Pre-Facelift Models
• Core Challenge: Factory screen video input lockdown
• Solution:
▶ W212-V1 Decoder Box: CAN protocol emulation + signal conversion
▶ Hidden installation behind trunk left trim panel
▶ Auto-wake screen upon reverse gear engagement

B. 2013-2016 Post-Facelift Models
• Core Challenge: Paywall-locked camera activation
• Solution:
▶ W212-V2 Protocol Box: OEM signal simulation bypassing software restrictions
▶ Steering signal integration via OBD-II port (dynamic grid adjustment)

Engineering Innovations

1. E-Class Optimized Optics
• Aspherical lens design minimizes distortion from extended rear overhang:
▶ 30% reduced edge warping vs standard wide-angle cameras
▶ Enhanced obstacle recognition within 0.5m of rear corners

2. Discreet OEM Integration
• Right-side license lamp replacement:
▶ Retains left-side factory illumination (road-legal compliance)
▶ Chrome housing matches original trim within 0.2mm tolerance

3. Legacy Vehicle Protection
• Multi-layer safeguards:
▶ Decoder-integrated voltage regulator (9-16V input range)
▶ Gold-plated connectors prevent oxidation in older wiring systems
▶ EMI-shielded cabling (105°C temperature rating)

Installation Advantages

Traditional Retrofit	Our Solution
Requires dealer-level programming	Physical protocol decoding (no coding)
Static trajectory lines	Steering-synced dynamic guidance
Visible aftermarket modifications	Factory-spec concealed installation

Package Configuration

Kit Type	Components	Target Application
Classic CVBS Kit	Camera + W212-V1 decoder + OBD adapter	2010-2012 models
Digital Direct Kit	HD Camera + W212-V2 protocol box	2013-2016 facelifts
Premium Upgrade	4K Camera + floating screen (10.25")	Screenless configurations

Critical Notes

Dynamic trajectory requires OBD-II signal tap (plug-and-play harness included)
2013+ models with factory 360° systems retain original functionality via video source switching
