Key Highlights
- B-Class: 170° ultra-wide coverage with vertical tilt adjustment (-10°)
- E-Class: Steering-synced dynamic grid + touchscreen compatibility
- Plug-and-play integration preserving OEM warranties
Products Description
Technical Specifications
|
Parameter |
B-Class (W246) |
E-Class (W213) |
|
Compatibility |
2016-2019 B180/B200/B250 |
2017-2020 E200/E300/E450 (incl. wagons) |
|
Signal Type |
CVBS analog + B-Class decoder |
Digital HD (2018+) / CVBS + decoder |
|
Resolution |
1280×720 |
1920×1080 (Digital) / Low-light optimized |
|
Viewing Angle |
170° ultra-wide (+vertical tilt) |
160° wide-angle + dynamic trajectory |
|
Installation |
Left license lamp replacement |
Factory-preferred positions |
|
Waterproof Rating |
IP68-rated |
Rust-proof metal bracket |
|
Special Features |
±10° vertical adjustment |
Touchscreen gesture controls (Digital) |
|
Warranty |
1-year (camera + decoder) |
1-year camera coverage |
Model-Specific Engineering
A. B-Class (2016-2019)
• Problem Solved: High MPV blind spots beneath rear bumper
• Technical Breakthroughs:
▶ -10° downward tilt reveals 30cm ground clearance zone
▶ Multi-layer signal amplifier counters electromagnetic interference from power tailgates
B. E-Class (2017-2020)
• Problem Solved: Premium parking experience demands
• Technical Breakthroughs:
▶ Dynamic grid syncs with steering angle (0.5° precision)
▶ Anti-glare coating reduces license plate reflection by 60%
Core Feature Comparison
|
Feature |
B-Class Solution |
E-Class Solution |
|
Blind Spot Coverage |
Adjustable vertical tilt |
Dynamic trajectory prediction |
|
Signal Integrity |
EMI-shielded CVBS booster |
Dual-twisted-pair digital transmission |
|
Aesthetic Integration |
Seamless license lamp replacement |
Factory-spec hidden routing |
|
Expandability |
Right-side blind spot camera support |
360° surround view compatibility |
Installation Innovations
B-Class Exclusive:
• Tool-free hinge conduit routing:
▶ Follows OEM wire harness path through tailgate corrugated tube
▶ Zero interior trim removal required
E-Class Exclusive:
• Digital models: Direct FAKRA connector to NTG5.2 head unit
• Steering signal acquisition:
▶ OBD-II splitter taps CAN bus at steering column (pin 6/14)
▶ Maintains original wire insulation integrity
Package Options
|
Kit Type |
Components |
Target Application |
|
B-Class Essential |
Camera + decoder + tilt toolkit |
W246 MPV models |
|
E-Class Digital Pro |
HD Camera + OBD splitter + trim tools |
2018+ W213 sedans |
|
E-Class CVBS Legacy |
Low-light camera + decoder box |
Pre-2018 Command systems |
Critical Notes
- B-Class tilt mechanism withstands 5000+ adjustment cycles
- E-Class dynamic grid requires initial OBD-II calibration (guide included)
FAQ
Q: Compatibility with 2019 E450 4MATIC with factory 360° system?
A: Fully compatible. Use video source switching via steering wheel controls.
Q: How to maintain license plate lighting on B-Class?
A: Right-side factory lamp remains operational; camera integrates dual-function LED (illumination + backup light).
Q: Warranty coverage for E-Class touchscreen compatibility?
A: Digital models guarantee touch functionality when using Mercedes-certified displays.

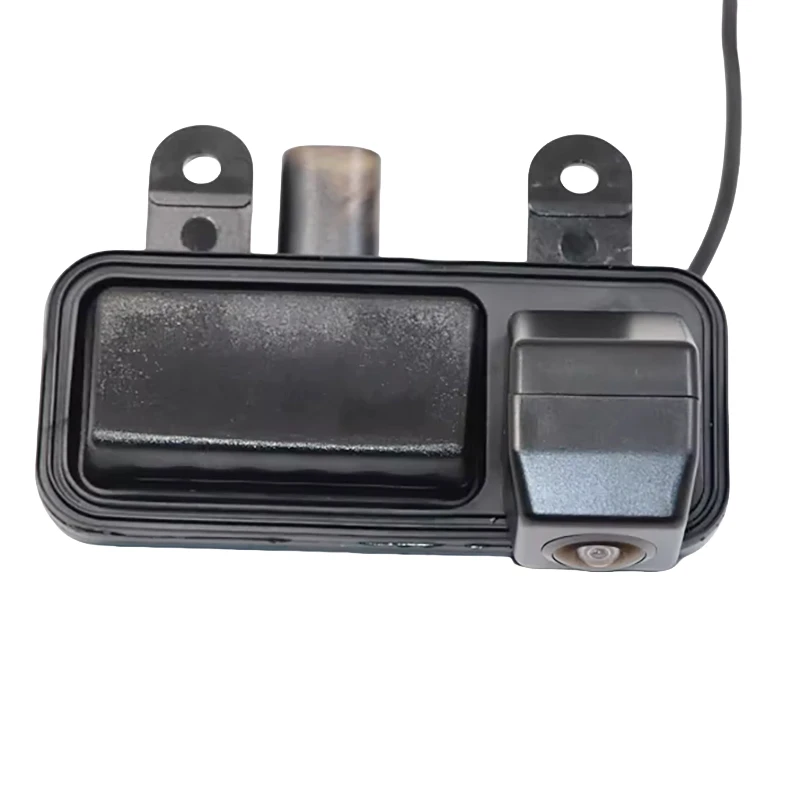

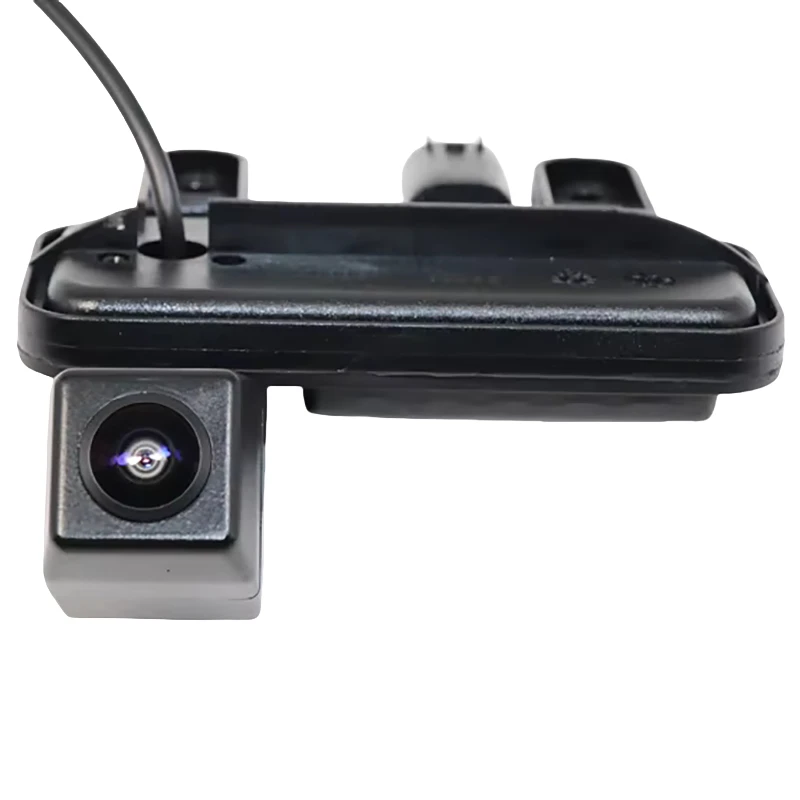

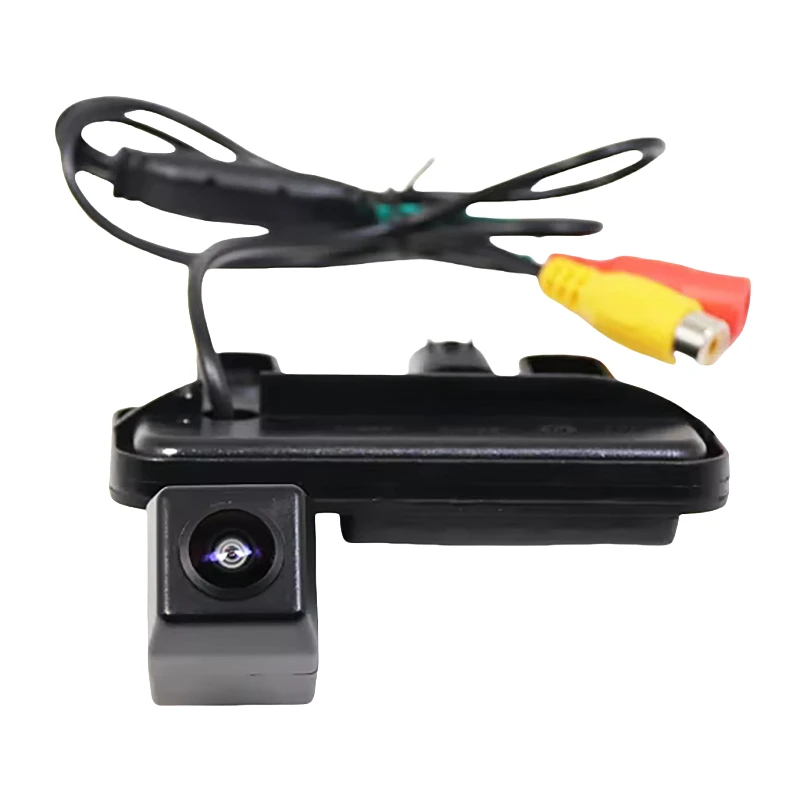

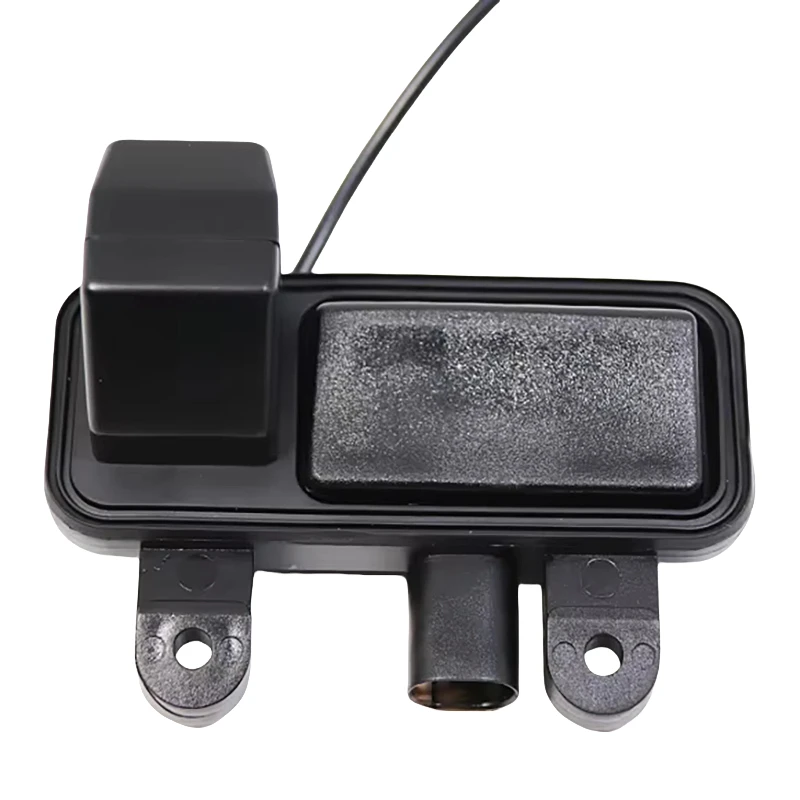

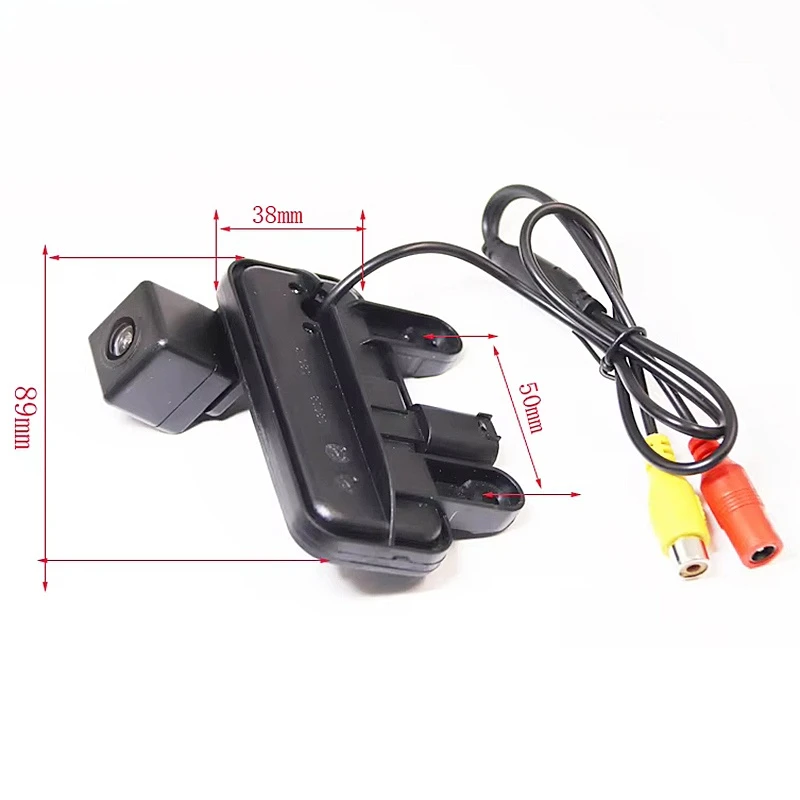

Product images
