Key Features

CAN-Bus decoder compatibility for radar/UI synchronization
720P HD imaging with 150° wide-angle coverage
IP67 waterproof housing & plug-and-play harness
WDR-enhanced night vision & glare suppression

Product Details

Specifications

Parameter	Description
Compatibility	2012-2014 Mercedes-Benz B180/B200 (W246 chassis)
Video Signal	CVBS Analog (Composite Video)
Resolution	1280×720 @ 30fps
Viewing Angle	150° diagonal
Waterproof Rating	IP67 (submersion-proof up to 1m/30min)
Power Input	12V DC via reverse light circuit
Warranty	12-month camera warranty

System Requirements

Mandatory decoder for CAN protocol communication (MB-B-Class/CVBS-AVD01 recommended)

Factory screen with dormant video input capability

Installation Guidelines

① Camera Positioning

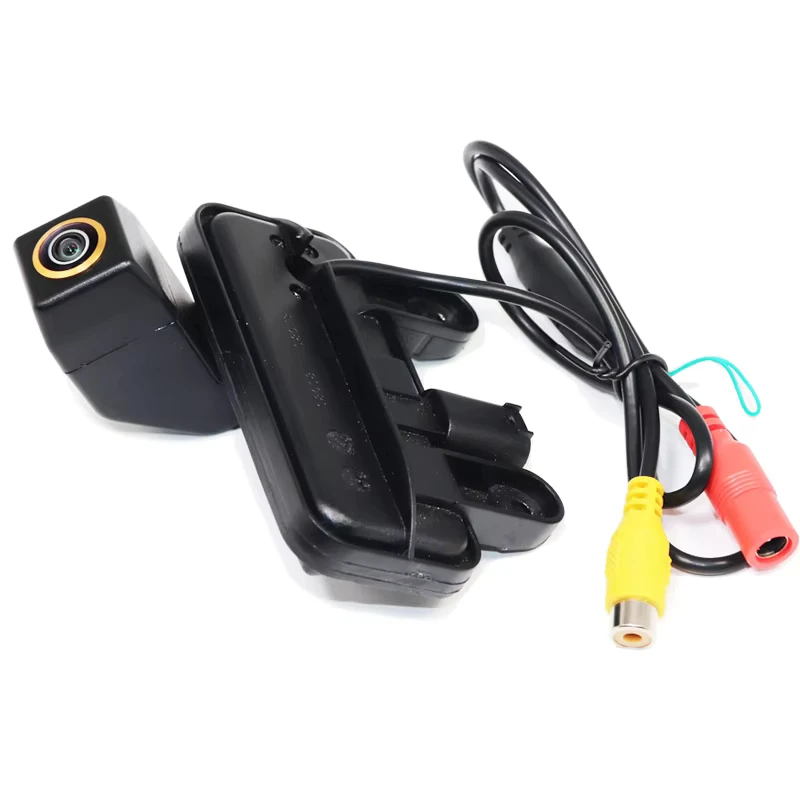

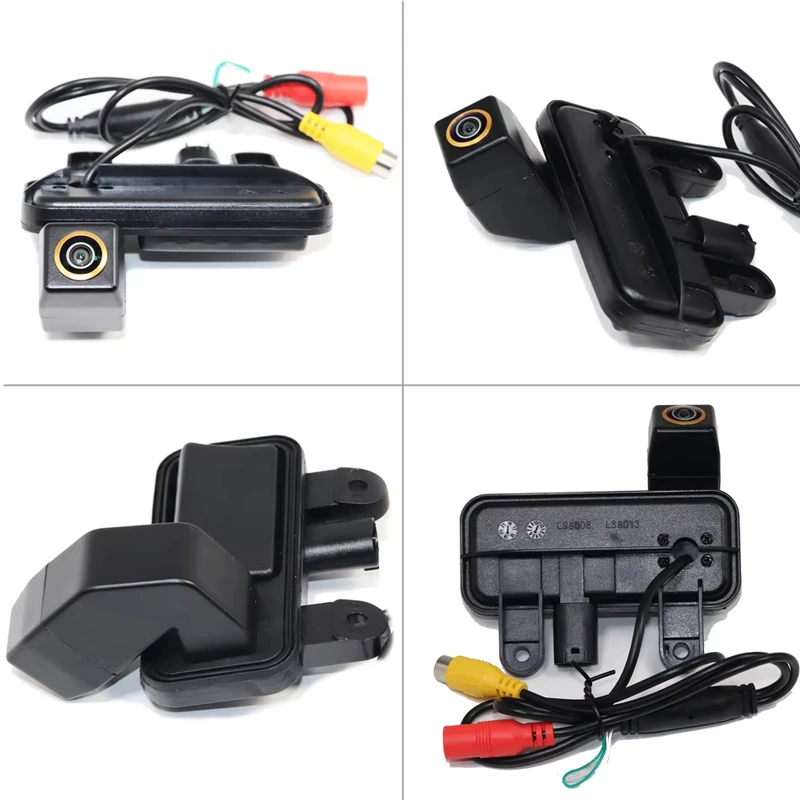

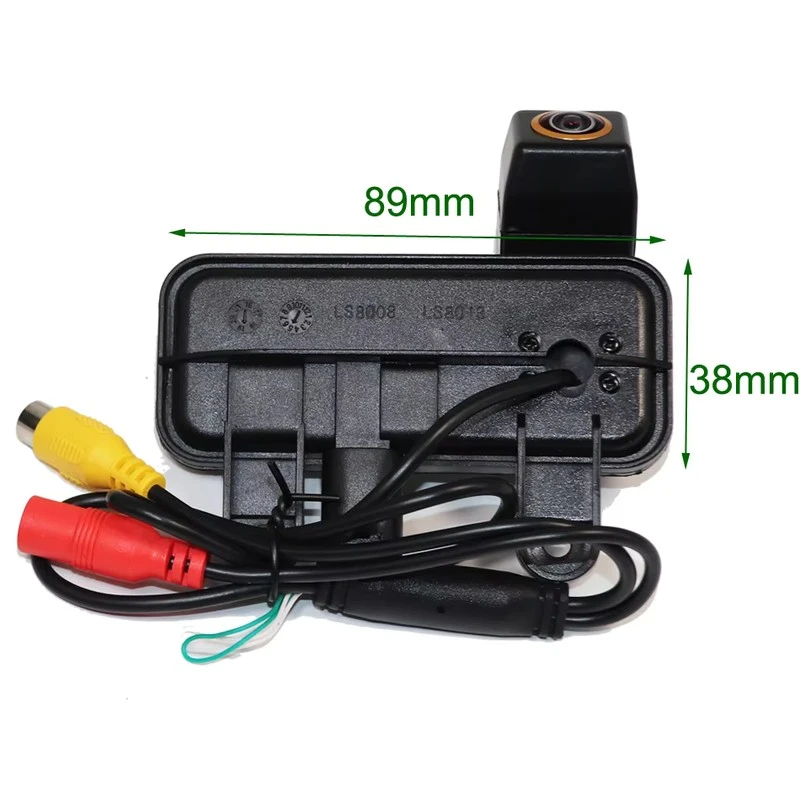

Direct replacement of OEM trunk handle/license plate lamp housing

Zero drilling required; uses existing mounting points

② Decoder Integration

Connects to CAN bus behind glovebox/central console (professional installation advised)

Enables:
• Reverse gear auto-trigger
• Parking radar overlay on video feed
• Vehicle data synchronization

Performance Advantages

A. OEM-Level Integration

• Preserves factory UI/UX with dual guidance system:
▶ Dynamic parking radar grid
▶ Fixed trajectory lines
• Silent operation (no audible interference)

B. All-Weather Reliability

• -20°C to +70°C operating temperature range
• Hydrophobic lens coating prevents water droplet adhesion

C. Upgrade Flexibility

• Decoder supports auxiliary AV inputs for forward/side cameras (expansion-ready)

Package Options

Option	Components Included	Recommended For
Basic Kit	Camera + mounting hardware	Users with existing decoder
Premium Bundle (Best Value)	Camera + MB-B-Class decoder + full wiring	First-time installers

Technical Notes

Signal verification required for non-factory screens (aftermarket units may need signal converters)
Decoder firmware upgradable via OBD-II port (v2.0+ supports multi-camera switching)

FAQ

Q: Will installation void my factory warranty?

A: No. This non-invasive solution doesn't alter OEM electrical architecture when professionally installed.

Q: Night vision performance compared to digital cameras?

A: While 720P CVBS has lower resolution than HD digital systems, our WDR optimization delivers superior low-light clarity versus standard analog cameras.

Q: Compatibility with rearview mirror displays?

A: Requires additional analog-to-digital converter (sold separately).
